Discontinued

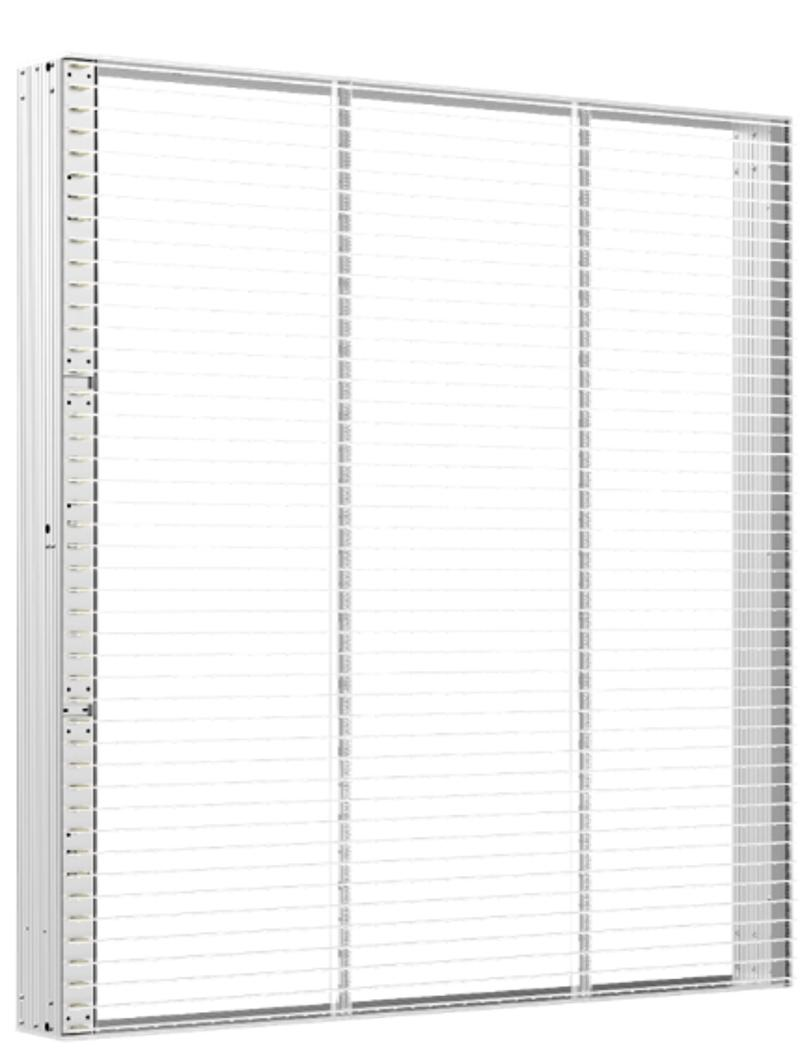

High Brightness Transparent LED

  • Standardized cabinet for flexible installation, multi-screen seamless splicing with light and thin design, and convenient for quick installation.
  • Permeability-oriented material selection and design, no influence on the original building appearance.
  • Brightness customizable on the basis of specific scenarios, ensuring the display effects even under the highlight indoor or the direct sunlight outdoor.
  • Runs silently with lower heat and effective heat dissipation.
View Less
View more
Sales Inquiry

Available models:

DS-D4439TI-SHC，1m×1m/Box，5500cd/㎡
DS-D4439TI-SHC Discontinued

Specification

  • Cabinet
  • Pixel Configuration1R1G1B
  • Pixel PitchHorizontal: 3.9 mm, Vertical: 7.8 mm
  • Dimensions (W × H × D)Different dimensions for flexible splicing: 1 m × 1 m, 1 m × 0.75 m, 0.75 m × 1 m, 0.75 m × 0.75 m, 1 m × 1.25 m, 1.25 m × 1 m
  • 15 kg/㎡
  • Pixel Density32768 dot/㎡
  • Cabinet MaterialAluminum alloy
  • Protection LevelIP43
  • Display
  • White Balance Brightness5500 nit (highlight)
  • Color Temperature2000K to 10000K adjustable
  • Viewing Angle120° (H)/120° (V)
  • Brightness Uniformity≥ 98%
  • Color Uniformity±0.001 Cx, Cy
  • Contrast Ratio≥ 3000:1
  • Transmittance60%
  • Display Color281.4 trillion
  • Processing Performance
  • Brightness ControlManual/Auto
  • Driving MethodConstant current driving 1/4 scan
  • Frame Frequency60 Hz
  • Refresh Rate≥ 1920 Hz
  • Grey Level65536 Level
  • Processing Depth16 bits
  • Power
  • Max. Consumption800 W/㎡
  • Average Consumption300 W/㎡
  • Input Voltage110 to 220 VAC ± 15%
  • Working Environment
  • Working Temperature-10 ℃ to 65 ℃ (14 ℉ to 149 ℉)
  • Working Humidity10% to 90%
  • Storage Temperature-20 ℃ to 90 ℃ (-4 ℉ to 194 ℉)
  • Storage Humidity10% to 90%
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Cabinet
Pixel Configuration
1R1G1B
Pixel Pitch
Horizontal: 3.9 mm, Vertical: 7.8 mm
Dimensions (W × H × D)
Different dimensions for flexible splicing: 1 m × 1 m, 1 m × 0.75 m, 0.75 m × 1 m, 0.75 m × 0.75 m, 1 m × 1.25 m, 1.25 m × 1 m
15 kg/㎡
Pixel Density
32768 dot/㎡
Cabinet Material
Aluminum alloy
Protection Level
IP43
Display
White Balance Brightness
5500 nit (highlight)
Color Temperature
2000K to 10000K adjustable
Viewing Angle
120° (H)/120° (V)
Brightness Uniformity
≥ 98%
Color Uniformity
±0.001 Cx, Cy
Contrast Ratio
≥ 3000:1
Transmittance
60%
Display Color
281.4 trillion
Processing Performance
Brightness Control
Manual/Auto
Driving Method
Constant current driving 1/4 scan
Frame Frequency
60 Hz
Refresh Rate
≥ 1920 Hz
Grey Level
65536 Level
Processing Depth
16 bits
Power
Max. Consumption
800 W/㎡
Average Consumption
300 W/㎡
Input Voltage
110 to 220 VAC ± 15%
Working Environment
Working Temperature
-10 ℃ to 65 ℃ (14 ℉ to 149 ℉)
Working Humidity
10% to 90%
Storage Temperature
-20 ℃ to 90 ℃ (-4 ℉ to 194 ℉)
Storage Humidity
10% to 90%
