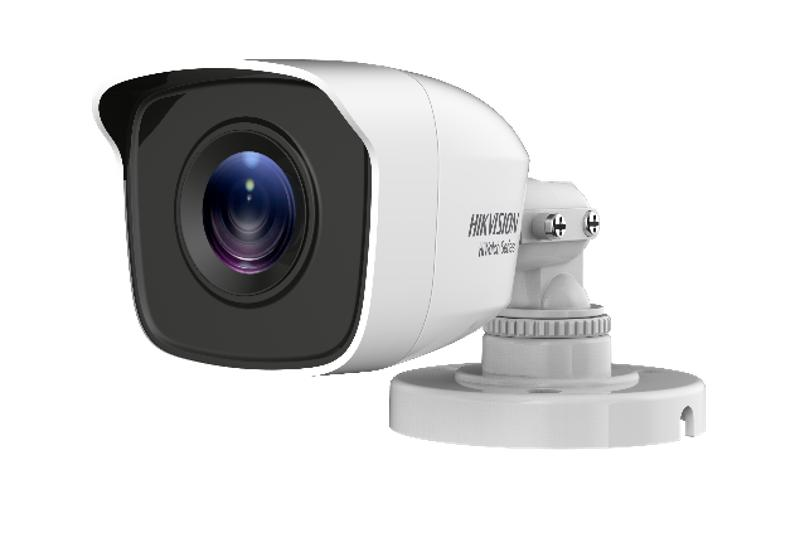

2 MP Fixed Mini Bullet Camera

1080p bullet camera
Smart IR, up to 20 m IR distanceWater and dust resistant (IP66)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

View Less

Available models:

HWT-B120-PC(2.8mm)(KOR UBSMART)

HWT-B120-PC(3.6mm)(KOR UBSMART)

HWT-B120-PC#Asia

Specification
Resources
Accessories

Camera
Image Sensor2 MP CMOS image sensor
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.02 Lux@(F2.0, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & NightIR Cut Filter
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°

Lens
Lens TypeFixed focal lens, 2.8 mm and 3.6 mm optional
Focal Length & FOV2.8 mm, horizontal FOV: 96.5°, vertical FOV: 48.9°, diagonal FOV: 120.5° 3.6 mm, horizontal FOV: 76.9°, vertical FOV: 40.6°, diagonal FOV: 92.0°
Lens MountM12

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 20 m

Image Parameters SwitchSTD/HIGH-SAT
Image SettingsAGC;Brightness;Smart IR;Mirror;Sharpness
Frame RatePAL: 1080p @ 25 fps NTSC: 1080p @ 30 fps
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementDWDR;BLC
Noise Reduction2D DNR

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS

General
Power12 VDC ±15%, Max. 2.1 W
MaterialPlastic
Dimension165 mm × 62 mm × 58 mm (6.50" × 2.44" × 2.28")
400 g (0.88 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)

Approval
ProtectionIP66

Camera

Image Sensor

2 MP CMOS image sensor

Max. Resolution

1920 (H) × 1080 (V)

Min. Illumination

0.02 Lux@(F2.0, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

Day & Night

IR Cut Filter

Angle Adjustment

Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°

Lens

Lens Type

Fixed focal lens, 2.8 mm and 3.6 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV: 96.5°, vertical FOV: 48.9°, diagonal FOV: 120.5° 3.6 mm, horizontal FOV: 76.9°, vertical FOV: 40.6°, diagonal FOV: 92.0°

Lens Mount

M12

Illuminator

Supplement Light Type

Supplement Light Range

Up to 20 m


Image Parameters Switch

STD/HIGH-SAT

Image Settings

AGC;Brightness;Smart IR;Mirror;Sharpness

Frame Rate

PAL: 1080p @ 25 fps NTSC: 1080p @ 30 fps

Day/Night Mode

Auto/Color/BW (Black and White)

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

DWDR;BLC

Noise Reduction

2D DNR

Interface

Video Output

Switchable TVI/AHD/CVI/CVBS

General

Power

12 VDC ±15%, Max. 2.1 W

Material

Plastic

Dimension

165 mm × 62 mm × 58 mm (6.50" × 2.44" × 2.28")

400 g (0.88 lb.)

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)

Approval

Protection

IP66
