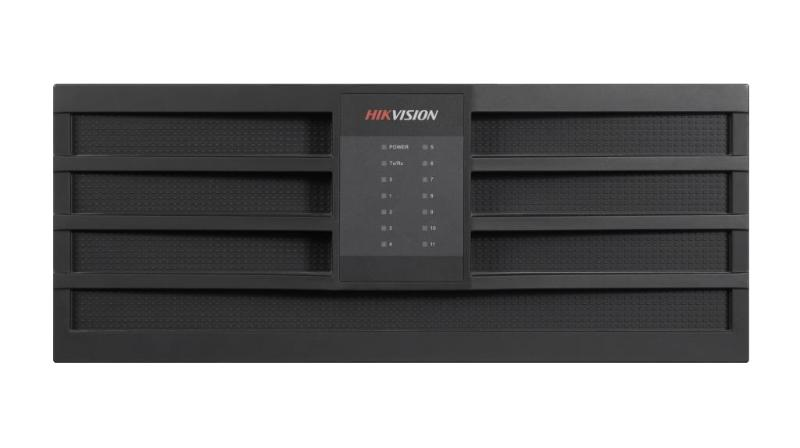

High-performance, full-featured video wall controller
9 slot, 11 slots and 22 slot chassis' are suitable for a wide range of video walls
Manage various types of input signals
Flexible live view window operation
User-friendly software both for mobile devices and PC
A signal source can be displayed on the M × N (M ≥ 1, N ≥ 1) display units.
Multiple signal sources are supported, including VGA, DVI, HDMI, SDI, YpbPr, DP, HDBaseT. Up to 3840 × 2160@30 Hz resolution is supported for HDMI, DP and HDBaseT signal inputs.
Distributed network signal sources configurable to raise the signal source capacity and transmission distance.
Live view in the roaming window and live view list.
Fluent video output without frame extraction to guarantee the lossless output of 60 frames.
An enhanced network decoding board supports H.264 and H.265 compression standard and can display network signal of email@example.com MP, firstname.lastname@example.org MP, email@example.com MP, 8-ch@1080p, 16-ch@720p and 32-ch@D1 and local video files.
Auto sub-stream decoding if the output resolution of decoding window is lower than 640 × 640.
Tile mode available and the video layers can be extended to 8 layers in tile mode.
Supports 1/4/9/16 window division modes and full-screen switch of the window. (Unavailable for the LED mode)
The window can be kept sticking on top without being affected by the operations of other windows and kept open without being affected by the scene or plan configuration.
Up to 6 image layers can be displayed on one screen, including one virtual LED image layer and a background layer.
The LED background color is adjustable. The resolution of background layer is up to 8192 × 8192.
The tile mode can be saved in the scene.
Video wall mirror configurable to mirror the content of one video wall area to another area.
Users have the permission to manage the signal sources and video wall.
Built-in matrix feature for opening a signal source on several windows simultaneously.
Matrix protocol of ZT1.0, ZT2.0, Extron, Creator and HIK_CVBS_96P supported and up to 4 matrixes with maximum 512 input channels of each matrix supported.
Supports crossing-window video roaming. (Unavailable for the tile mode)
Supports adjusting the output to match the virtual output of client software with real output of controller.
Up to 16 devices can be managed and up to 5 virtual video walls can be displayed by a client server.
Remote control via iOS client server, Android client server and IE browser.
Supports opening windows to display video signal, with the window position and size adjustable.
Supports SADP searching active IP address and resetting the password of administrator.
The fan speed of the chassis is self-adaptive to the temperature.
Supports both the LED screen mode with small pixel pitch and the normal screen mode.
Self-adaptive to the configured LED resolution.
Supports custom resolution access of DP, DVI and HDMI signal sources and characters overlap.
Device running status, sub-board status, and fan status can be checked.
Supports remote interaction.
Compatible with wireless projection.
4K outputs support joint display.
Scene switching for local signal sources can be done in seconds without black screens.
Image lossless collecting, transmitting and displaying without color cast, color bleed and word blur.
