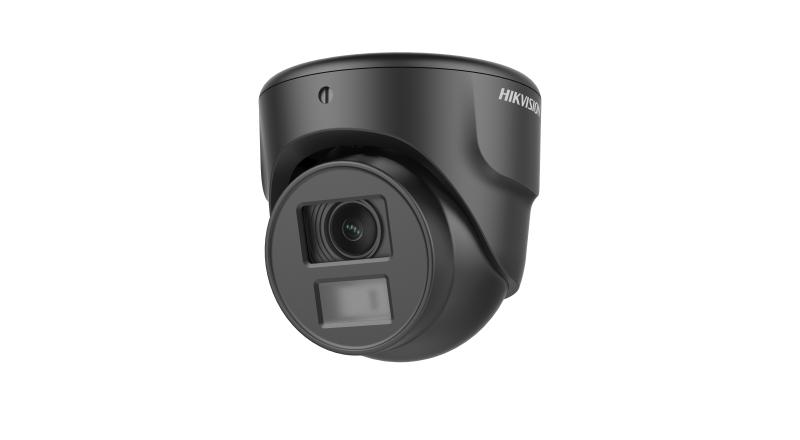

2 MP Fixed Turret Camera

2 MP black ultra mini turret camera
EXIR 2.0: advanced infrared technology with 20 m IR distance
Water and dust resistant (IP67)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).

View Less

Data Sheet

Available models:

DS-2CE70D0T-ITMF(2.8mm)

DS-2CE70D0T-ITMF(3.6mm)

DS-2CE70D0T-ITMF

EOL

Specification
Resources
Accessories

Data Sheet

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL:1/25 s to 1/50,000 s NTSC:1/30 s to 1/50,000 s
Day & NightICR
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 80°, Rotation: 0° to 360°
Signal SystemPAL/NTSC

Lens
Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV106° (2.8 mm), 80° (3.6 mm), 51° (6 mm)
Lens MountM12

Image Parameters SwitchSTD/HIGH-SAT
Image SettingsBrightness, Sharpness, DNR , Mirror, Smart IR
Frame RateTVI: 1080P@25fps, 1080P@30fps AHD: 1080P@25fps, 1080P@30fps CVI: 1080P@25fps, 1080P@30fps CVBS: P/N
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
White BalanceAuto/Manual
AGCSupport

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS

General
MaterialMetal
DimensionΦ 61.12 mm × 60 mm (Φ 2.57" × 2.56")
Weight160 g (0.35 lb.)
Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
ConsumptionMax. 3.6 W
IR RangeUp to 20 m

Approval
ProtectionIP67

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Min. Illumination

0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL:1/25 s to 1/50,000 s NTSC:1/30 s to 1/50,000 s

Day & Night

ICR

Angle Adjustment

Pan: 0° to 360°, Tilt: 0° to 80°, Rotation: 0° to 360°

Signal System

PAL/NTSC

Lens

Lens Type

2.8 mm, 3.6 mm, 6 mm fixed lens

Focal Length & FOV

106° (2.8 mm), 80° (3.6 mm), 51° (6 mm)

Lens Mount

M12


Image Parameters Switch

STD/HIGH-SAT

Image Settings

Brightness, Sharpness, DNR , Mirror, Smart IR

Frame Rate

TVI: 1080P@25fps, 1080P@30fps AHD: 1080P@25fps, 1080P@30fps CVI: 1080P@25fps, 1080P@30fps CVBS: P/N

Day/Night Mode

Auto/Color/BW (Black and White)

Wide Dynamic Range (WDR)

Digital WDR

White Balance

Auto/Manual

AGC

Support

Interface

Video Output

Switchable TVI/AHD/CVI/CVBS

General

Material

Metal

Dimension

Φ 61.12 mm × 60 mm (Φ 2.57" × 2.56")

Weight

160 g (0.35 lb.)

Operating Condition

‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Communication

HIKVISION-C

Language

English

Power Supply

12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.

Consumption

Max. 3.6 W

IR Range

Up to 20 m

Approval

Protection

IP67

Camera

Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL:1/25 s to 1/50,000 s NTSC:1/30 s to 1/50,000 s
Day & NightICR
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 80°, Rotation: 0° to 360°
Signal SystemPAL/NTSC

Lens

Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV106° (2.8 mm), 80° (3.6 mm), 51° (6 mm)
Lens MountM12


Image Parameters SwitchSTD/HIGH-SAT
Image SettingsBrightness, Sharpness, DNR , Mirror, Smart IR
Frame RateTVI: 1080P@25fps, 1080P@30fps AHD: 1080P@25fps, 1080P@30fps CVI: 1080P@25fps, 1080P@30fps CVBS: P/N
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
White BalanceAuto/Manual
AGCSupport

Interface

Video OutputSwitchable TVI/AHD/CVI/CVBS

General

MaterialMetal
DimensionΦ 61.12 mm × 60 mm (Φ 2.57" × 2.56")
Weight160 g (0.35 lb.)
Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
ConsumptionMax. 3.6 W
IR RangeUp to 20 m
