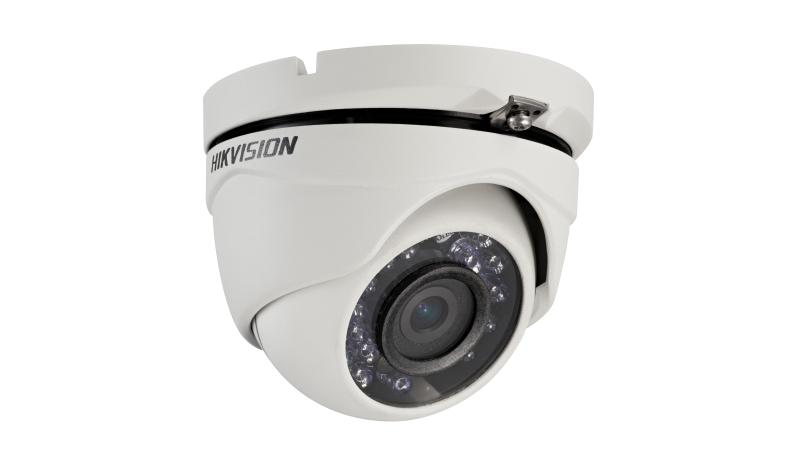

1 MP Fixed Turret Camera

HD 720p turret camera
Smart IR: up to 20 m IR distance
Water and dust resistant (IP67)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

View Less

Data Sheet

Available models:

DS-2CE56C0T-IRMF(2.8mm)

DS-2CE56C0T-IRMF(3.6mm)

DS-2CE56C0T-IRMF

Specification
Resources
Accessories

Data Sheet

Camera
Day & NightIR Cut Filter
Signal SystemPAL/NTSC
Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Image Sensor1 MP CMOS
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Max. Resolution1280 (H) × 720 (V)

Lens
Lens TypeFixed focal lens, 2.8 mm, 3.6 mm, and 6 mm optional
Focal Length & FOVField of view: 70.9° (3.6 mm), 92° (2.8 mm), 56.7° (6 mm)
Lens MountM12

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 20 m

Frame Rate720p@25fps/720p@30fps
SNR>62 dB

Interface
Video Output1 HD analog output

General
Power12 VDC±15%, max. 4 W
Dimension89.47 mm × 67.6 mm (3.52" × 2.7")
WeightApprox. 340 g (0.75 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Approval
ProtectionIP67

Camera

Day & Night

IR Cut Filter

Signal System

PAL/NTSC

Min. Illumination

0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

Image Sensor

1 MP CMOS

Shutter Time

PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

Angle Adjustment

Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Max. Resolution

1280 (H) × 720 (V)

Lens

Lens Type

Fixed focal lens, 2.8 mm, 3.6 mm, and 6 mm optional

Focal Length & FOV

Field of view: 70.9° (3.6 mm), 92° (2.8 mm), 56.7° (6 mm)

Lens Mount

M12

Illuminator

Supplement Light Type

Supplement Light Range

Up to 20 m


Frame Rate

720p@25fps/720p@30fps

SNR

>62 dB

Interface

Video Output

1 HD analog output

General

Power

12 VDC±15%, max. 4 W

Dimension

89.47 mm × 67.6 mm (3.52" × 2.7")

Weight

Approx. 340 g (0.75 lb.)

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Approval

Protection

IP67
