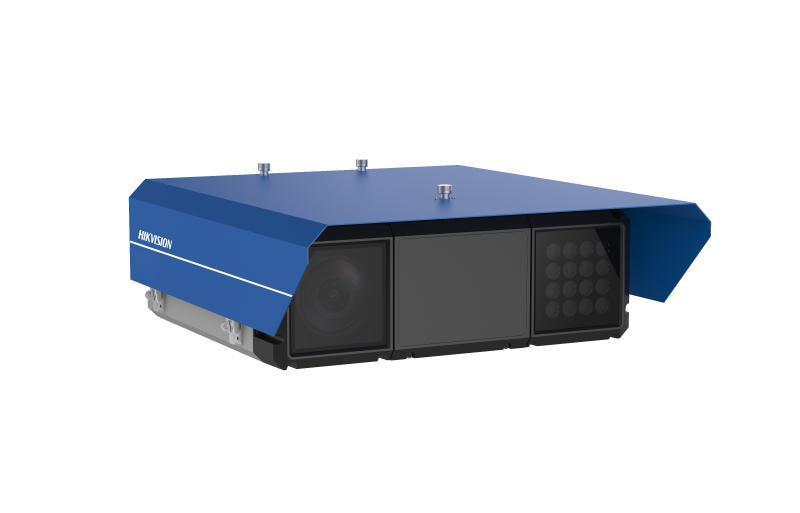

9 MP All-Rounder Incident Detection Camera

Applicable to various events detection and vehicle feature recognition
77GHz precise radar & 9MP GMOS sensor
All weather workable
H.264/H.265 High Profile encoding, maximum Full HD 4096×2160@ 25fps real-time image output
Support multi-target vehicle trajectory detection and target visualization, ranging 200 meters in the vertical direction
Built-in deep learning algorithm, support vehicle plate /type /color /brand identification
Support detection of phone calling, non-seatbelt, driving on lane line, illegal lane change, wrong-way driving, illegal parking, lane occupied by large truck, roadblock, construction, dropping objects, pedestrians, congestion, etc.
Built-in supplement light

View Less

Available models:

iDS-TCS907-CIR/1140

iDS-TCS907-CIR

EOL

Specification
Resources
Accessories

Camera
Max. Resolution4096 × 2160
Min. IlluminationColor: 0.001 Lux@(F1.4, AGC ON) B/W: 0.001Lux@(F1.2,AGC ON)
Shutter Time50 us-20000 us

Lens
Focal Length & FOV11-40 mm (Horizontal: 62° to 23.6°, vertical: 32.2° to 12.2°) ; 25 mm (Horizontal: 31°, vertical: 16.9°)

Video
Main Stream50 Hz: 25 fps (4096 × 2160, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (4096 × 2160, 1920 × 1080, 1280 × 720)
Sub Stream1920 × 1080, 704 × 576
Video Compression H.264 and H.265 encoding Main stream: H.265/H.264/MJPEG Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline profile/Main profile/High profile
H.265 TypeBaseline profile/Main profile/High profile

Network
ProtocolsTCP/IP,HTTP,DNS,RTP,RTSP
SecurityUsername and password authentication , HTTPS Digital certificate
Web BrowserIE8-IE11, plug-in free live view supported

Image SettingsSaturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser.
Day/Night SwitchAuto/Scheduled/Triggered by alarm in
SNR60 dB
Image Enhancement3D DNR

Interface
Ethernet Interface2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet interfaces
On-board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 512GB
Alarm 7 output interfaces
RS-4853 RS-485 interfaces (half duplex, HIKVISION)
RS-2321 RS-232 interface

Event
Basic EventHDD Error, network disconnected, IP address conflicted, vehicle detector exception, traffic light detector exception

Road Traffic and Vehicle Detection
CoverageUp to 3 lanes
Smart FunctionDetection of phone calling, non-seatbelt, Vehicle type, lane flow, lane speed, space headway, time headway, lane time occupancy rate, lane space occupancy rate, queuing length, and traffic status Driving on lane line, lane change, wrong-way driving, stopped vehicle, Emergency lane occupation, roadblock, construction, fallen object, pedestrians, congestion, fire/smoke in tunnel detection, speed drop, speeding, low-speed driving

General
Power100 VAC~240 VAC 80 W MAX
Dimension437 × 396 ×139.15 mm
Weight 7 ± 0.5 kg
Operating ConditionTemperature: -30 °C ~70 °C Humidity: <95%
General FunctionHeartbeat, password protection, NTP time adjustment

Approval
ProtectionIP65

Camera

Max. Resolution

4096 × 2160

Min. Illumination

Color: 0.001 Lux@(F1.4, AGC ON) B/W: 0.001Lux@(F1.2,AGC ON)

Shutter Time

50 us-20000 us

Lens

Focal Length & FOV

11-40 mm (Horizontal: 62° to 23.6°, vertical: 32.2° to 12.2°) ; 25 mm (Horizontal: 31°, vertical: 16.9°)

Video

Main Stream

50 Hz: 25 fps (4096 × 2160, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (4096 × 2160, 1920 × 1080, 1280 × 720)

Sub Stream

1920 × 1080, 704 × 576

Video Compression

H.264 and H.265 encoding Main stream: H.265/H.264/MJPEG Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline profile/Main profile/High profile

H.265 Type

Baseline profile/Main profile/High profile

Network

Protocols

TCP/IP,HTTP,DNS,RTP,RTSP

Security

Username and password authentication , HTTPS Digital certificate

Web Browser

IE8-IE11, plug-in free live view supported


Image Settings

Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser.

Day/Night Switch

Auto/Scheduled/Triggered by alarm in

SNR

60 dB

Image Enhancement

3D DNR

Interface

Ethernet Interface

2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet interfaces

On-board Storage

Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512GB

Alarm

7 output interfaces

RS-485

3 RS-485 interfaces (half duplex, HIKVISION)

RS-232

1 RS-232 interface

Event

Basic Event

HDD Error, network disconnected, IP address conflicted, vehicle detector exception, traffic light detector exception

Road Traffic and Vehicle Detection

Coverage

Up to 3 lanes

Smart Function

Detection of phone calling, non-seatbelt, Vehicle type, lane flow, lane speed, space headway, time headway, lane time occupancy rate, lane space occupancy rate, queuing length, and traffic status Driving on lane line, lane change, wrong-way driving, stopped vehicle, Emergency lane occupation, roadblock, construction, fallen object, pedestrians, congestion, fire/smoke in tunnel detection, speed drop, speeding, low-speed driving

General

Power

100 VAC~240 VAC 80 W MAX

Dimension

437 × 396 ×139.15 mm

Weight

7 ± 0.5 kg

Operating Condition

Temperature: -30 °C ~70 °C Humidity: <95%

General Function

Heartbeat, password protection, NTP time adjustment

Approval

Protection

IP65
