*Images are for illustrative purposes. Actual product appearance and specifications may vary.
add compare icon

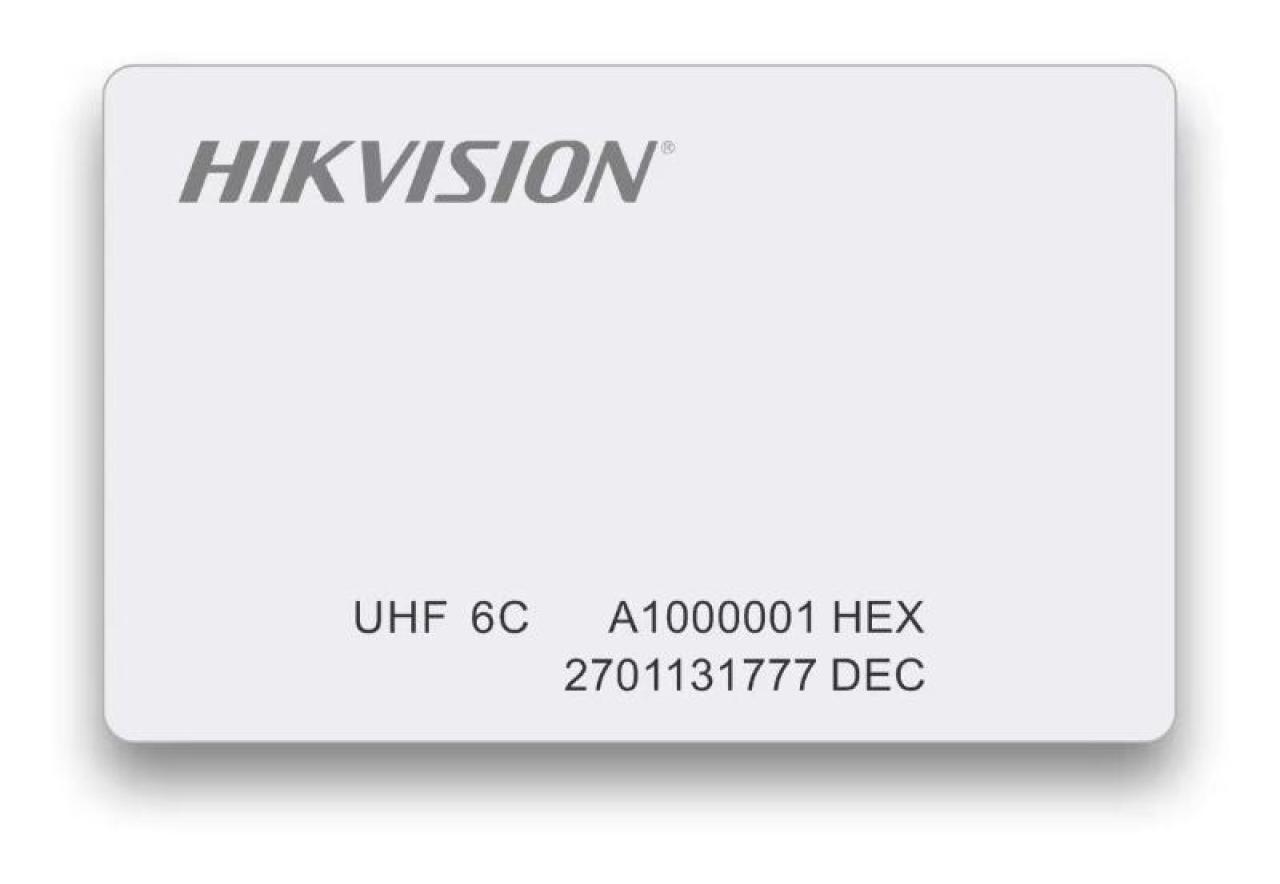

DS-TRC902-1/A(NUM)

  • It is suitable for scenarios such as pallet management, logistics management, asset entrance and exit management, and product management.
View Less
View more
Sales Inquiry

Available models:

DS-TRC902-1/A(NUM)
View more View Less
DS-TRC902-1/A(NUM)

Specification

  • UHF
  • Working Frequency860-960 MHz full band
  • RF ProtocolEPC Global Class1 Gen2 ISO 18000-6C
  • Reading Distance12 m (depending on the power of the reading device and the size of the antenna of the reading device)
  • IC Chip TypeIMPINJ Monza4QT chip in the United States
  • Memory CapacityEPC 128Bits;TID48Bits;User 512Bits
  • Data Life10 year
  • Number of Use/Storage Life100,000 times
  • Surface MaterialPolyethylene PVC (waterproof, abrasion resistant)
  • Antenna Material/Base MaterialPET
  • Printing TechnologyFour-color printing, flow code, barcode, 3M glue
  • General
  • Working Environment-25℃～55℃
  • Dimensions86 × 54 × 0.88 mm (3.39 × 2.13 × 0.0346 inch)
  • Storage Temperature and Humidity-30℃～65℃
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

UHF
Working Frequency
860-960 MHz full band
RF Protocol
EPC Global Class1 Gen2 ISO 18000-6C
Reading Distance
12 m (depending on the power of the reading device and the size of the antenna of the reading device)
IC Chip Type
IMPINJ Monza4QT chip in the United States
Memory Capacity
EPC 128Bits;TID48Bits;User 512Bits
Data Life
10 year
Number of Use/Storage Life
100,000 times
Surface Material
Polyethylene PVC (waterproof, abrasion resistant)
Antenna Material/Base Material
PET
Printing Technology
Four-color printing, flow code, barcode, 3M glue
General
Working Environment
-25℃～55℃
Dimensions
86 × 54 × 0.88 mm (3.39 × 2.13 × 0.0346 inch)
Storage Temperature and Humidity
-30℃～65℃
