*Images are for illustrative purposes. Actual product appearance and specifications may vary.
NEW
add compare icon

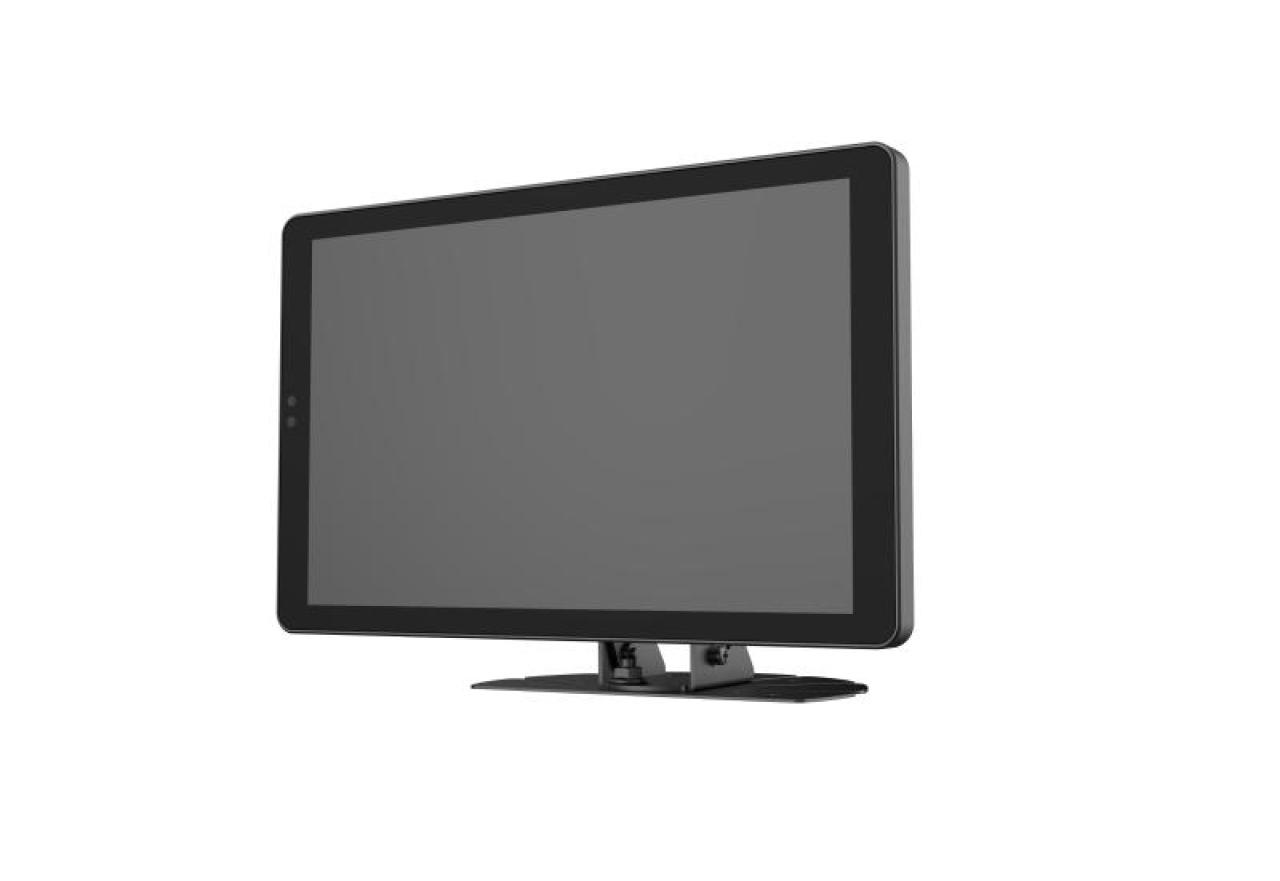

10" Vehicle HD Touch Monitor

  • Frameless integrated design, automotive-grade 10" IPS screen, 800*1280 resolution, 600 cd/m² brightness, anti-glare surface;
  • Supports installation on the central console, A-pillar. Supports both horizontal and vertical screen installation. Adopts a short cable solution for easy disassembly and replacement of the screen and surrounding facilities;
  • Supports horizontal and vertical screen display, and supports image 90° left/right rotation adjustment;
  • Supports manual screen brightness adjustment and automatic ambient light adjustment for comfortable display and energy saving;
  • Support contrast and saturation parameter adjustment. Supports cool and warm tone adjustment, low blue light mode setting, and alleviates driver's visual fatigue;
  • Convenient operation, supporting full lamination capacitive touch and remote control;
  • Standard configuration 2 channels of 1080P video input, with adaptive AHD/TVI/CVBS signal access, expand support 4 channels;
  • Supports signal trigger to switch video, trigger delay and priority can be set;
  • Supports 8-36V wide voltage input, power reverse-polarity protection, and can be paired with ACC for power-off delay function settings;
View Less
View more
Sales Inquiry

Available models:

AE-MJ1010T(10"/ATC/2-CH/B)
View more View Less
AE-MJ1010T NEW

Specification

  • Screen
  • Screen Size10.1inch
  • Resolution800 (H) × 1280 (V)
  • Brightness600 cd/m²
  • TouchscreenSupports capacitive touch screen (full lamination)
  • LCD TechnologyIPS
  • Contrast Ratio1000:1
  • Viewing Size216.58 (H) mm × 135.36 (V) mm
  • Surface TreatmentHaze 30%
  • General
  • Product Dimension248.36mm*157.5mm*28.68mm (without bracket)
  • Working Temperature-20°C to +70°C (-4°F to +158°F)
  • Power Consumption＜5.5W (without the camera connected)
  • InstallationBracket, Wall mounting
  • Standby Power Consumption＜0.5W
  • Storage Temperature-30°C to +80°C (-22°F to +176°F)
  • Peripheral Device Interface
  • Video-In Slot2*AHD, TVI (1080P/720P) / NTSC / PAL Adaptive
  • External Interface1*RS485 Interface, 1*IO Trigger
  • Battery
  • working VoltageDC 8-36V
  • Function
  • BuzzerSupport
  • Optical sensorSupport
  • Control ModeTouch and Remote control
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Screen
Screen Size
10.1inch
Resolution
800 (H) × 1280 (V)
Brightness
600 cd/m²
Touchscreen
Supports capacitive touch screen (full lamination)
LCD Technology
IPS
Contrast Ratio
1000:1
Viewing Size
216.58 (H) mm × 135.36 (V) mm
Surface Treatment
Haze 30%
General
Product Dimension
248.36mm*157.5mm*28.68mm (without bracket)
Working Temperature
-20°C to +70°C (-4°F to +158°F)
Power Consumption
＜5.5W (without the camera connected)
Installation
Bracket, Wall mounting
Standby Power Consumption
＜0.5W
Storage Temperature
-30°C to +80°C (-22°F to +176°F)
Peripheral Device Interface
Video-In Slot
2*AHD, TVI (1080P/720P) / NTSC / PAL Adaptive
External Interface
1*RS485 Interface, 1*IO Trigger
Battery
working Voltage
DC 8-36V
Function
Buzzer
Support
Optical sensor
Support
Control Mode
Touch and Remote control
