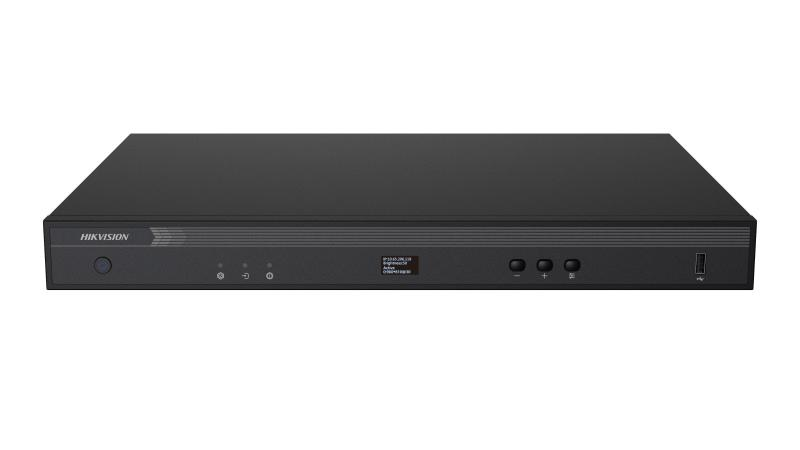

20 Ports 2-in-1 LED Controller

Provides a full-color OLED non-touch screen with the resolution of 128 × 64. Thus, you can view device status at any time and the device maintenance become easier.
Adopts the 1 U rackmount chassis and industrial grade chassis system.
Provides buttons on the front panel to change brightness and other parameters.
Provides indicators on the front panel to indicate the power status, signal access status, and running status.
Supports 3 channels of video signal input. The HDMI 2.0 resolution is 4096 × 2160@60 Hz. The DVI and HDMI 1.4 resolution is 1920 × 1200@60 Hz.
Supports frame rate self-adaption ranging from 25 Hz to 60 Hz for image collection.
Supports 20 channels of loading output with the maximum loading capacity of 13 MP. The maximum width is 8192 pixels and maximum height is 8192 pixels for a single device and the maximum loading capacity of each network port is 0.65 MP.
Supports the RGB and YUV 444 image loading output without image quality loss.
Supports input of mixed HDMI audio and video stream, and 3.5 mm audio output.
Supports full-screen zoom and custom zoom for video signal input, custom changing, and custom splicing.
Supports opening the signal source windows on the display and roaming window.
Supports the video wall configuration and window visualization.
Supports 1 channel of subtitle. You can set the color, font, and scrolling speed for the subtitle and add the picture.
Supports cascading management and unified control of multiple LED controllers through the network.
Supports high-bandwidth digital content protection technology of HDCP 2.2 protocol.
Supports custom EDID settings.
Supports dual backup of the power supplies and dual backup of LED controller network ports.
Supports custom cable alignment without rectangular frame limit.
Supports the operation through the client or the LED controller web page.
Supports configuring the background.
Supports configuring the startup logo and screen saver.
Supports configuring the screen dehumidification.
Supports using the remote control to control the screen to display the remote UI menu.
Supporting adjusting the brightness, contrast, hue, and other parameters of the output image.
Supports pixel-level screen correction to effectively eliminate color difference and improve the quality of the display
Supports changing the display mode, including general, text, advertisement, video, cinema, security, and etc.
Supports selecting the color temperature adjustment mode such as standard, warm color, and cold color and customizing color temperature.
Supports eye protection mode to protect the vision of the viewer.
Supports high refresh rate output at 3840 Hz, nanosecond response time, and smooth video picture.
Supports viewing the loading relationship between the device and LED screen.
Supports viewing abnormal screen positioning during running.
Supports checking parameters such as device running status, device memory, CPU usage, device running temperature, and network port usage.
Supports abnormal screen voltage detection, screen temperature detection, and device temperature detection
Supports connecting to the central control device and IoT device through RS-485 port.
Supports docking device command and managing device by using the control network port and the protocols such as OTAP.
Supports using the control network port to connect to the multi-function card to realize environment temperature detection, environment humidity detection, and the cooperation between the human body temperature monitoring and screen control.
Supports up to 10 scenes. Thus, the saved scene can be used directly in the future.
Supports displaying 7 windows (3 signal source windows + 2 image windows + 1 scrolling text window + 1 background window) and customizing the window layout for all windows except for the background window.
Supports HDMI 2.0 and DVI loop output. The maximum HDMI loop output is 4096 × 2160@60 Hz and the maximum DVI loop output is 1920 × 1200@60 Hz.
Provides buttons on the front panel to change brightness and other parameters.

View Less

Data Sheet

Available models:

DS-DT60V-03HDI20NO/U

Specification
Resources
Accessories

Data Sheet

Processing Performance
Brightness Control1 to 100 tunable (level-by-level white balance)
Frame Frequency25 Hz to 60 Hz
Grey Level256
Display Color16 MP
Processing Depth8 bit
Image ScalingSupported

Product Model
Product ModelDS-DT60V-03HDI20NO/U

Chassis
Chassis Height1 U
Chassis Width440 mm (17.32 inch)

Product Type
Product TypeLED controller

LED Controller Power
Average Consumption≤43 W
Number of power interfaces1
Power interface specifications100 to 240 VAC, 50/60 Hz

Video Wall
Open Windows3 signal source windows + 2 image windows + 1 scrolling text window + 1 background window
Layers per Device7
Scenes10
Background Images1
Background ResolutionMin.: 640 × 480, Max.: 1920 × 1200
Background FormatJPG/JPEG
Subtitles1
Subtitle Width32760
Subtitle FontSupports Xiaomi font and custom font

General
Working Temperature-10°C to 50°C
Storage Humidity10% to 90%
Working Humidity10% to 90%
Storage Temperature-10°C to 50°C
Packaging Size (W × H × D)589 mm × 103 mm × 410 mm (23.19 inch × 4.06 inch × 16.14 inch)
Net Weight3.30 kg (7.28 lb.)
Gross Weight4.50 kg (9.92 lb.)
Dimensions (W × H × D)440 mm × 44.5 mm × 320.8 mm (17.32 inch × 1.75 inch × 12.63 inch)
Packing List1 × AC power cord, 1 pair of mounting brackets, 2 × RS-485 green Phoenix contact for central control device, 1 × regulatory compliance and safety information manual, 1 pair of rubber feet

Audio Input
Audio Input Interfaces2
Audio Input Interface Type1 channel of HDMI input with embedded audio + 1 channel of HDMI in-band audio

Video Input
Video Input Interfaces3
Video Input Interface Type1 HDMI2.0 + 1 HDMI1.4 + 1 DVI
Max. Video Input ResolutionHDMI 2.0:4K; HDMI 1.4: 1080p; DVI: 1080p
Video Input ResolutionHDMI 2.0 port: Max. resolution: 4096 × 2160@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 8.84 MP@60 Hz Max. width: 144 to 8192, alignment: 2 alignment Max. height: 144 to 8192, alignment: 1 alignment Supports HDCP 2.2 Interlacing signal input is not supported. HDMI 1.4 port: Max. resolution: 1920 × 1200@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 2.6 MP@60 Hz Max. width: 144 to 4096, alignment: 2 alignment Max. height: 144 to 4096, alignment: 1 alignment Supports HDCP 1.4 Interlacing signal input is not supported. DVI port: Max. resolution: 1920 × 1200@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 2.6 MP@60 Hz Max. width: 144 to 4096, alignment: 2 alignment Max. height: 144 to 4096, alignment: 1 alignment Supports HDCP 1.4 Interlacing signal input is not supported.
Video Input Processing FeatureProcessing depth: 8 bit Sampling format: RGB: 444 YUV: 444 YUV: 422 YUV: 420

Video Output
Video Output Interfaces12
Max. Video Output Resolution13 million
Video Output ResolutionRJ-45
Loading Capacity for Video Output to LEDLoading per port: 650000 Width 144-8192; alignment: 2 alignment Height 64-8192; alignment: 1 alignment
LED Loading Interfaces20
Video Loop Output Interfaces2
Type of Video Loop Output Interface1 channel of HDMI 2.0 + 1 channel of DVI
Video Loop Output ResolutionHDMI 2.0 port: Max. resolution: 4096 × 2160@60 Hz Min. resolution: 320 × 180@60 Hz Output resolution maintains consistency with the video input resolution. Max. width: 144 to 8192, alignment: 2 alignment Max. height: 144 to 8192, alignment: 1 alignment Supports HDCP 2.2 DVI port: Max. resolution: 1920 × 1200@60 Hz Min. resolution: 320 × 180@60 Hz Output resolution maintains consistency with the video input resolution. Max. width: 144 to 4096, alignment: 2 alignment Max. height: 144 to 4096, alignment: 1 alignment Supports HDCP 1.4
Video Live View Output Interfaces1
Type of Video Live View Output InterfaceHDMI 1.4
Video Live View Output Resolution720p@60 Hz

Audio Output
Audio Output Interfaces1

Wireless
Remote ControlSupports IR remote control and RF remote control

Front Panel
Screen128 × 64, OLED screen
USB Port1 channel of USB 2.0
Button+: increase brightness -: decrease brightness Source: change signal source
IndicatorActive: The device is running. Source: The signal source is accessed. Error: The device operation exception occurs.
Power SwitchOn: The device is started and running. Off: The device is not powered on or is not started.

Control Interface
Control Network Port2 × 10/100/1000 Mbps self-adaptive Ethernet port (RJ-45) Connects to the external network and supports multi-device network cascade management.
IR Input1 × 3.5 mm connector Supports the access of IR remote control.
Serial Interface1 × debugging serial port (4-pin connector) + 1 × RS-485 central control serial port (green Phoenix contact) + 1 × RS-485 serial port for light sensor (green Phoenix contact) Baud rate: 115200 Data bit: 8
Power SwitchButton switch

Processing Performance

Brightness Control

1 to 100 tunable (level-by-level white balance)

Frame Frequency

25 Hz to 60 Hz

Grey Level

256

Display Color

16 MP

Processing Depth

8 bit

Image Scaling

Supported

Product Model

DS-DT60V-03HDI20NO/U

Chassis

Chassis Height

1 U

Chassis Width

440 mm (17.32 inch)

Product Type

LED controller

LED Controller Power

Average Consumption

≤43 W

Number of power interfaces

Power interface specifications

100 to 240 VAC, 50/60 Hz

Video Wall

Open Windows

3 signal source windows + 2 image windows + 1 scrolling text window + 1 background window

Layers per Device

Scenes

Background Images

Background Resolution

Min.: 640 × 480, Max.: 1920 × 1200

Background Format

JPG/JPEG

Subtitles

Subtitle Width

32760

Subtitle Font

Supports Xiaomi font and custom font

General

Working Temperature

-10°C to 50°C

Storage Humidity

10% to 90%

Working Humidity

10% to 90%

Storage Temperature

-10°C to 50°C

Packaging Size (W × H × D)

589 mm × 103 mm × 410 mm (23.19 inch × 4.06 inch × 16.14 inch)

Net Weight

3.30 kg (7.28 lb.)

Gross Weight

4.50 kg (9.92 lb.)

Dimensions (W × H × D)

440 mm × 44.5 mm × 320.8 mm (17.32 inch × 1.75 inch × 12.63 inch)

Packing List

1 × AC power cord, 1 pair of mounting brackets, 2 × RS-485 green Phoenix contact for central control device, 1 × regulatory compliance and safety information manual, 1 pair of rubber feet

Audio Input

Audio Input Interfaces

Audio Input Interface Type

1 channel of HDMI input with embedded audio + 1 channel of HDMI in-band audio

Video Input

Video Input Interfaces

Video Input Interface Type

1 HDMI2.0 + 1 HDMI1.4 + 1 DVI

Max. Video Input Resolution

HDMI 2.0:4K; HDMI 1.4: 1080p; DVI: 1080p

Video Input Resolution

HDMI 2.0 port: Max. resolution: 4096 × 2160@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 8.84 MP@60 Hz Max. width: 144 to 8192, alignment: 2 alignment Max. height: 144 to 8192, alignment: 1 alignment Supports HDCP 2.2 Interlacing signal input is not supported. HDMI 1.4 port: Max. resolution: 1920 × 1200@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 2.6 MP@60 Hz Max. width: 144 to 4096, alignment: 2 alignment Max. height: 144 to 4096, alignment: 1 alignment Supports HDCP 1.4 Interlacing signal input is not supported. DVI port: Max. resolution: 1920 × 1200@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 2.6 MP@60 Hz Max. width: 144 to 4096, alignment: 2 alignment Max. height: 144 to 4096, alignment: 1 alignment Supports HDCP 1.4 Interlacing signal input is not supported.

Video Input Processing Feature

Processing depth: 8 bit Sampling format: RGB: 444 YUV: 444 YUV: 422 YUV: 420

Video Output

Video Output Interfaces

Max. Video Output Resolution

13 million

Video Output Resolution

RJ-45

Loading Capacity for Video Output to LED

Loading per port: 650000 Width 144-8192; alignment: 2 alignment Height 64-8192; alignment: 1 alignment

LED Loading Interfaces

Video Loop Output Interfaces

Type of Video Loop Output Interface

1 channel of HDMI 2.0 + 1 channel of DVI

Video Loop Output Resolution

HDMI 2.0 port: Max. resolution: 4096 × 2160@60 Hz Min. resolution: 320 × 180@60 Hz Output resolution maintains consistency with the video input resolution. Max. width: 144 to 8192, alignment: 2 alignment Max. height: 144 to 8192, alignment: 1 alignment Supports HDCP 2.2 DVI port: Max. resolution: 1920 × 1200@60 Hz Min. resolution: 320 × 180@60 Hz Output resolution maintains consistency with the video input resolution. Max. width: 144 to 4096, alignment: 2 alignment Max. height: 144 to 4096, alignment: 1 alignment Supports HDCP 1.4

Video Live View Output Interfaces

Type of Video Live View Output Interface

HDMI 1.4

Video Live View Output Resolution

720p@60 Hz

Audio Output

Audio Output Interfaces

Wireless

Remote Control

Supports IR remote control and RF remote control

Front Panel

Screen

128 × 64, OLED screen

USB Port

1 channel of USB 2.0

Button

+: increase brightness -: decrease brightness Source: change signal source

Indicator

Active: The device is running. Source: The signal source is accessed. Error: The device operation exception occurs.

Power Switch

On: The device is started and running. Off: The device is not powered on or is not started.

Control Interface

Control Network Port

2 × 10/100/1000 Mbps self-adaptive Ethernet port (RJ-45) Connects to the external network and supports multi-device network cascade management.

IR Input

1 × 3.5 mm connector Supports the access of IR remote control.

Serial Interface

1 × debugging serial port (4-pin connector) + 1 × RS-485 central control serial port (green Phoenix contact) + 1 × RS-485 serial port for light sensor (green Phoenix contact) Baud rate: 115200 Data bit: 8
