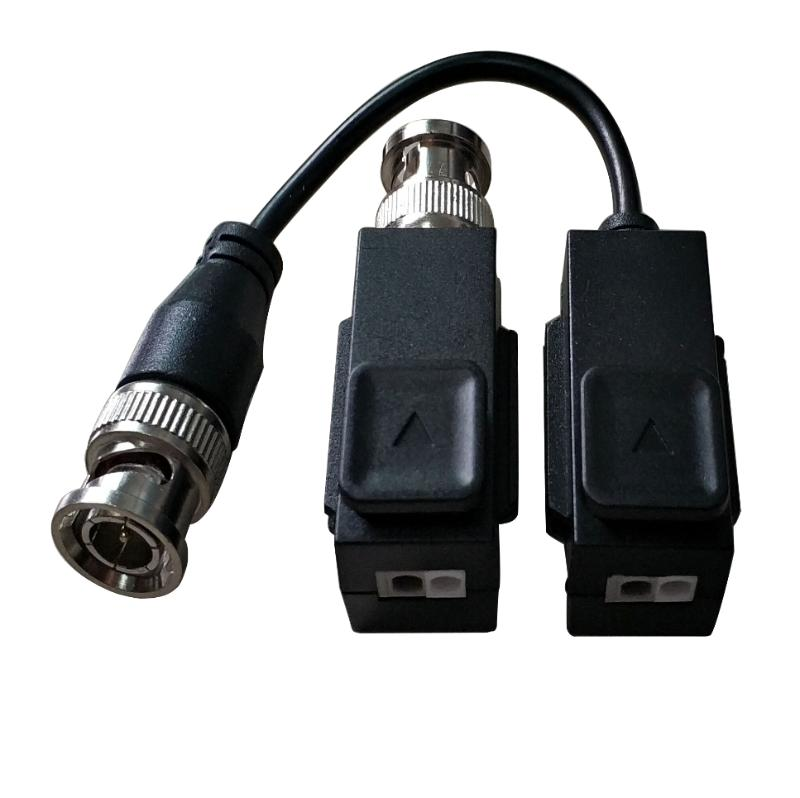

Video Balun

Screw interface with cable and without cable
Mini size for easy installation
ABS outer shell for convenient to use in intensive project
No power required, and simplified project wiring
Plug and play, real-time transmit CCTV HD video signal, and high quality and stable video
Compatible with HDTVI/HDCVI/AHD
Transmission distance: non-POC Camera: Max. 200m.
Superior anti-interference and lighting protection and ESD

View Less

DS-1H18S/E-E

Especificación
Resources
Accesorios

Properties
Transmission Signal 1 channel
Distancia de transmisiónNon-POC Camera: Max 200m
Category Type UTP CAT 5E/ 6 (R<100Ω/100M)

Video Transmission Properties and Port
Coaxial Video ConnectorBNC-M
Twisted-pair Video Connector Screw Interface
Compatible Format HDTVI/HDCVI/AHD
Resolución720P/1080P/3MP/4MP/5MP
Ant-interference>60db

Protección
ESD1a contact discharge electricity level3 1b air discharge electricity level3 Per: IEC61000-4-2
Coaxial Cable Connector 2KV(common-code) Per:IEC61000-4-5
UTP Cable Connector2KV(different-code), 2KV(common-code) Per:IEC61000-4-5

Impedancia
BNC Male 75 ohms
UTP Cable100 ohms

Physical Properties
Shell ABS
ColorBlack
Dimensions ( L x W x H ) 147mm x 14.5mmx 17mm 45mm x 14.5mmx 17mm
Weight 31.2 g

Stability
MTBF >10000 h

Environmental
Temperatura de funcionamiento-10-55ºC
Temperatura de almacenamiento-20-70ºC
Humidity0-95% (non-condensing)

Properties

Transmission Signal

1 channel

Distancia de transmisión

Non-POC Camera: Max 200m

Category Type

UTP CAT 5E/ 6 (R<100Ω/100M)

Video Transmission Properties and Port

Coaxial Video Connector

BNC-M

Twisted-pair Video Connector

Screw Interface

Compatible Format

HDTVI/HDCVI/AHD

Resolución

720P/1080P/3MP/4MP/5MP

Ant-interference

>60db

Protección

ESD

1a contact discharge electricity level3 1b air discharge electricity level3 Per: IEC61000-4-2

Coaxial Cable Connector

2KV(common-code) Per:IEC61000-4-5

UTP Cable Connector

2KV(different-code), 2KV(common-code) Per:IEC61000-4-5

Impedancia

BNC Male

75 ohms

UTP Cable

100 ohms

Physical Properties

Shell

ABS

Color

Black

Dimensions ( L x W x H )

147mm x 14.5mmx 17mm 45mm x 14.5mmx 17mm

Weight

31.2 g

Stability

MTBF

>10000 h

Environmental

Temperatura de funcionamiento

-10-55ºC

Temperatura de almacenamiento

-20-70ºC

Humidity

0-95% (non-condensing)
