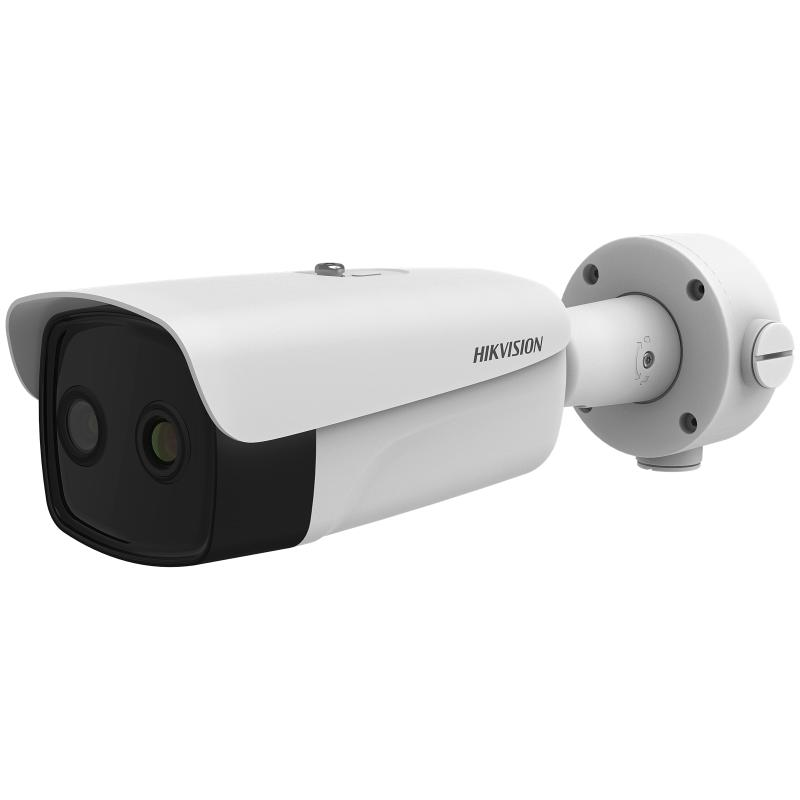

Temperature Screening Thermographic Camera

High sensitivity thermal module with 384 x 288 resolution
NETD is less than 40 mk (@25° C, F#=1.0)
Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
Reliable fever detection alarm
High quality optical module with 4 MP resolution
Bi-spectrum image fusion, picture-in-picture preview

View Less

Ficha Técnica

Modelos disponibles:

DS-2TD2636B-13/P(B)

DS-2TD2636B-13/P ^Discontinued

Especificación
Resources
Accesorios

Ficha Técnica

Módulo térmico
Sensor de imagenVOx Uncooled Focal Plane Arrays
Resolución384 × 288
Intervalo de píxeles17 μm
Respuesta de Waveband8 μm to 14 μm
NETDLess than 40 mK (@ 25 °C,F#=1.0)
Longitud focal13 mm
Modo de enfoqueAthermalized
IFOV1.3 mrad
AperturaF1.0
Campo de visión28.8° × 21.6° (H × V)
Min. Distancia de enfoque2 m

Módulo óptico
Sensor de imagen1/2.7" Progressive Scan CMOS
Resolución2688 × 1520, 4 MP
Iluminación mínimaColor: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON)
Campo de visión51.7° × 28° (H × V)
Longitud focal6 mm
Modo de enfoqueFixed
Velocidad de obturación1s to 1/100,000s
Balance de blancosAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
Modo día y nocheIR cut filter with auto switch
WDR120 dB

Image Effect
Fusión de imagen de doble espectroDisplay the details of optical channel on thermal channel
Imagen en imagenDisplay partial image of thermal channel on the full screen of optical channel

Iluminador
Distancia IRUp to 50 m
Intensidad y ángulo IRAutomatically adjusted

Función inteligente
Medida de temperaturaSupport 3 temperature measurement rule types, 21 rules (10 points, 10 areas, and 1 line).
Rango de temperatura30 °C to 45 °C (86 °F to 113 °F)
Precisión de la temperatura± 0.5 °C

Video and Audio
Main streamThermal: 50 fps (1280 × 720, 704 × 576, 384 × 288, 352 × 288);Optical: 50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720);Optical: 60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub StreamThermal: 25 fps (704 × 576, 352 × 288, 320 × 240);Optical: 50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144);Optical: 60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120)
Compresión de vídeoH.264 (Baseline/Main/High Profile) /MJPEG/H.265
Compresión de audioG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
ProtocolosIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
APIOpen-ended API, supporting ISAPI, HIKVISION SDK, and third-party management platform, open network video interface
SeguridadUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
Vista en vivo simultáneaUp to 20 channels

Interfaz
ClienteiVMS-4200, Hik-Connect
Navegador webPlug-in required: IE8-IE11, Chrome 41-44, Firefox 30.0-51
Entrada de alarma2-ch inputs (0-5vDC)
Salida de alarma2-ch relay outputs, alarm response actions configurable
Acción de alarmaSD recording/Relay output/Smart capture/FTP upload/Email linkage
Entrada de Audio1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Salida de audioLinear Level; Impedance: 600 Ω
Interfaz de comunicación1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface
Almacenamiento a bordoBuilt-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 256G), support manual/alarm recording

General
Idioma del cliente web32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Limpiador de lenteNo
Nivel de usuario/operadorUp to 32 users, 3 levels: Administrator, Operator, User
alimentación24 VAC ± 25%;12 VDC ± 25%;PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A
Consumo de energía18 VAC to 30 VAC: 0.38 A to 0.22 A, max. 9 W 9 VDC to 15 VDC: 0.63 A to 1.06 A, max. 9 W PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A, max. 9.5 W
Temperatura de trabajo/humedadFrom 10 °C to 35 °C (Indoor and windless environment use only); Humidity: 95% or Less
Nivel de protecciónIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensión376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")
Approx. 1.82 kg (4.01 lb)

Módulo térmico

Sensor de imagen

VOx Uncooled Focal Plane Arrays

Resolución

384 × 288

Intervalo de píxeles

17 μm

Respuesta de Waveband

8 μm to 14 μm

NETD

Less than 40 mK (@ 25 °C,F#=1.0)

Longitud focal

13 mm

Modo de enfoque

Athermalized

IFOV

1.3 mrad

Apertura

F1.0

Campo de visión

28.8° × 21.6° (H × V)

Min. Distancia de enfoque

2 m

Módulo óptico

Sensor de imagen

1/2.7" Progressive Scan CMOS

Resolución

2688 × 1520, 4 MP

Iluminación mínima

Color: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON)

Campo de visión

51.7° × 28° (H × V)

Longitud focal

6 mm

Modo de enfoque

Fixed

Velocidad de obturación

1s to 1/100,000s

Balance de blancos

Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp

Modo día y noche

IR cut filter with auto switch

WDR

120 dB

Image Effect

Fusión de imagen de doble espectro

Display the details of optical channel on thermal channel

Imagen en imagen

Display partial image of thermal channel on the full screen of optical channel

Iluminador

Distancia IR

Up to 50 m

Intensidad y ángulo IR

Automatically adjusted

Función inteligente

Medida de temperatura

Support 3 temperature measurement rule types, 21 rules (10 points, 10 areas, and 1 line).

Rango de temperatura

30 °C to 45 °C (86 °F to 113 °F)

Precisión de la temperatura

± 0.5 °C

Video and Audio

Main stream

Thermal: 50 fps (1280 × 720, 704 × 576, 384 × 288, 352 × 288);Optical: 50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720);Optical: 60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub Stream

Thermal: 25 fps (704 × 576, 352 × 288, 320 × 240);Optical: 50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144);Optical: 60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120)

Compresión de vídeo

H.264 (Baseline/Main/High Profile) /MJPEG/H.265

Compresión de audio

G .711u/G.711a/G.722.1/MP2L2/G.726/PCM

Protocolos

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE

API

Open-ended API, supporting ISAPI, HIKVISION SDK, and third-party management platform, open network video interface

Seguridad

User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering

Vista en vivo simultánea

Up to 20 channels

Interfaz

Cliente

iVMS-4200, Hik-Connect

Navegador web

Plug-in required: IE8-IE11, Chrome 41-44, Firefox 30.0-51

Entrada de alarma

2-ch inputs (0-5vDC)

Salida de alarma

2-ch relay outputs, alarm response actions configurable

Acción de alarma

SD recording/Relay output/Smart capture/FTP upload/Email linkage

Entrada de Audio

1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%

Salida de audio

Linear Level; Impedance: 600 Ω

Interfaz de comunicación

1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface

Almacenamiento a bordo

Built-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 256G), support manual/alarm recording

General

Idioma del cliente web

32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Limpiador de lente

Nivel de usuario/operador

Up to 32 users, 3 levels: Administrator, Operator, User

alimentación

24 VAC ± 25%;12 VDC ± 25%;PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A

Consumo de energía

18 VAC to 30 VAC: 0.38 A to 0.22 A, max. 9 W 9 VDC to 15 VDC: 0.63 A to 1.06 A, max. 9 W PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A, max. 9.5 W

Temperatura de trabajo/humedad

From 10 °C to 35 °C (Indoor and windless environment use only); Humidity: 95% or Less

Nivel de protección

IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

Dimensión

376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")

Approx. 1.82 kg (4.01 lb)
