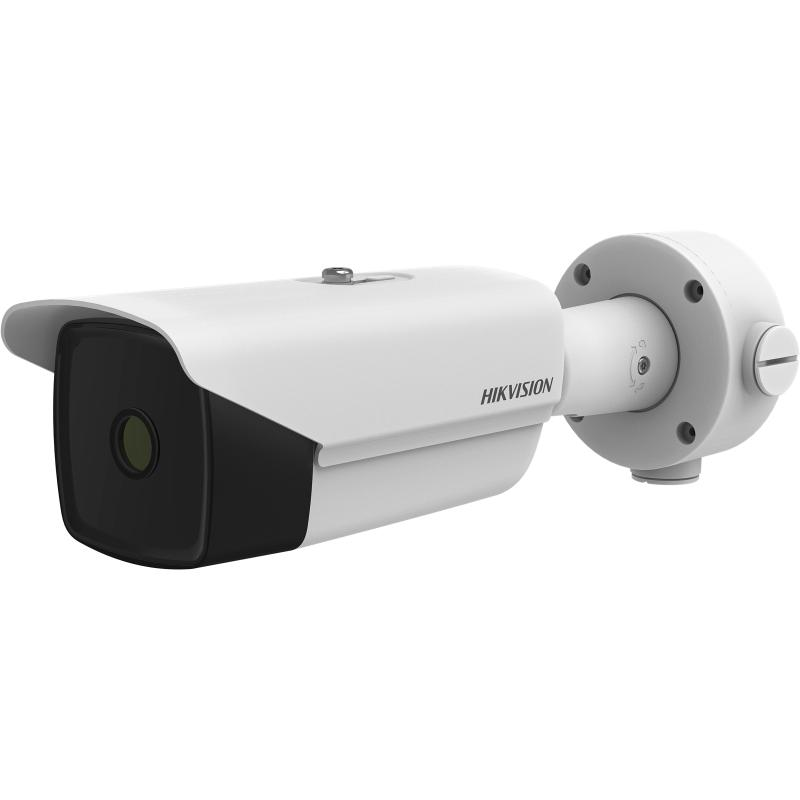

Thermal Network Bullet Camera

High sensitivity sensor with 384 x 288 resolution
NETD is less than 40 mk (@25° C, F#=1.0)
Supports contrast adjustment
Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
Up to 15 palettes of adjustable color
Open platform (HEOP) so partners can build a wide range of cooperative systems
Reliable temperature-anomaly alarm
Advanced fire detection algorithm

View Less

Modelos disponibles:

DS-2TD2137-35/VP

DS-2TD2137-35/VP ^Discontinued

Especificación
Resources
Accesorios

Módulo térmico
Sensor de imagenVanadium Oxide Uncooled Focal Plane Arrays
Intervalo de píxeles17 μm
Respuesta de Waveband8 μm to 14 μm
NETDless than 40mk (@25°C,F#=1.0)
MRAD0.49 mrad
Campo de visión10.66° × 8.002° (H × V)
Min. Distancia de enfoque40 m
AperturaF 1.0
Max. Resolución384 × 288
Lens (focal length)35 mm

HEOP
HEOPSupporting integrate the third-party algorithms into Hikvision Camera and realize smart and flexible application.

Función inteligente
Medida de temperatura3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).
Rango de temperatura-20 °C to 150 °C (-4 °F to 302 °F)
Precisión de la temperatura±8 °C (14.4 °F)
Detección de fuegoDynamic fire point detection, up to 10 fire points detectable.

Red
Main stream50fps (384×288)
Sub stream50fps (384×288)
Third stream50fps (384×288)
Compresión de vídeoH.265/H.264/MJPEG, H.265+/H.264+ encoding with Baseline/Main/High Profile
Audio compressionG.711u/G.711a/G.722.1/MP2L2/G.726/PCM
ProtocolosIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS,NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous live viewUp to 20
Nivel de usuario/operadorUp to 32 users, 3 levels: Administrator, Operator, User
Security measuresUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering

Integration
Entrada de alarma2-ch inputs (0-5V DC)
Salida de alarma2-ch relay outputs, alarm response actions configurable
Acción de alarmaPreset/Patrol Scan/ Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
Entrada de Audio1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output impedance:1KΩ±10%
Salida de audioLinear Level; Impedance: 600Ω
Ethernet1 RJ45 10M/100M Self-adaptive Ethernet interface
SD Memory CardBuilt-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 128G), support manual/alarm recording
Salida de video analógico1.0V [p-p]/75Ω, PAL/NTSC/BNC
Application ProgrammingOpen-ended API, support ISAPI, HIKVISION SDK and third-party management platform
ClienteiVMS-4200
Navegador webIE9+, chrome31-chrome44, Firefox 30-Firefox51, Safari 5.02+(mac)

General
Menu LanguageEnglish
alimentación24 VAC± 25%, 12 VDC± 20%, two-core terminal block PoE (802.3at, class 4)
Consumo de energía24 VAC± 25%: 0.84 A, 12 VDC ± 20%: 1.7 A, max. 8W (20W with De-icing Heater On), PoE (802.3at, class 4): 42.5 V to 57 V, 0.4 A to 0.5 A
Temperatura de trabajo/humedad-40 °C to 65 °C (-40 °F to 149 °F), 90% or less
Nivel de protecciónIP66 Standard,TVS 6000V Lightning protection, surge protection, voltage transient protection
Dimensiones352.4mm × 113.5mm × 113mm (13.9" × 4.45" × 4.45")
Approx. 2kg (4.41lb)
