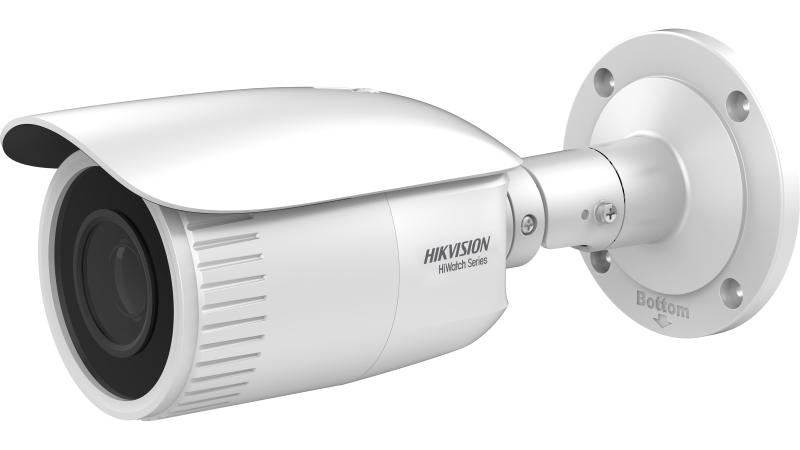

2 MP Varifocal Bullet Network Camera

High quality imaging with 2 MP resolution
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to DWDR technology
Water and dust resistant (IP66)
-V: model with manual vari-focal lens
-Z: model with motorized vari-focal lens
Built-in microphone enhances safety with audio/video in tandem

View Less

Modelos disponibles:

HWI-B621H-Z(2.8-8mm)(HiWatchSTD)

HWI-B621H-Z/-V ^Discontinued

Especificación
Resources
Accesorios

Cámara
Sensor de imagen1/3" progressive scan CMOS
Iluminación mínimaColor: 0.01 Lux @ (F1.2, AGC ON), 0.02 Lux @ (F1.6, AGC ON)
Velocidad de obturación1/3 s to 1/100, 000 s
Obturador lentoYes
Día y nocheIR cut filter
Wide dynamic range120 dB
Ajuste de ánguloPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
DNR3D DNR

Lente
Lente2.8 mm to 12 mm
Auto-IrisNo
AperturaF1.6
EnfoqueNo
FOVHorizontal FOV 92.8° to 29°, vertical FOV 50.2° to 16.4°, diagonal FOV 109° to 32.3°
Montura del lenteØ14

Iluminador
Rango IRUp to 30 m
Longitud de onda850 nm

Red
Activador de alarmaMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD error, HDD full
Almacenamiento en redSupport built-in microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
APIONVIF (PROFILE S, PROFILE G), ISAPI
Vista en vivo simultáneaUp to 6 channels
Usuario/operadorUp to 32 users,3 levels: Administrator, Operator, and User
ClienteiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Navegador webIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Vídeo
Max. Resolución2560 × 1440
Compresión de vídeoMain stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG
Tipo H.264Baseline Profile/Main Profile/High Profile
Tipo H.265Main Profile
Vídeo bitrate32 Kbps to 8 Mbps

Conjunto de funciones inteligentes
Región de interés1 fixed region for main stream and sub-stream

Imagen
Mejora de la imagenBLC, 3D DNR
Ajuste de imagenSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Interruptor día/nocheAuto, scheduled, day, night
Main Stream Max. Frame Rate50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1280, 1280 × 720),60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1280, 1280 × 720)
Sub-stream Max. Frame Rate50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Interfaz
Interfaz de comunicación1 RJ45 10M/100M self-adaptive Ethernet port
Almacenamiento a bordoBuilt-in microSD/SDHC/SDXC slot, up to 128 GB

General
Versión del firmware5.5.52
Función generalOne-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
ReiniciarYes
Condiciones de inicio y funcionamiento-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
Fuente de alimentación12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3)
MaterialCamera body: metal, bottom base: plastic
DimensionesCamera: Ø 129.4 mm × 116.4 mm (5.1" × 4.6"),With package: Ø 170 mm × 150 mm (6.7" × 5.9")
Camera: 560 g (1.2 lb.),With package: 850g (1.9 lb.)
Power Consumption and Current12 VDC, 1 A, Max: 11 W,PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, Max: 12.5 W
Protección de la interfazIP67

Compresión estándar
H.264 +Main stream supports
H.265 +Main stream supports

Cámara

Sensor de imagen

1/3" progressive scan CMOS

Iluminación mínima

Color: 0.01 Lux @ (F1.2, AGC ON), 0.02 Lux @ (F1.6, AGC ON)

Velocidad de obturación

1/3 s to 1/100, 000 s

Obturador lento

Yes

Día y noche

IR cut filter

Wide dynamic range

120 dB

Ajuste de ángulo

Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

DNR

3D DNR

Lente

2.8 mm to 12 mm

Auto-Iris

Apertura

F1.6

Enfoque

FOV

Horizontal FOV 92.8° to 29°, vertical FOV 50.2° to 16.4°, diagonal FOV 109° to 32.3°

Montura del lente

Ø14

Iluminador

Rango IR

Up to 30 m

Longitud de onda

850 nm

Red

Activador de alarma

Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD error, HDD full

Almacenamiento en red

Support built-in microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

Protocolos

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Vista en vivo simultánea

Up to 6 channels

Usuario/operador

Up to 32 users,3 levels: Administrator, Operator, and User

Cliente

iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500

Navegador web

IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Vídeo

Max. Resolución

2560 × 1440

Compresión de vídeo

Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG

Tipo H.264

Baseline Profile/Main Profile/High Profile

Tipo H.265

Main Profile

Vídeo bitrate

32 Kbps to 8 Mbps

Conjunto de funciones inteligentes

Región de interés

1 fixed region for main stream and sub-stream

Imagen

Mejora de la imagen

BLC, 3D DNR

Ajuste de imagen

Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Interruptor día/noche

Auto, scheduled, day, night

Main Stream Max. Frame Rate

50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1280, 1280 × 720),60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1280, 1280 × 720)

Sub-stream Max. Frame Rate

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Interfaz

Interfaz de comunicación

1 RJ45 10M/100M self-adaptive Ethernet port

Almacenamiento a bordo

Built-in microSD/SDHC/SDXC slot, up to 128 GB

General

Versión del firmware

5.5.52

Función general

One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Reiniciar

Yes

Condiciones de inicio y funcionamiento

-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)

Fuente de alimentación

12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3)

Material

Camera body: metal, bottom base: plastic

Dimensiones

Camera: Ø 129.4 mm × 116.4 mm (5.1" × 4.6"),With package: Ø 170 mm × 150 mm (6.7" × 5.9")

Camera: 560 g (1.2 lb.),With package: 850g (1.9 lb.)

Power Consumption and Current

12 VDC, 1 A, Max: 11 W,PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, Max: 12.5 W

Protección de la interfaz

IP67

Compresión estándar

H.264 +

Main stream supports

H.265 +
