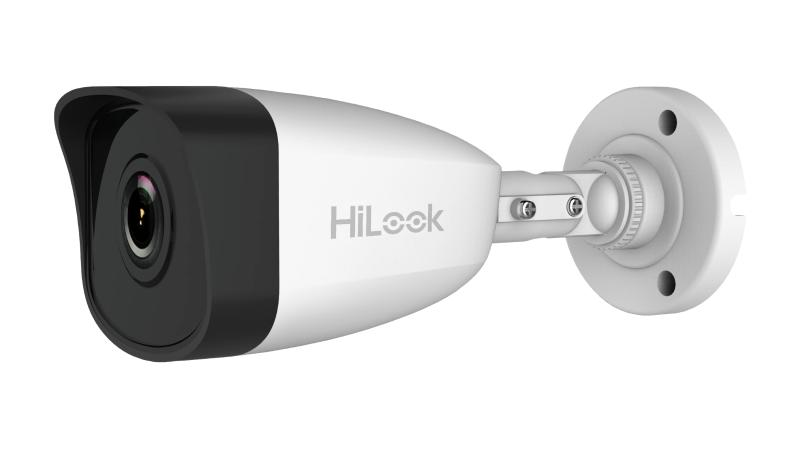

4 MP Fixed Bullet Network Camera

  • High quality imaging with 4 MP resolution
  • Efficient H.265+ compression technology to save bandwidth and storage
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Water and dust resistant (IP67)
  • 3D DNR technology delivers clean and sharp images
  • Easy installation with Power over Ethernet (PoE) technology
View Less
View more

Modelos disponibles:

IPC-B140H(2.8mm)(C)(HiLookSTD)
IPC-B140H(4mm)(C)(HiLookSTD)

Especificación

  • Cámara
  • Sensor de imagen1/3" progressive scan CMOS
  • Max. Resolución2560 × 1440
  • Iluminación mínimaColor: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
  • Tiempo de obturación1/3 s to 1/100, 000 s
  • Día y NocheIR cut filter
  • Ajuste de ánguloPan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
  • Lente
  • Focal Length & FOV2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7° 4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3°
  • Montura del lenteM12
  • EnfoqueFixed
  • AperturaF2.0
  • LenteFixed focal lens, 2.8 and 4 mm optional
  • Iris TypeFixed
  • Iluminador
  • Tipo de luz suplementariaIR
  • Rango de luz suplementariaUp to 30 m
  • IR Wavelength850 nm
  • Luz de suplemento inteligenteYes
  • Vídeo
  • Main stream50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (1920 × 1080, 1280 × 720)
  • Sub-stream50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Compresión de videoMain stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG
  • Vídeo bitrate32 Kbps to 8 Mbps
  • Tipo H.264Baseline Profile/Main Profile/High Profile
  • Tipo H.265Main Profile
  • Región de interés (ROI)1 fixed region for main stream
  • Red
  • ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
  • Vista en vivo simultáneaUp to 6 channels
  • APIOpen Network Video Interface, ISAPI
  • Usuario/operadorUp to 32 users. 3 levels: administrator, operator and user
  • ClienteiVMS-4200, Hik-Connect
  • Navegador webPlug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
  • Imagen
  • Configuración de imagenSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
  • Interruptor día/nocheAuto, Schedule, Day, Night
  • Wide Dynamic Range (WDR)120 dB
  • Mejora de la imagenBLC, 3D DNR
  • Interfaz
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Evento
  • Evento BásicoMotion detection, video tampering alarm, exception
  • LinkageUpload to FTP, notify surveillance center, send email
  • General
  • alimentación12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
  • Dimensión181.6 mm × 71.4 mm × 66.7 mm (7.1" × 2.8" × 2.6")
  • Dimensión del paquete216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
  • Approx. 270 g (0.6 lb.)
  • Con peso del paqueteApprox. 490 g (1.1 lb.)
  • Condiciones de almacenaje-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • Condiciones de inicio y funcionamiento-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • IdiomaEnglish, Ukrainian
  • Función generalAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Certificaciones
  • EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • SeguridadUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
  • AmbienteCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • ProtecciónIP67 (IEC 60529-2013)

Especificación

Especificación
Cámara
  • Sensor de imagen1/3" progressive scan CMOS
  • Max. Resolución2560 × 1440
  • Iluminación mínimaColor: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
  • Tiempo de obturación1/3 s to 1/100, 000 s
  • Día y NocheIR cut filter
  • Ajuste de ánguloPan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
Lente
  • Focal Length & FOV2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7° 4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3°
  • Montura del lenteM12
  • EnfoqueFixed
  • AperturaF2.0
  • LenteFixed focal lens, 2.8 and 4 mm optional
  • Iris TypeFixed
Iluminador
  • Tipo de luz suplementariaIR
  • Rango de luz suplementariaUp to 30 m
  • IR Wavelength850 nm
  • Luz de suplemento inteligenteYes
Vídeo
  • Main stream50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (1920 × 1080, 1280 × 720)
  • Sub-stream50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Compresión de videoMain stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG
  • Vídeo bitrate32 Kbps to 8 Mbps
  • Tipo H.264Baseline Profile/Main Profile/High Profile
  • Tipo H.265Main Profile
  • Región de interés (ROI)1 fixed region for main stream
Red
  • ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
  • Vista en vivo simultáneaUp to 6 channels
  • APIOpen Network Video Interface, ISAPI
  • Usuario/operadorUp to 32 users. 3 levels: administrator, operator and user
  • ClienteiVMS-4200, Hik-Connect
  • Navegador webPlug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
Imagen
  • Configuración de imagenSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
  • Interruptor día/nocheAuto, Schedule, Day, Night
  • Wide Dynamic Range (WDR)120 dB
  • Mejora de la imagenBLC, 3D DNR
Interfaz
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
Evento
  • Evento BásicoMotion detection, video tampering alarm, exception
  • LinkageUpload to FTP, notify surveillance center, send email
General
  • alimentación12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
  • Dimensión181.6 mm × 71.4 mm × 66.7 mm (7.1" × 2.8" × 2.6")
  • Dimensión del paquete216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
  • Approx. 270 g (0.6 lb.)
  • Con peso del paqueteApprox. 490 g (1.1 lb.)
  • Condiciones de almacenaje-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • Condiciones de inicio y funcionamiento-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • IdiomaEnglish, Ukrainian
  • Función generalAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Certificaciones
  • EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • SeguridadUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
  • AmbienteCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • ProtecciónIP67 (IEC 60529-2013)
