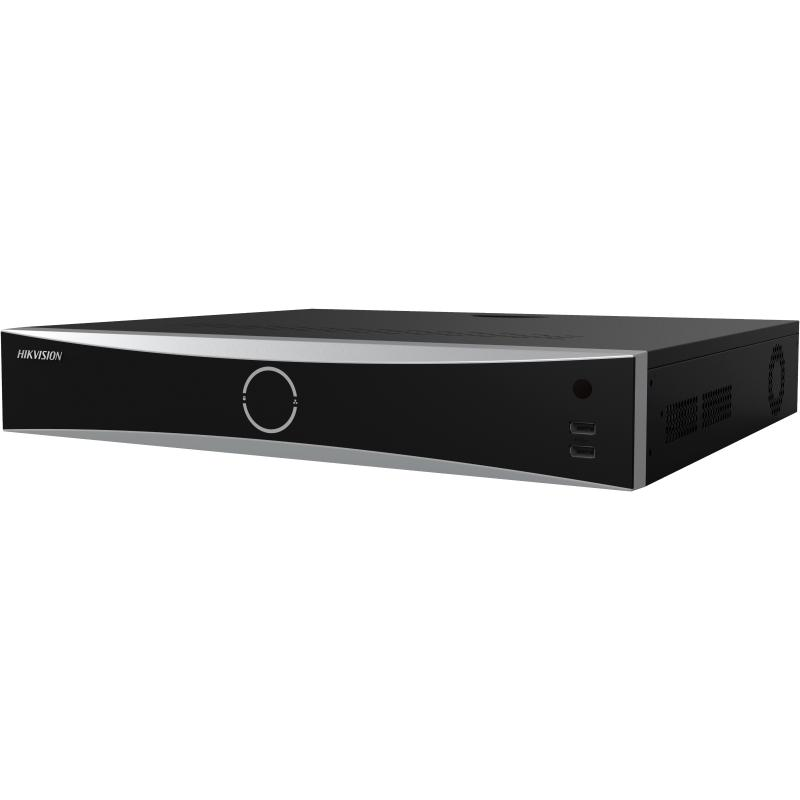

iDS-7716NXI-M4/X

16-ch 1.5U 8K DeepinMind NVR

Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP decoding capacity
H.265+/H.265/H.264+/H.264 video formats
Up to 16-ch IP cameras can be connected
Intelligent analytics based on deep learning algorithm
Up to 16-ch perimeter protection
Up to 16-ch facial recognition for video stream, or up to 16-ch facial recognition for face picture
Up to 12-ch video structuralization

View Less

Available models:

iDS-7716NXI-M4/X

Intelligent Analytics
AI by NVRFacial recognition, perimeter protection, video structuralization, throwing objects from building
AI by CameraFacial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection2.0, ANPR, people counting, VCA
Engine2, each engine can run an intelligent algorithm, engine mode is adjustable

Facial Recognition
Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
Face Picture LibraryUp to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 5,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
Face Picture Comparison (Captured from Camera)16-ch (8-ch for each engine); Comparison speed: 48 pictures per second
Facial Detection and Analytics Performance16-ch 2 MP (8-ch for each engine), up to 8 MP

Perimeter Protection
By NVR24-ch 2 MP (12-ch for each engine), up to 8 MP
By CameraAll channels

Video Structuralization
Structured Analysis12-ch 2 MP (6-ch for each engine), up to 8 MP
Face Picture LibraryUp to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 5,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
Face Picture Comparison16-ch; Comparison speed: 32 pictrues per second

Throwing Objects from Building
By NVR16-ch 2 MP (8-ch for each engine), up to 8 MP
By CameraAll channels

ANPR
By CameraAll channels
Plate AttributesVehicle brand, vehicle color, vehicle type
Vehicle AttributesPlate number, license plate color, license plate type

Video and Audio
IP Video Input16-ch Up to 32 MP resolution *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
Incoming Bandwidth256 Mbps
Outgoing Bandwidth256 Mbps
HDMI 1 Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
HDMI 2 Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
VGA Output1920 × 1080/60Hz
Video Output ModeHDMI1/VGA1 simultaneous output, HDMI1/HDMI2 independent output
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding
Decoding FormatH.265/H.265+/H.264/H.264+
Decoding Capability2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)
Synchronous Playback16-ch
Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

Network
Remote Connection128
Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
APIONVIF (profile S/G); SDK; ISAPI
Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Auxiliary Interface
SATA4 SATA interfaces; 3.5-inch HDD
eSATA1 eSATA interface
CapacityUp to 14 TB capacity for each HDD
Serial Interface1 RS-232, 2 RS-485 (full-duplex), 1 keyboard
USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out16/4

General
GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
Power Supply100 to 240 VAC, 50 to 60 Hz
Consumption≤ 50 W (without HDD)
Working Temperature-10 to 55° C (14 to 131° F)
Working Humidity10 to 90%
Dimension (W × D × H)445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")
Weight≤ 5 kg (without HDD, 11 lb.)

Certification
Obtained CertificationCE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
FCCPart 15 Subpart B, ANSI C63.4-2014
CEEN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020

Specification

Intelligent Analytics

AI by NVR

Facial recognition, perimeter protection, video structuralization, throwing objects from building

AI by Camera

Facial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection2.0, ANPR, people counting, VCA

Engine

2, each engine can run an intelligent algorithm, engine mode is adjustable

Facial Recognition

Facial Detection and Analytics

Face picture comparison, human face capture, face picture search

Face Picture Library

Up to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 5,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)

Face Picture Comparison (Captured from Camera)

16-ch (8-ch for each engine); Comparison speed: 48 pictures per second

Facial Detection and Analytics Performance

16-ch 2 MP (8-ch for each engine), up to 8 MP

Perimeter Protection

By NVR

24-ch 2 MP (12-ch for each engine), up to 8 MP

By Camera

All channels

Video Structuralization

Structured Analysis

12-ch 2 MP (6-ch for each engine), up to 8 MP

Face Picture Library

Face Picture Comparison

16-ch; Comparison speed: 32 pictrues per second

Throwing Objects from Building

By NVR

16-ch 2 MP (8-ch for each engine), up to 8 MP

By Camera

All channels

ANPR

By Camera

All channels

Plate Attributes

Vehicle brand, vehicle color, vehicle type

Vehicle Attributes

Plate number, license plate color, license plate type

Video and Audio

IP Video Input

16-ch Up to 32 MP resolution *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

Incoming Bandwidth

256 Mbps

Outgoing Bandwidth

256 Mbps

HDMI 1 Output

8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz

HDMI 2 Output

4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.

VGA Output

1920 × 1080/60Hz

Video Output Mode

HDMI1/VGA1 simultaneous output, HDMI1/HDMI2 independent output

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

Decoding Format

H.265/H.265+/H.264/H.264+

Decoding Capability

2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)

Synchronous Playback

16-ch

Recording Resolution

32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

Network

Remote Connection

128

Network Protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

API

ONVIF (profile S/G); SDK; ISAPI

Compatible Browser

IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version

Network Interface

2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Auxiliary Interface

SATA

4 SATA interfaces; 3.5-inch HDD

eSATA

1 eSATA interface

Capacity

Up to 14 TB capacity for each HDD

Serial Interface

1 RS-232, 2 RS-485 (full-duplex), 1 keyboard

USB Interface

Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

Alarm In/Out

16/4

General

GUI Language

English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian

Power Supply

100 to 240 VAC, 50 to 60 Hz

Consumption

≤ 50 W (without HDD)

Working Temperature

-10 to 55° C (14 to 131° F)

Working Humidity

10 to 90%

Dimension (W × D × H)

445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")

Weight

≤ 5 kg (without HDD, 11 lb.)

Certification

Obtained Certification

CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS

FCC

Part 15 Subpart B, ANSI C63.4-2014

EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
