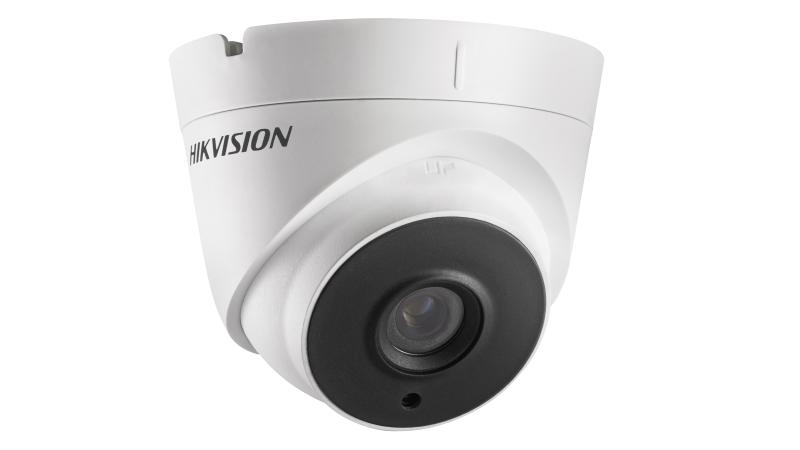

2 MP Fixed Turret Camera

  • 2 MP turret camera
  • EXIR 2.0: advanced infrared technology with 40 m IR distance
  • Water and dust resistant (IP66)

Available models:

DS-2CE56D0T-IT3(3.6mm)
DS-2CE56D0T-IT3(6mm)
DS-2CE56D0T-IT3(12mm)
DS-2CE56D0T-IT3(2.8mm)

Specification

  • Camera
  • Image Sensor2MP CMOS Image Sensor
  • Max. Resolution1920 (H) × 1080 (V)
  • Min. Illumination0.01 Lux @(F1.2, AGC ON),0 Lux with IR
  • Shutter Time1/25 (1/30) s to 1/50,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0 to 360 °, Tilt: 0 to 180 °, Rotation: 0 to 360 °
  • Signal SystemPAL/NTSC
  • Lens
  • Lens Type2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
  • Focal Length & FOV103 ° (2.8 mm), 82.2 ° (3.6 mm), 54 ° (6 mm), 37.7 ° (8 mm), 24.2° (12 mm)
  • Lens MountM12
  • Image
  • Image SettingsBrightness, Sharpness, DNR, Mirror
  • Frame RatePAL: 1080p@25fps,NTSC: 1080p@30fps
  • Day/Night ModeSmart/color/BW(Black and White)
  • Wide Dynamic Range (WDR)DWDR
  • Image EnhancementBLC
  • AGCLow/middle/high
  • Interface
  • Video OutputTVI only
  • General
  • DimensionΦ 110 mm × 93.2 mm(Φ 4.33" × 3.67")
  • Approx. 350 g (0.77 lb.)
  • Operating Condition-20 °C to 45 °C (-4 °F to 113 °F), Humidity 90% or less (non-condensing)
  • LanguageEnglish, Chinese
  • Power Supply12 VDC±15%
  • ConsumptionMax. 4 W
  • IR RangeUp to 40 m
  • Approval
  • ProtectionIP66

Specification
