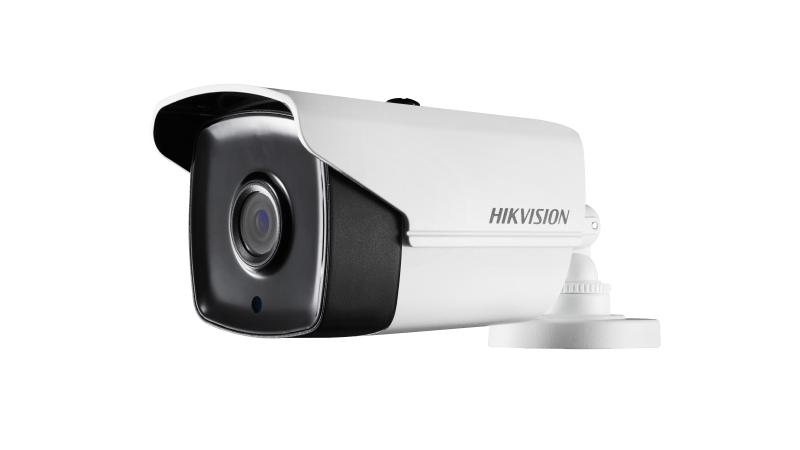

1 MP Fixed Bullet Camera

  • HD 720p bullet camera
  • EXIR 2.0: advanced infrared technology with 40 m IR distance
  • Water and dust resistant (IP66)

Specification

  • Camera
  • Image Sensor1MP CMOS
  • Max. Resolution1280 (H) × 720 (V)
  • Min. Illumination0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Day & NightIR Cut Filter
  • Angle AdjustmentPan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens TypeFixed focal lens, 3.6 mm, 2.8 mm, 6 mm, 8 mm, 12 mm, and 16mm optional
  • Focal Length & FOVAngle of View: 70.9°(3.6mm), 92°(2.8mm), 56.7°(6mm), 38.6°(8mm), 27.5°(12mm), 17.7°(16mm)
  • Lens MountM12
  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 40 m
  • Image
  • Frame Rate720p@25fps/720p@30fps
  • SNR>62dB
  • Interface
  • Video Output1 HD analog output
  • General
  • Power12 VDC±15%, max. 4W
  • Dimension86.22 mm × 82.05 mm × 220.13 mm (3.39" × 3.23" × 8.67")
  • Approx. 700 g (1.54 lb.)
  • Operating Condition-40 °C – 60 °C (-40 °F – 140 °F), humidity 90% or less (non-condensing)
  • Approval
  • ProtectionIP66
