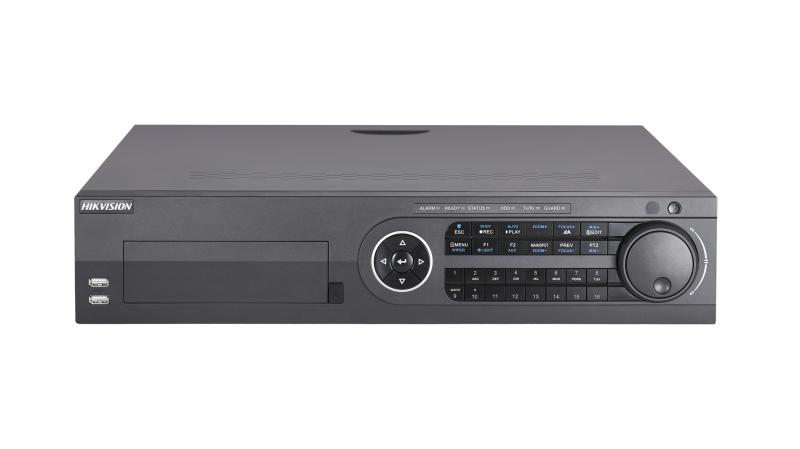

24-ch 5 MP 2U H.265 DVR

  • 24 channels and 8 HDDs 2U DVR
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 8 MP @ 8 fps, 5 MP @ 12 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 40 network cameras can be connected
  • Supports POS triggered recording and POS information overlay
  • Supports RAID mode for even more reliable data storage, effectively avoiding data loss risks
View Less
View more

Specification

  • Video and Audio
  • IP Video Input16-ch (up to 40-ch);Up to 8 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
  • Analog Video Input24-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • HDMI 1 Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • HDMI 2 Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • CVBS InputPAL/NTSC
  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Synchronous Playback16-ch
  • HDTVI Input8 MP, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
  • AHD Input5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input4 MP, 1080p25, 1080p30, 720p25, 720p30
  • Audio Output2-ch, RCA (Linear, 1 KΩ)
  • Audio Input16-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
  • Recording
  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
  • Frame RateMain stream:,8 MP@8fps/5 MP@12fps; 4 MP@15fps; 3 MP@18fps;,1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream:,WD1/4CIF/CIF@25fps (P)/30fps (N),
  • Video Bitrate32 Kbps to 10 Mbps
  • Dual-streamSupport
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711u
  • Audio Bitrate64 Kbps
  • Network
  • Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP
  • Remote Connection128
  • Network Interface2, RJ45 10M/100M/1000M self-adaptive Ethernet interface
  • Auxiliary Interface
  • SATA8 SATA interfaces
  • eSATASupport
  • CapacityUp to 10 TB capacity for each disk
  • Serial InterfaceRS-232, RS-485 (full-duplex), Keyboard
  • USB InterfaceFront panel: 2 × USB 2.0,Rear panel: 1 × USB 3.0,
  • Alarm In/Out16/8
  • General
  • Power Supply100 to 240 VAC
  • Consumption≤ 74 W
  • Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)440 × 470 × 90 mm (17.3 × 18.5 × 3.5 inch)
  • Weight≤ 10 kg (22.0 lb)

Specification

Specification
Video and Audio
  • IP Video Input16-ch (up to 40-ch);Up to 8 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
  • Analog Video Input24-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • HDMI 1 Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • HDMI 2 Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • CVBS InputPAL/NTSC
  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Synchronous Playback16-ch
  • HDTVI Input8 MP, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
  • AHD Input5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input4 MP, 1080p25, 1080p30, 720p25, 720p30
  • Audio Output2-ch, RCA (Linear, 1 KΩ)
  • Audio Input16-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
Recording
  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
  • Frame RateMain stream:,8 MP@8fps/5 MP@12fps; 4 MP@15fps; 3 MP@18fps;,1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream:,WD1/4CIF/CIF@25fps (P)/30fps (N),
  • Video Bitrate32 Kbps to 10 Mbps
  • Dual-streamSupport
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711u
  • Audio Bitrate64 Kbps
Network
  • Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP
  • Remote Connection128
  • Network Interface2, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface
  • SATA8 SATA interfaces
  • eSATASupport
  • CapacityUp to 10 TB capacity for each disk
  • Serial InterfaceRS-232, RS-485 (full-duplex), Keyboard
  • USB InterfaceFront panel: 2 × USB 2.0,Rear panel: 1 × USB 3.0,
  • Alarm In/Out16/8
General
  • Power Supply100 to 240 VAC
  • Consumption≤ 74 W
  • Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)440 × 470 × 90 mm (17.3 × 18.5 × 3.5 inch)
  • Weight≤ 10 kg (22.0 lb)
