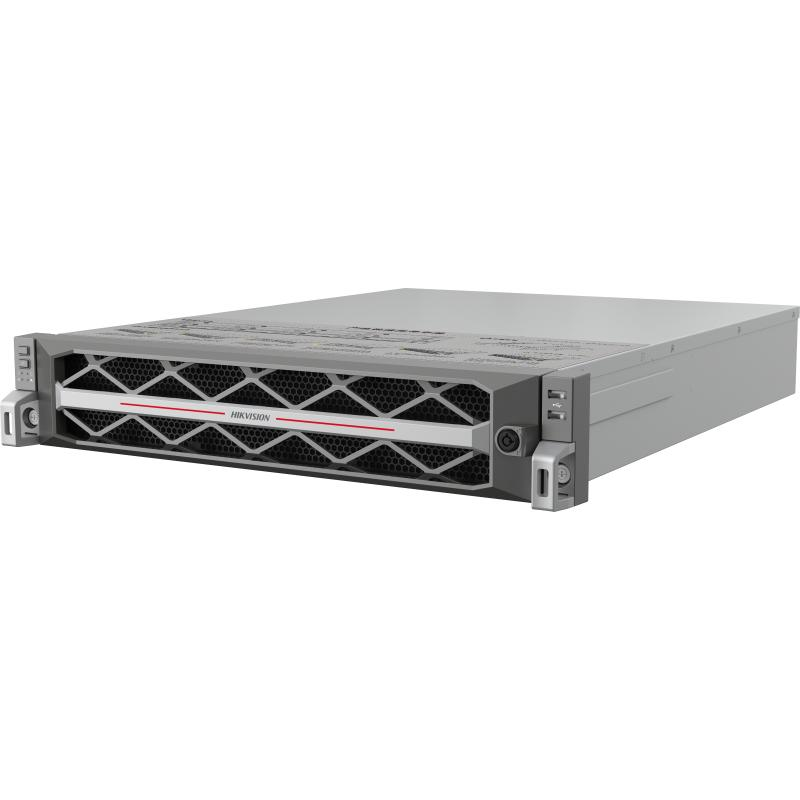

12-slot Cost-efficient Storage with 12 pcs 8TB SATA IOT HDD

  • Highly stable and easy-to-maintain hardware platform. 1 64-bit multi-core processor with 8GB cache, 4 gigabit ethernet ports, and the 2U chassis which can support 12 HDDs.
  • Disk inspection/repair and RAID optimisation. Supports HDD pre-screening, inspection, and repair to improve the efficiency of HDD. Supports RAID 0, 1, 5, 6, 10 and other RAID modes. Supports global hot spare, local hot spare replacement, and multiple data security protection.
  • User-friendly operation and maintenance interface. 4-step GUI configuration wizard helps users quickly complete the system configuration. GUI interface keeps user informed of device operation status in time, including network status, device status, storage status, etc.
  • Video streaming direct storage. Supports video streaming direct storage. Supports streaming video directly from network camera. Storage server and streaming media forwarding server can be omitted. Supports front-end access with RTSP, ONVIF and other protocols.
View Less
View more
Thông số sản phẩm
Sales Inquiry

Available models:

DS-A60212R-I
DS-A60212R-I/96/8T
Thông số sản phẩm

Specification

  • Performance Parameter
  • Video performance128-ch (768Mbps)
  • Hardware
  • Processor64-bit multi-core processor
  • Cache8 GB
  • Controller1
  • Disk Management
  • RAID TypeRAID 0, 1, 5, 6, 10
  • Disk Interface TypeSATA
  • Disk size4 TB/6 TB/ 8 TB
  • Disk typeEnterprise HDD
  • Hot swap diskSupported
  • Number of disk interfaces12
  • Storage Management
  • Disk managementDisk alarm
  • Recording Management
  • Recording modeTiming recording, manual recording
  • Video protectionLock key video, N+M protection, ANR, video loss alarm
  • Searching modeSearch by time and event
  • Downloading modeDownload via web
  • Network
  • ProtocolRTSP;ONVIF;HKSDK;HTTP
  • Access protocolSNMP,NTP,HTTP,HTTPS,IPv4,IPv6,SADP
  • Device Maintenance
  • Management modeLocal GUI，Web-based GUI, serial port CLI
  • Log downloadingDownload on web page
  • Alarm modeSound, email, web page
  • External Interface
  • Data network interface4, 1000M Ethernet interface
  • VGA1
  • COM1, RS-232
  • HDMI1
  • USBFront panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
  • eSATA Interface1
  • General specification
  • Chassis2U (19 inch)
  • Dimension (W × H × D)448× 87× 549mm
  • Weight (without HDDs)≤ 10.51kg
  • Power ModuleAC 100 to 240 V,redundant power supply
  • Rated power consumption550W
  • Working temperature0 °C to + 55 °C (32 °F to 131 °F)
  • Storage temperature-10°C to + 70 °C (14 °F to 158 °F)
  • Working humidity10%～90%
  • Storage humidity5%～90%
  • HDD
  • HDD ModelHikvision,HK728TAH,8T;
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Performance Parameter
Video performance
128-ch (768Mbps)
Hardware
Processor
64-bit multi-core processor
Cache
8 GB
Controller
1
Disk Management
RAID Type
RAID 0, 1, 5, 6, 10
Disk Interface Type
SATA
Disk size
4 TB/6 TB/ 8 TB
Disk type
Enterprise HDD
Hot swap disk
Supported
Number of disk interfaces
12
Storage Management
Disk management
Disk alarm
Recording Management
Recording mode
Timing recording, manual recording
Video protection
Lock key video, N+M protection, ANR, video loss alarm
Searching mode
Search by time and event
Downloading mode
Download via web
Network
Protocol
RTSP;ONVIF;HKSDK;HTTP
Access protocol
SNMP,NTP,HTTP,HTTPS,IPv4,IPv6,SADP
Device Maintenance
Management mode
Local GUI，Web-based GUI, serial port CLI
Log downloading
Download on web page
Alarm mode
Sound, email, web page
External Interface
Data network interface
4, 1000M Ethernet interface
VGA
1
COM
1, RS-232
HDMI
1
USB
Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
eSATA Interface
1
General specification
Chassis
2U (19 inch)
Dimension (W × H × D)
448× 87× 549mm
Weight (without HDDs)
≤ 10.51kg
Power Module
AC 100 to 240 V,redundant power supply
Rated power consumption
550W
Working temperature
0 °C to + 55 °C (32 °F to 131 °F)
Storage temperature
-10°C to + 70 °C (14 °F to 158 °F)
Working humidity
10%～90%
Storage humidity
5%～90%
HDD
HDD Model
Hikvision,HK728TAH,8T;
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Performance Parameter
  • Video performance128-ch (768Mbps)
Hardware
  • Processor64-bit multi-core processor
  • Cache8 GB
  • Controller1
Disk Management
  • RAID TypeRAID 0, 1, 5, 6, 10
  • Disk Interface TypeSATA
  • Disk size4 TB/6 TB/ 8 TB
  • Disk typeEnterprise HDD
  • Hot swap diskSupported
  • Number of disk interfaces12
Storage Management
  • Disk managementDisk alarm
Recording Management
  • Recording modeTiming recording, manual recording
  • Video protectionLock key video, N+M protection, ANR, video loss alarm
  • Searching modeSearch by time and event
  • Downloading modeDownload via web
Network
  • ProtocolRTSP;ONVIF;HKSDK;HTTP
  • Access protocolSNMP,NTP,HTTP,HTTPS,IPv4,IPv6,SADP
Device Maintenance
  • Management modeLocal GUI，Web-based GUI, serial port CLI
  • Log downloadingDownload on web page
  • Alarm modeSound, email, web page
External Interface
  • Data network interface4, 1000M Ethernet interface
  • VGA1
  • COM1, RS-232
  • HDMI1
  • USBFront panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
  • eSATA Interface1
General specification
  • Chassis2U (19 inch)
  • Dimension (W × H × D)448× 87× 549mm
  • Weight (without HDDs)≤ 10.51kg
  • Power ModuleAC 100 to 240 V,redundant power supply
  • Rated power consumption550W
  • Working temperature0 °C to + 55 °C (32 °F to 131 °F)
  • Storage temperature-10°C to + 70 °C (14 °F to 158 °F)
  • Working humidity10%～90%
  • Storage humidity5%～90%
HDD
  • HDD ModelHikvision,HK728TAH,8T;
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
