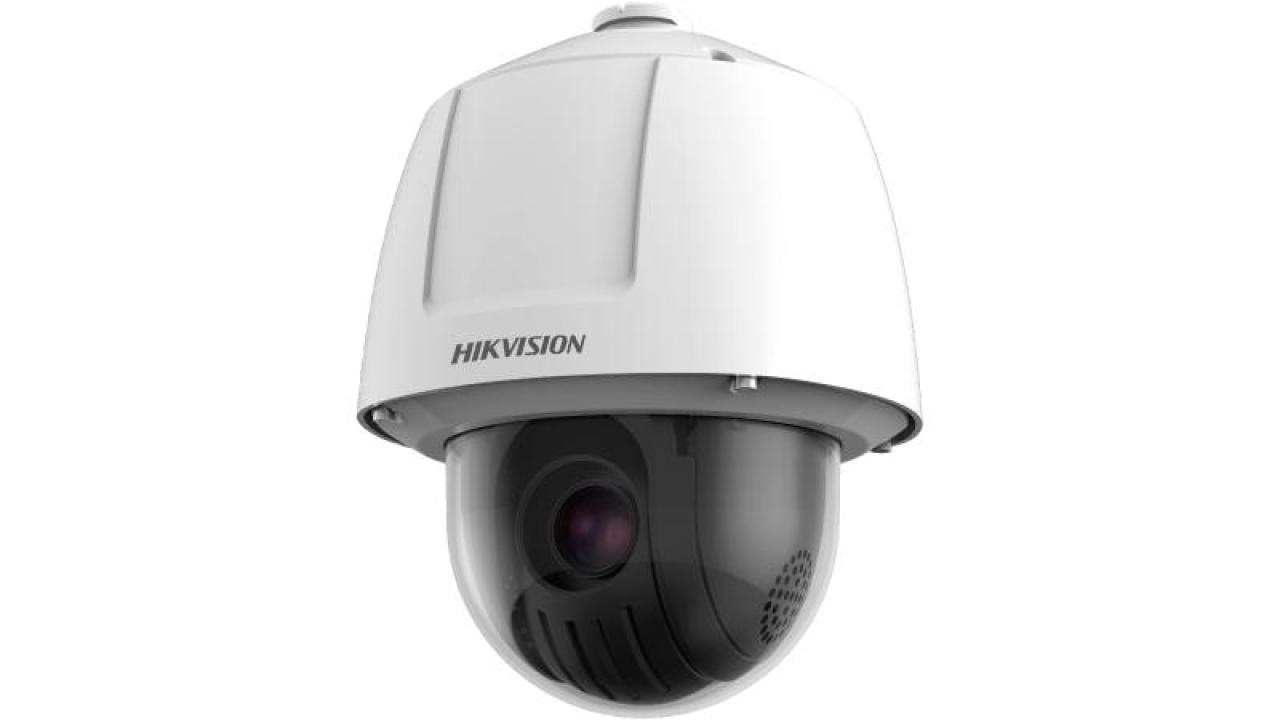

6-inch 2 MP 25X DarkFighter IR Network Speed Dome

1/1.8" Progressive Scan CMOS
Up to 1920 × 1080 resolution
Min. Illumination: Color: 0.002 Lux @ (F1.5, AGC ON) B/W: 0.0002 Lux @ ((F1.5, AGC ON)
25× optical zoom, 16× digital zoom
140dB WDR, 3D DNR, HLC
24 VAC & Hi-PoE
Support H.265+/H.265 video compression
Rapid focus
IP66

View Less

DS-2DF6225X-AEL(T3)

Specification
Resources
Accessories

Camera
Image Sensor1/1.8＂ progressive scan CMOS
Min. IlluminationColor: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002 Lux @ (F1.5, AGC ON)
Shutter Speed1/1s ~ 1/30,000s
Focusauto;semi-auto;manual
Day & NightICR
BLCyes
WDR140 dB WDR
HLCyes
3D DNRyes
EISyes
Regional Exposureyes
Regional Focusyes
White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
Digital Zoom16x
Optical Zoom25x
Privacy Maskup to 24 masks;polygon region ;mosaic mask ;mask color configurable
DORIDetect(25px/m)：2034.5m Observe(63px/m)：807.3m Recognize(125px/m)：406.9m Identify(250px/m)：203.4m
General Functionmirror, password protection, watermark, IP address filter

Lens
Focal Length5.9mm to 147.5mm, 25× Optical
Zoom Speedapprox. 4.8 s
FOV Horizontal field of view: 59.8° to 3.3° (wide-tele), Vertical field of view: 33.7° to 1.9° (wide-tele), Diagonal field of view: 65° to 3.8° (wide-tele)
ApertureAperture：F1.5-F3.4

PTZ
Movement Range (Pan)360°
Movement Range (Tilt)-15° to 90° (auto flip)
Pan Speedpan speed: configurable from 0.1° to 300°/s; preset speed: 540°/s
Tilt Speedtilt speed: configurable from 0.1° to 240°/s, preset speed 400°/s
Proportional Zoomyes
Presets300
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans, record time over 10 minutes for each scan
Power-off Memoryyes
Park Actionpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan
3D Positioningyes
PTZ Status Displayyes
Preset Freezingyes
Scheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output

Video
Max. Resolution1920 × 1080
Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)；25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)；30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video CompressionH.265;H.264;MJPEG
H.264 Typebaseline profile;main profile;high profile
H.265 Typemain profile
H.264+yes
H.265+yes
SVCyes
ROIdynamic face tracking;fixed region;dynamic license plate tracking

Audio
Audio CompressionG.722.1;G.711alaw;G.711ulaw;MP2L2;G.726;PCM

Smart Features
Face CaptureSupport detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.
Road TrafficSupport vehicle detection (license plate number,vehicle model, and vehicle color recognition)
Basic Eventalarm input and output;motion detection;video tampering alarm
Smart EventIntrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Audio Exception Detection;object removal detection;unattended baggage detection;vandal-proof alarm
Smart Trackingmanual tracking;auto-tracking;event tracking
Smart RecordANR;Dual-VCA
Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

Network
ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web BrowserIE 8 to 11, Chrome 31.0+, Firefox 30.0+, Safari 11+
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
APIONVIF (Profile S, Profile G, Profile T); ISAPI
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users. 3 levels: Administrator, Operator and User
Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering

Interface
Communication Interface1 RJ45 10 M/100 M Ethernet Interface; Hi-PoE
On-board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
Alarm Input7 alarm inputs
Alarm Output2 alarm outputs
Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Audio Output1 audio output, line level, impedance: 600 Ω
Video OutputNTSC;PAL;1.0V[p-p]/75Ω;BNC connector
RS-485HIKVISION, Pelco-P, Pelco-D, self-adaptive

General
Power24 VAC (max. 60 W, including max.10 W for heater) , Hi-PoE (max. 50 W, including max.10 W for heater)
Operating ConditionsTemperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%
DimensionsΦ 260.3 mm × 326 mm (Φ 10.25" × 12.8")
WeightApprox. 6 kg (13.23 lb)
Web Client Language32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Approval
ProtectionIK10;Lightning Protection, Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line,IEC61000-4-5;IP66

Camera

Image Sensor

1/1.8＂ progressive scan CMOS

Min. Illumination

Color: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002 Lux @ (F1.5, AGC ON)

Shutter Speed

1/1s ~ 1/30,000s

Focus

auto;semi-auto;manual

Day & Night

ICR

BLC

yes

WDR

140 dB WDR

HLC

yes

3D DNR

yes

EIS

yes

Regional Exposure

yes

Regional Focus

yes

White Balance

Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp

Digital Zoom

16x

Optical Zoom

25x

Privacy Mask

up to 24 masks;polygon region ;mosaic mask ;mask color configurable

DORI

Detect(25px/m)：2034.5m Observe(63px/m)：807.3m Recognize(125px/m)：406.9m Identify(250px/m)：203.4m

General Function

mirror, password protection, watermark, IP address filter

Lens

Focal Length

5.9mm to 147.5mm, 25× Optical

Zoom Speed

approx. 4.8 s

FOV

Horizontal field of view: 59.8° to 3.3° (wide-tele), Vertical field of view: 33.7° to 1.9° (wide-tele), Diagonal field of view: 65° to 3.8° (wide-tele)

Aperture

Aperture：F1.5-F3.4

PTZ

Movement Range (Pan)

360°

Movement Range (Tilt)

-15° to 90° (auto flip)

Pan Speed

pan speed: configurable from 0.1° to 300°/s; preset speed: 540°/s

Tilt Speed

tilt speed: configurable from 0.1° to 240°/s, preset speed 400°/s

Proportional Zoom

yes

Presets

300

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans, record time over 10 minutes for each scan

Power-off Memory

yes

Park Action

preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan

3D Positioning

yes

PTZ Status Display

yes

Preset Freezing

yes

Scheduled Task

preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output

Video

Max. Resolution

1920 × 1080

Main Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)；25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)；30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression

H.265;H.264;MJPEG

H.264 Type

baseline profile;main profile;high profile

H.265 Type

main profile

H.264+

yes

H.265+

yes

SVC

yes

ROI

dynamic face tracking;fixed region;dynamic license plate tracking

Audio

Audio Compression

G.722.1;G.711alaw;G.711ulaw;MP2L2;G.726;PCM

Smart Features

Face Capture

Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.

Road Traffic

Support vehicle detection (license plate number,vehicle model, and vehicle color recognition)

Basic Event

alarm input and output;motion detection;video tampering alarm

Smart Event

Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Audio Exception Detection;object removal detection;unattended baggage detection;vandal-proof alarm

Smart Tracking

manual tracking;auto-tracking;event tracking

Smart Record

ANR;Dual-VCA

Alarm Linkage

Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

Network

Client

iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect

Web Browser

IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Safari 11+

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour

API

ONVIF (Profile S, Profile G, Profile T); ISAPI

Simultaneous Live View

Up to 20 channels

User/Host

Up to 32 users. 3 levels: Administrator, Operator and User

Security Measures

User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering

Interface

Communication Interface

1 RJ45 10 M/100 M Ethernet Interface; Hi-PoE

On-board Storage

Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR

Alarm Input

7 alarm inputs

Alarm Output

2 alarm outputs

Audio Input

1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%

Audio Output

1 audio output, line level, impedance: 600 Ω

Video Output

NTSC;PAL;1.0V[p-p]/75Ω;BNC connector

RS-485

HIKVISION, Pelco-P, Pelco-D, self-adaptive

General

Power

24 VAC (max. 60 W, including max.10 W for heater) , Hi-PoE (max. 50 W, including max.10 W for heater)

Operating Conditions

Temperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%

Dimensions

Φ 260.3 mm × 326 mm (Φ 10.25" × 12.8")

Weight

Approx. 6 kg (13.23 lb)

Web Client Language

32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Approval

Protection

IK10;Lightning Protection, Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line,IEC61000-4-5;IP66
