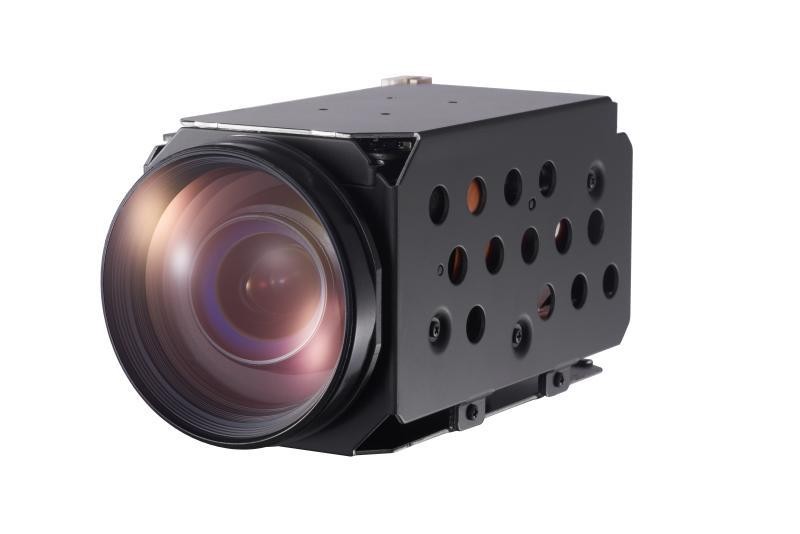

Network Zoom Camera

  • High quality imaging with 8 MP resolution
  • 30x optical zoom provides close up views over expansive areas
  • Easy to connet to speed domes and PTZ camera
View Less
View more
Thông số sản phẩm
Sales Inquiry
DS-2ZMN3012
Thông số sản phẩm

Specification

  • Lens
  • Zoom SpeedApprox. 4.6s (Optical, Wide-Tele)
  • Working Distance10mm to 1500mm (Wide-Tele)
  • Aperture RangeF1.5 to F4.3
  • Focal Length8.1mm to 243mm, 30× optical
  • Field of View56.1° to 2.6° (Wide-Tele)
  • Video CompressionH.264/MJPEG
  • Network
  • Network StorageSupports microSD memory card
  • ProtocolsTCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, FTP, 802.1x, QoS, HTTPS, IPv6 (SIP, SRTP optional)
  • APIONVIF, PSIA, CGI, ISAPI
  • Security MeasuresPassword Protection, Multiple User Access Control
  • Alarm LinkageMotion Detection, Tampering Alarm, Storage Full, Storage Exception
  • Outward Interface36pin FFC(including Network Interface, RS485, RS232, CVBS, SDHC, Alarm In/Out, Line In/Out, Power Supply)
  • CommunicationRS232 Interface, HIKVISION Protocol, RS485 Interface, Pelco Protocol
  • Main Stream50HZ: 25fps (4096×2160), 60HZ: 30fps (4096×2160),50HZ: 25fps (3840×2160), 60HZ: 30fps (3840×2160),50HZ: 25fps (1920×1080), 60HZ: 30fps (1920×1080)
  • Camera Module
  • 3D DNRYes
  • Image Sensor2/3" Progressive Scan CMOS
  • Min. IlluminationColor: 0.005Lux @ (F1.6, AGC ON),B/W: 0.0005Lux @ (F1.6, AGC ON)
  • White BalanceAuto 1/Auto 2/Indoor/Outdoor/Manual/Sodium Lamp/Fluorescent Lamp
  • Gain16 levels adjustable
  • Shutter Time1/1 sec to 1/30,000 sec
  • Day & NightICR
  • Digital Zoom12x
  • WDRYes
  • BLCYes
  • Function
  • Focus ModeAuto/Manual/One Touch
  • General
  • Dimensions63mm×67mm×140.3mm (2.48″×2.64″×5.52″)
  • Weight560g (1.23lb)
  • Power ConsumptionStatic: 2.5W, Dynamic: 4.5W
  • PowerDC12V ±10%
  • Working EnvironmentTemperature: -10 °C to 60 °C (14°F to 140°F),Humidity: ≤90%
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Lens
Zoom Speed
Approx. 4.6s (Optical, Wide-Tele)
Working Distance
10mm to 1500mm (Wide-Tele)
Aperture Range
F1.5 to F4.3
Focal Length
8.1mm to 243mm, 30× optical
Field of View
56.1° to 2.6° (Wide-Tele)
Video Compression
H.264/MJPEG
Network
Network Storage
Supports microSD memory card
Protocols
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, FTP, 802.1x, QoS, HTTPS, IPv6 (SIP, SRTP optional)
API
ONVIF, PSIA, CGI, ISAPI
Security Measures
Password Protection, Multiple User Access Control
Alarm Linkage
Motion Detection, Tampering Alarm, Storage Full, Storage Exception
Outward Interface
36pin FFC(including Network Interface, RS485, RS232, CVBS, SDHC, Alarm In/Out, Line In/Out, Power Supply)
Communication
RS232 Interface, HIKVISION Protocol, RS485 Interface, Pelco Protocol
Main Stream
50HZ: 25fps (4096×2160), 60HZ: 30fps (4096×2160),50HZ: 25fps (3840×2160), 60HZ: 30fps (3840×2160),50HZ: 25fps (1920×1080), 60HZ: 30fps (1920×1080)
Camera Module
3D DNR
Yes
Image Sensor
2/3" Progressive Scan CMOS
Min. Illumination
Color: 0.005Lux @ (F1.6, AGC ON),B/W: 0.0005Lux @ (F1.6, AGC ON)
White Balance
Auto 1/Auto 2/Indoor/Outdoor/Manual/Sodium Lamp/Fluorescent Lamp
Gain
16 levels adjustable
Shutter Time
1/1 sec to 1/30,000 sec
Day & Night
ICR
Digital Zoom
12x
WDR
Yes
BLC
Yes
Function
Focus Mode
Auto/Manual/One Touch
General
Dimensions
63mm×67mm×140.3mm (2.48″×2.64″×5.52″)
Weight
560g (1.23lb)
Power Consumption
Static: 2.5W, Dynamic: 4.5W
Power
DC12V ±10%
Working Environment
Temperature: -10 °C to 60 °C (14°F to 140°F),Humidity: ≤90%
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Lens
  • Zoom SpeedApprox. 4.6s (Optical, Wide-Tele)
  • Working Distance10mm to 1500mm (Wide-Tele)
  • Aperture RangeF1.5 to F4.3
  • Focal Length8.1mm to 243mm, 30× optical
  • Field of View56.1° to 2.6° (Wide-Tele)
  • Video CompressionH.264/MJPEG
Network
  • Network StorageSupports microSD memory card
  • ProtocolsTCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, FTP, 802.1x, QoS, HTTPS, IPv6 (SIP, SRTP optional)
  • APIONVIF, PSIA, CGI, ISAPI
  • Security MeasuresPassword Protection, Multiple User Access Control
  • Alarm LinkageMotion Detection, Tampering Alarm, Storage Full, Storage Exception
  • Outward Interface36pin FFC(including Network Interface, RS485, RS232, CVBS, SDHC, Alarm In/Out, Line In/Out, Power Supply)
  • CommunicationRS232 Interface, HIKVISION Protocol, RS485 Interface, Pelco Protocol
  • Main Stream50HZ: 25fps (4096×2160), 60HZ: 30fps (4096×2160),50HZ: 25fps (3840×2160), 60HZ: 30fps (3840×2160),50HZ: 25fps (1920×1080), 60HZ: 30fps (1920×1080)
Camera Module
  • 3D DNRYes
  • Image Sensor2/3" Progressive Scan CMOS
  • Min. IlluminationColor: 0.005Lux @ (F1.6, AGC ON),B/W: 0.0005Lux @ (F1.6, AGC ON)
  • White BalanceAuto 1/Auto 2/Indoor/Outdoor/Manual/Sodium Lamp/Fluorescent Lamp
  • Gain16 levels adjustable
  • Shutter Time1/1 sec to 1/30,000 sec
  • Day & NightICR
  • Digital Zoom12x
  • WDRYes
  • BLCYes
Function
  • Focus ModeAuto/Manual/One Touch
General
  • Dimensions63mm×67mm×140.3mm (2.48″×2.64″×5.52″)
  • Weight560g (1.23lb)
  • Power ConsumptionStatic: 2.5W, Dynamic: 4.5W
  • PowerDC12V ±10%
  • Working EnvironmentTemperature: -10 °C to 60 °C (14°F to 140°F),Humidity: ≤90%
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
