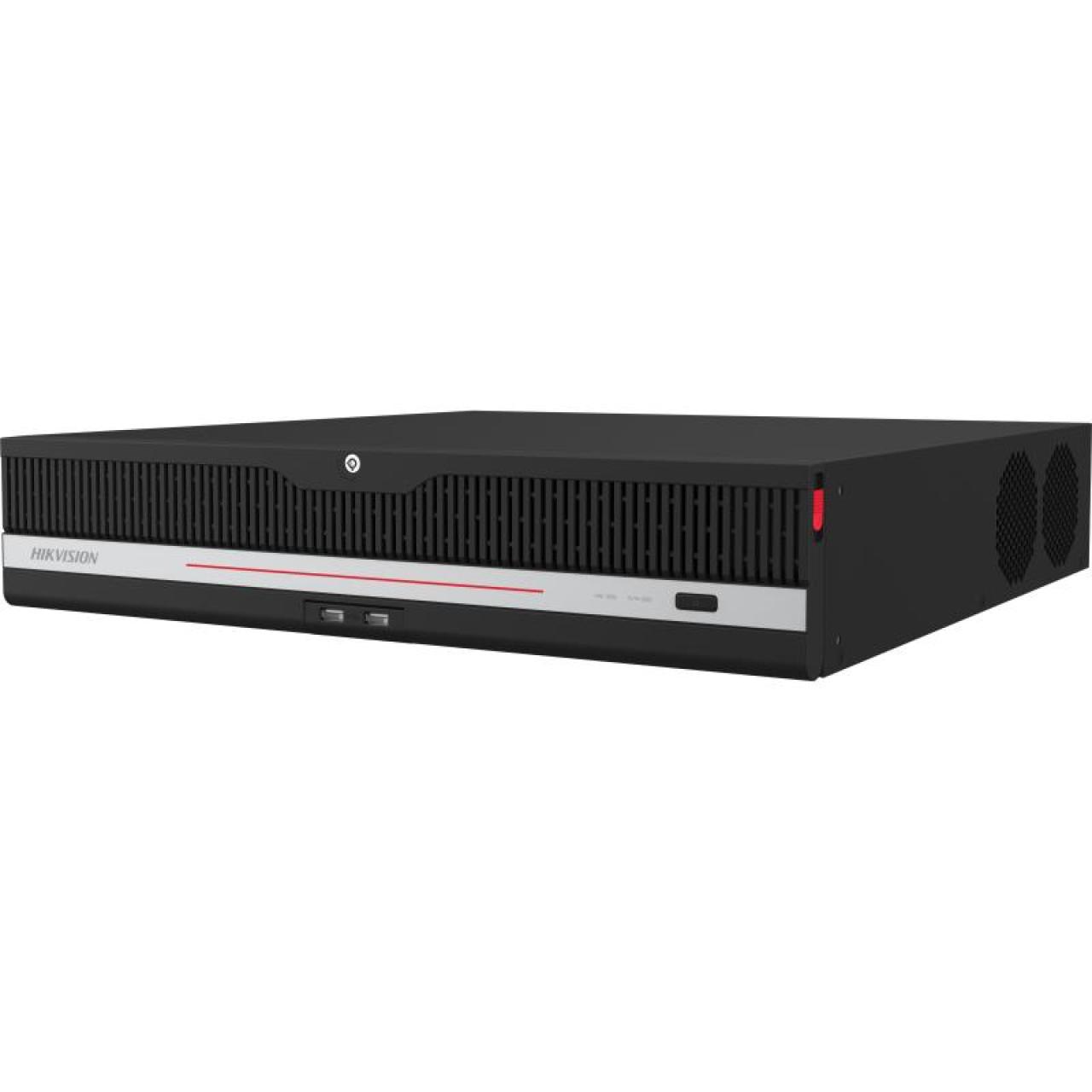

64-ch 2U 8K VPro NVR

  • Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 64-ch IP cameras can be connected
  • Intelligent analytics based on deep learning algorithm
  • Self-learning algorithm reduces perimeter protection false alarms
  • Up to 16-ch facial recognition for video stream, or up to 48-ch facial recognition for face picture
  • Up to 12-ch video structuralization
  • Redundant power supply
  • Up to 8-ch IP speakers can be connected

View Less
View more
Thông số sản phẩm
Sales Inquiry

Available models:

DS-9664NXI-M8R/VPro
DS-9664NXI-M8R/VPro
Thông số sản phẩm

Specification

  • Intelligent Analytics
  • AI by NVRFacial recognition, perimeter protection, video structuralization
  • AI by CameraFacial recognition, perimeter protection, video structuralization, AcuSearch, motion detection2.0, ANPR, people counting, VCA
  • Engine2, each engine can run an intelligent algorithm, engine mode is adjustable
  • Facial Recognition
  • Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
  • Face Picture LibraryUp to 32 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 10,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
  • Face Picture Comparison (Captured from Camera)48-ch (24-ch for each engine); Comparison speed: 48 pictures per second
  • Facial Detection and Analytics Performance16-ch 2 MP (8-ch for each engine), up to 8 MP
  • AcuSearch
  • By NVRup to 8-ch,up to 691,200 targets/day
  • By CameraAll channels ,up to 691,200 targets/day The camera should enable AcuSearch function
  • Perimeter Protection
  • By NVRperimeter protection powered by self-learning : 12-ch 2 MP or 8-ch 4MP or 4-ch 8MP perimeter protection without self-learning : 24-ch 2 MP or 16ch-4MP or 8-ch 8MP
  • By Cameraperimeter protection powered by self-learning with AcuSense cameras: All channels
  • Self-Learning
  • Perimeter ProtectionAll channels; Analysis speed: 4 pictures per second; Note: Enabling self-learning would occupy an engine.
  • Video Structuralization
  • Structured Analysis12-ch 2 MP (6-ch for each engine), up to 8 MP
  • Face Picture LibraryUp to 32 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 10,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
  • Face Picture Comparison16-ch; Comparison speed: 32 pictures per second
  • ANPR
  • By CameraAll channels
  • Plate AttributesPlate number, license plate color, license plate type
  • Vehicle AttributesVehicle brand, vehicle color, vehicle type
  • Video and Audio
  • IP Video Input64-ch Up to 32 MP resolution
  • Incoming Bandwidth400 Mbps
  • Outgoing Bandwidth400 Mbps
  • HDMI 1 Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
  • HDMI 2 Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
  • Incoming Bandwidth (RAID Mode)400 Mbps
  • Outgoing Bandwidth (RAID mode)400 Mbps
  • VGA 1 Output1920 × 1080/60Hz
  • VGA 2 Output1920 × 1080/60Hz
  • Video Output ModeHDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output
  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Audio Output2-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
  • Decoding
  • Decoding FormatH.265/H.265+/H.264/H.264+
  • Decoding Capability2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)
  • Synchronous Playback16-ch
  • Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
  • Network
  • Remote Connection128
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
  • APIONVIF (profile S/G); SDK; ISAPI
  • Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
  • Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • Camera Access ProtocolONVIF(Version 2.5), RTSP
  • RAID
  • RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10
  • Auxiliary Interface
  • Ctrl 12VControllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9.
  • DC 12V12 VDC, 1 A power output
  • SATA8 SATA interfaces; 3.5-inch HDD
  • eSATA1 eSATA interface
  • CapacityUp to 16 TB capacity for each HDD
  • Serial Interface1 RS-232, 1 RS-485 (full-duplex)
  • USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
  • Alarm In/Out16/9
  • General
  • GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
  • Power Supply100 to 240 VAC, 50 to 60 Hz, redundant power supply
  • Consumption≤ 50 W (without HDD)
  • Working Temperature-10 to 55°C (14 to 131° F)
  • Working Humidity10 to 90%
  • Dimension (W × D × H)445 × 540 × 93 mm ( 17.5"× 21.3" × 3.7")
  • Weight≤ 10 kg (without HDD, 28.7 lb.)
  • Certification
  • Obtained CertificationCE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
  • CEEN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Intelligent Analytics
AI by NVR
Facial recognition, perimeter protection, video structuralization
AI by Camera
Facial recognition, perimeter protection, video structuralization, AcuSearch, motion detection2.0, ANPR, people counting, VCA
Engine
2, each engine can run an intelligent algorithm, engine mode is adjustable
Facial Recognition
Facial Detection and Analytics
Face picture comparison, human face capture, face picture search
Face Picture Library
Up to 32 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 10,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
Face Picture Comparison (Captured from Camera)
48-ch (24-ch for each engine); Comparison speed: 48 pictures per second
Facial Detection and Analytics Performance
16-ch 2 MP (8-ch for each engine), up to 8 MP
AcuSearch
By NVR
up to 8-ch,up to 691,200 targets/day
By Camera
All channels ,up to 691,200 targets/day The camera should enable AcuSearch function
Perimeter Protection
By NVR
perimeter protection powered by self-learning : 12-ch 2 MP or 8-ch 4MP or 4-ch 8MP perimeter protection without self-learning : 24-ch 2 MP or 16ch-4MP or 8-ch 8MP
By Camera
perimeter protection powered by self-learning with AcuSense cameras: All channels
Self-Learning
Perimeter Protection
All channels; Analysis speed: 4 pictures per second; Note: Enabling self-learning would occupy an engine.
Video Structuralization
Structured Analysis
12-ch 2 MP (6-ch for each engine), up to 8 MP
Face Picture Library
Up to 32 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 10,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
Face Picture Comparison
16-ch; Comparison speed: 32 pictures per second
ANPR
By Camera
All channels
Plate Attributes
Plate number, license plate color, license plate type
Vehicle Attributes
Vehicle brand, vehicle color, vehicle type
Video and Audio
IP Video Input
64-ch Up to 32 MP resolution
Incoming Bandwidth
400 Mbps
Outgoing Bandwidth
400 Mbps
HDMI 1 Output
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
HDMI 2 Output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
Incoming Bandwidth (RAID Mode)
400 Mbps
Outgoing Bandwidth (RAID mode)
400 Mbps
VGA 1 Output
1920 × 1080/60Hz
VGA 2 Output
1920 × 1080/60Hz
Video Output Mode
HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output
2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 k Ω)
Decoding
Decoding Format
H.265/H.265+/H.264/H.264+
Decoding Capability
2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)
Synchronous Playback
16-ch
Recording Resolution
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
Network
Remote Connection
128
Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
API
ONVIF (profile S/G); SDK; ISAPI
Compatible Browser
IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
Network Interface
2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Camera Access Protocol
ONVIF(Version 2.5), RTSP
RAID
RAID Type
RAID0, RAID1, RAID5, RAID6, RAID10
Auxiliary Interface
Ctrl 12V
Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9.
DC 12V
12 VDC, 1 A power output
SATA
8 SATA interfaces; 3.5-inch HDD
eSATA
1 eSATA interface
Capacity
Up to 16 TB capacity for each HDD
Serial Interface
1 RS-232, 1 RS-485 (full-duplex)
USB Interface
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out
16/9
General
GUI Language
English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
Power Supply
100 to 240 VAC, 50 to 60 Hz, redundant power supply
Consumption
≤ 50 W (without HDD)
Working Temperature
-10 to 55°C (14 to 131° F)
Working Humidity
10 to 90%
Dimension (W × D × H)
445 × 540 × 93 mm ( 17.5"× 21.3" × 3.7")
Weight
≤ 10 kg (without HDD, 28.7 lb.)
Certification
Obtained Certification
CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
CE
EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
