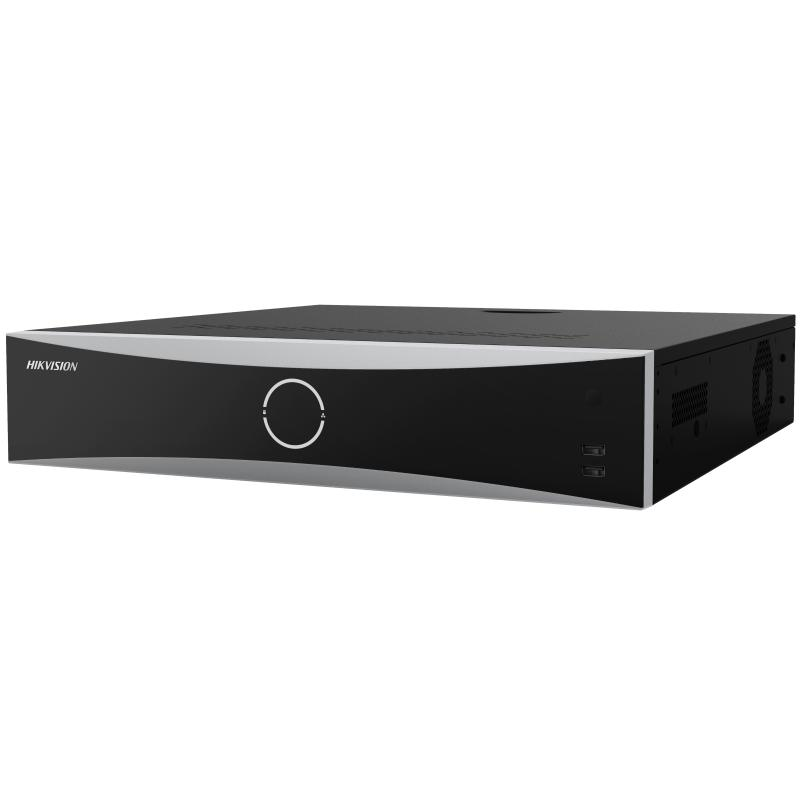

32-ch 2U 4K K Series AcuSense NVR

  • Up to 32-ch IP camera inputs
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 2-ch @ 12MP or 3-ch @ 8MP or 6-ch @ 4MP or 12-ch @ 1080P decoding capacity
  • Up to 256 Mbps incoming bandwidth
  • 2 HDMI (different source) and 2 VGA (different source) interfaces
  • 8 HDD can be used for continuous video recording
  • Intelligent analytics based on deep learning algorithm

View Less
View more
Thông số sản phẩm
Sales Inquiry

Available models:

DS-8632NXI-K8
DS-8632NXI-K8
Thông số sản phẩm

Specification

  • Facial Recognition
  • Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
  • Face Picture LibraryUp to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
  • Facial Detection and Analytics Performance1-ch human face capture (HD network camera, up to 8 MP, H.264/H.265)
  • Face Picture Comparison4-ch
  • Motion Detection 2.0
  • By Device All channels, 4 MP video analysis for human and vehicle recognition to reduce false alarm
  • By Camera All channels
  • Perimeter Protection
  • Human/Vehicle Analysis2-ch, 4 MP (HD network camera, up to 8 MP, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
  • Video and Audio
  • IP Video Input32-ch
  • Incoming Bandwidth256 Mbps
  • Outgoing Bandwidth160 Mbps
  • HDMI 1 Output4K (3840×2160)/60 Hz, 4K (3840×2160)/30 Hz, 1920×1080/60 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz
  • HDMI 2 Output1920×1080p/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz
  • VGA 1 Output1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
  • VGA 2 Output1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
  • Video Output ModeHDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
  • Audio Output2-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
  • Decoding
  • Decoding FormatH.265+/H.265/H.264+/H.264
  • Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Synchronous playback16-ch
  • Decoding CapabilityAI on: 1-ch@12MP (30fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p(30 fps) AI off: 2-ch@12MP (30fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p(30 fps)
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC
  • Network
  • Remote Connection128-ch
  • Network ProtocolTCP/IP, DHCP, IPv4, Hik-Connect, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • Auxiliary Interface
  • Serial Interface1 RS-232, 1 RS-485
  • SATA8 SATA interfaces
  • eSATA1 eSATA interface
  • CapacityUp to 10 TB capacity for each disk
  • Alarm In/Out16/9, the 9th alarm supports control 12V.
  • USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
  • Power output 12V DC
  • General
  • Power Supply100 to 240 VAC, 50 to 60 Hz
  • Consumption≤ 30 W (without HDD)
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10 to 90 %
  • Dimension (W × D × H)445×476×95 mm (17.5"×18.7"×3.7")
  • Weight≤ 8 kg (17.6 lb)
  • Certification
  • Obtained CertificationCE, FCC, CB, IC, RCM, KCC, ICE-003
  • FCCPart 15 Subpart B, ANSI C63.4-2014
  • CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Facial Recognition
Facial Detection and Analytics
Face picture comparison, human face capture, face picture search
Face Picture Library
Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
Facial Detection and Analytics Performance
1-ch human face capture (HD network camera, up to 8 MP, H.264/H.265)
Face Picture Comparison
4-ch
Motion Detection 2.0
By Device
All channels, 4 MP video analysis for human and vehicle recognition to reduce false alarm
By Camera
All channels
Perimeter Protection
Human/Vehicle Analysis
2-ch, 4 MP (HD network camera, up to 8 MP, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
Video and Audio
IP Video Input
32-ch
Incoming Bandwidth
256 Mbps
Outgoing Bandwidth
160 Mbps
HDMI 1 Output
4K (3840×2160)/60 Hz, 4K (3840×2160)/30 Hz, 1920×1080/60 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz
HDMI 2 Output
1920×1080p/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz
VGA 1 Output
1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA 2 Output
1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
Video Output Mode
HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
Audio Output
2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
Decoding Format
H.265+/H.265/H.264+/H.264
Recording Resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback
16-ch
Decoding Capability
AI on: 1-ch@12MP (30fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p(30 fps) AI off: 2-ch@12MP (30fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p(30 fps)
Stream Type
Video, Video & Audio
Audio Compression
G.711ulaw/G.711alaw/G.722/G.726/AAC
Network
Remote Connection
128-ch
Network Protocol
TCP/IP, DHCP, IPv4, Hik-Connect, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface
2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Auxiliary Interface
Serial Interface
1 RS-232, 1 RS-485
SATA
8 SATA interfaces
eSATA
1 eSATA interface
Capacity
Up to 10 TB capacity for each disk
Alarm In/Out
16/9, the 9th alarm supports control 12V.
USB Interface
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Power output
12V DC
General
Power Supply
100 to 240 VAC, 50 to 60 Hz
Consumption
≤ 30 W (without HDD)
Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity
10 to 90 %
Dimension (W × D × H)
445×476×95 mm (17.5"×18.7"×3.7")
Weight
≤ 8 kg (17.6 lb)
Certification
Obtained Certification
CE, FCC, CB, IC, RCM, KCC, ICE-003
FCC
Part 15 Subpart B, ANSI C63.4-2014
CE
EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Facial Recognition
  • Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
  • Face Picture LibraryUp to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
  • Facial Detection and Analytics Performance1-ch human face capture (HD network camera, up to 8 MP, H.264/H.265)
  • Face Picture Comparison4-ch
Motion Detection 2.0
  • By Device All channels, 4 MP video analysis for human and vehicle recognition to reduce false alarm
  • By Camera All channels
Perimeter Protection
  • Human/Vehicle Analysis2-ch, 4 MP (HD network camera, up to 8 MP, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
Video and Audio
  • IP Video Input32-ch
  • Incoming Bandwidth256 Mbps
  • Outgoing Bandwidth160 Mbps
  • HDMI 1 Output4K (3840×2160)/60 Hz, 4K (3840×2160)/30 Hz, 1920×1080/60 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz
  • HDMI 2 Output1920×1080p/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz
  • VGA 1 Output1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
  • VGA 2 Output1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
  • Video Output ModeHDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
  • Audio Output2-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
  • Decoding FormatH.265+/H.265/H.264+/H.264
  • Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Synchronous playback16-ch
  • Decoding CapabilityAI on: 1-ch@12MP (30fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p(30 fps) AI off: 2-ch@12MP (30fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p(30 fps)
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC
Network
  • Remote Connection128-ch
  • Network ProtocolTCP/IP, DHCP, IPv4, Hik-Connect, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Auxiliary Interface
  • Serial Interface1 RS-232, 1 RS-485
  • SATA8 SATA interfaces
  • eSATA1 eSATA interface
  • CapacityUp to 10 TB capacity for each disk
  • Alarm In/Out16/9, the 9th alarm supports control 12V.
  • USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
  • Power output 12V DC
General
  • Power Supply100 to 240 VAC, 50 to 60 Hz
  • Consumption≤ 30 W (without HDD)
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10 to 90 %
  • Dimension (W × D × H)445×476×95 mm (17.5"×18.7"×3.7")
  • Weight≤ 8 kg (17.6 lb)
Certification
  • Obtained CertificationCE, FCC, CB, IC, RCM, KCC, ICE-003
  • FCCPart 15 Subpart B, ANSI C63.4-2014
  • CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
