*Images are for illustrative purposes. Actual product appearance and specifications may vary.
NEW
add compare icon

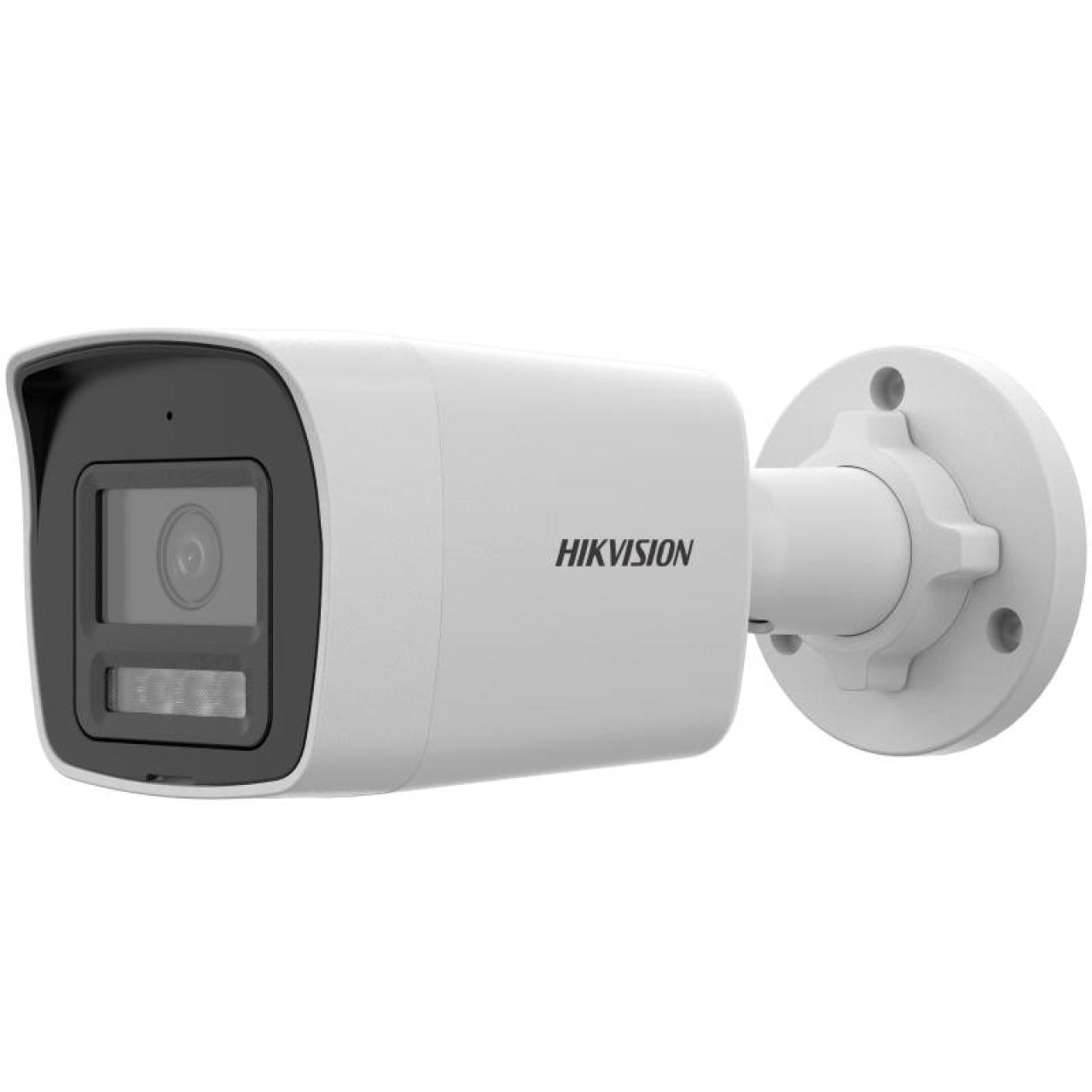

4 MP Fixed Bullet Network Camera

  • HikAI-ISP for well noise reduction, color correction and image quality improvement
  • Motion Detection 3.0 detects persons and vehicles more accurately, reducing false alarms
  • Smart Hybrid Light: integrates IR and white lights, 3 supplemental lighting modes
  • Built-in microphone for real-time audio security
  • Dust and water resistant (IP67)

View Less
View more
Thông số sản phẩm
Sales Inquiry

Available models:

DS-2CD3041G3-LIU(2.8mm)
DS-2CD3041G3-LIU(4mm)
View more View Less
DS-2CD3041G3-LIU NEW
Thông số sản phẩm

Specification

  • Máy ảnh
  • Image Sensor1/3" Progressive Scan CMOS
  • Max. Resolution2688 × 1520
  • Min. IlluminationColor: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
  • Shutter Time1 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
  • Lens
  • Lens TypeFixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 115° 4 mm, horizontal FOV 79°, vertical FOV 42°, diagonal FOV 93°
  • Lens MountM12
  • FocusNA
  • Iris TypeFixed
  • ApertureF1.6
  • Depth of Field2.8 mm: 1.4 m to ∞ 4 mm: 1.5 m to ∞
  • DORI
  • DORI2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
  • Illuminator
  • Supplement Light TypeIR,White Light
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes
  • IR Wavelength850 nm
  • Video
  • Main Stream50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
  • Sub-Stream50 Hz: 25 fps (1280 × 720，640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720，640 × 480, 640 × 360)
  • Third Stream 50 Hz: 1fps (1280 × 720，640 × 480, 640 × 360) 60 Hz: 1 fps (1280 × 720，640 × 480, 640 × 360)
  • Video Compression Main stream: H.264+/H.264/H.265/H.265+, Sub-stream: MJPEG/H.264/H.265, Third stream: H.264/H.265
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Scalable Video Coding (SVC)YES
  • Region of Interest (ROI)1 fixed regions for each stream
  • Target CroppingNO
  • Audio
  • Audio TypeMono sound
  • Audio Compression -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate-U:64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 160 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate-U: 8 kHz/16 kHz
  • Environment Noise Filtering-U: Yes
  • Network
  • ProtocolsDHCP,QoS,FTP,SSL/TLS,ICMP,RTSP,UDP,HTTPS,HTTP,DNS,IPv6,IPv4,IGMP,RTCP,RTP,DDNS,TCP/IP,UPnP,NTP,SMTP
  • Simultaneous Live ViewUp to 6 channels
  • APIONVIF (Profile S, Profile T),ISAPI,SDK,ISUP,EZVIZ
  • User/HostUp to 32 users 3 user levels: administrator, operator, and user
  • SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
  • Network StorageNO
  • ClientiVMS-4200,Hik-Connect
  • Web BrowserPlug-in required live view: Chrome 91+, Firefox 88+, Edge 91+
  • Image
  • Image Parameters SwitchYes
  • Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,AGC,adjustable by client software or web browser
  • Day/Night SwitchDay,Night,Auto,Schedule
  • Wide Dynamic Range (WDR)120 dB
  • SNR≥ 52 dB
  • Image EnhancementBLC,HLC,3D DNR
  • Privacy Mask4 programmable polygon privacy masks
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board StorageNA
  • Built-in MicrophoneYes,1 built-in microphone
  • Built-in SpeakerNA
  • AudioNA
  • Alarm NA
  • Reset KeyNA
  • Event
  • Basic Event Video tampering alarm, motion detection (support alarm triggering by specified target types (human, vehicle)), exception
  • Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human, vehicle and animal))
  • LinkageUpload to FTP, notify surveillance center, send email, trigger capture
  • Deep Learning Function
  • Perimeter Protection NO
  • Face CaptureNO
  • General
  • PowerLIU: 12 VDC ± 25%, 0.55 A, max. 6.6 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8.0 W LIUF: 12 VDC ± 25%, 0.57 A, max. 6.9 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8.5 W
  • Dimension69.1 mm × 66.9 mm × 172.9 mm (2.72" × 2.63" × 6.81")
  • Package Dimension216 mm × 121 mm × 118 mm (8.50" × 4.76" × 4.65")
  • Approx. 290 g (0.64 lb.)
  • With Package WeightApprox. 430 g (0.95 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • LanguageEnglish, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German
  • General FunctionHeartbeat,mirror,password reset via email,password protection,anti-banding
  • Flashing LightNA
  • Approval
  • EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
  • SafetyCB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
  • EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • ProtectionIP67: IEC 60529-2013
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Máy ảnh
Image Sensor
1/3" Progressive Scan CMOS
Max. Resolution
2688 × 1520
Min. Illumination
Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time
1 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 115° 4 mm, horizontal FOV 79°, vertical FOV 42°, diagonal FOV 93°
Lens Mount
M12
Focus
NA
Iris Type
Fixed
Aperture
F1.6
Depth of Field
2.8 mm: 1.4 m to ∞ 4 mm: 1.5 m to ∞
DORI
DORI
2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
Illuminator
Supplement Light Type
IR,White Light
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720，640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720，640 × 480, 640 × 360)
Third Stream
50 Hz: 1fps (1280 × 720，640 × 480, 640 × 360) 60 Hz: 1 fps (1280 × 720，640 × 480, 640 × 360)
Video Compression
Main stream: H.264+/H.264/H.265/H.265+, Sub-stream: MJPEG/H.264/H.265, Third stream: H.264/H.265
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR
Scalable Video Coding (SVC)
YES
Region of Interest (ROI)
1 fixed regions for each stream
Target Cropping
NO
Audio
Audio Type
Mono sound
Audio Compression
-U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
-U:64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 160 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
-U: 8 kHz/16 kHz
Environment Noise Filtering
-U: Yes
Network
Protocols
DHCP,QoS,FTP,SSL/TLS,ICMP,RTSP,UDP,HTTPS,HTTP,DNS,IPv6,IPv4,IGMP,RTCP,RTP,DDNS,TCP/IP,UPnP,NTP,SMTP
Simultaneous Live View
Up to 6 channels
API
ONVIF (Profile S, Profile T),ISAPI,SDK,ISUP,EZVIZ
User/Host
Up to 32 users 3 user levels: administrator, operator, and user
Security
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Network Storage
NO
Client
iVMS-4200,Hik-Connect
Web Browser
Plug-in required live view: Chrome 91+, Firefox 88+, Edge 91+
Image Parameters Switch
Yes
Image Settings
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,AGC,adjustable by client software or web browser
Day/Night Switch
Day,Night,Auto,Schedule
Wide Dynamic Range (WDR)
120 dB
SNR
≥ 52 dB
Image Enhancement
BLC,HLC,3D DNR
Privacy Mask
4 programmable polygon privacy masks
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
NA
Built-in Microphone
Yes,1 built-in microphone
Built-in Speaker
NA
Audio
NA
Alarm
NA
Reset Key
NA
Event
Basic Event
Video tampering alarm, motion detection (support alarm triggering by specified target types (human, vehicle)), exception
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human, vehicle and animal))
Linkage
Upload to FTP, notify surveillance center, send email, trigger capture
Deep Learning Function
Perimeter Protection
NO
Face Capture
NO
General
Power
LIU: 12 VDC ± 25%, 0.55 A, max. 6.6 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8.0 W LIUF: 12 VDC ± 25%, 0.57 A, max. 6.9 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8.5 W
Dimension
69.1 mm × 66.9 mm × 172.9 mm (2.72" × 2.63" × 6.81")
Package Dimension
216 mm × 121 mm × 118 mm (8.50" × 4.76" × 4.65")
Approx. 290 g (0.64 lb.)
With Package Weight
Approx. 430 g (0.95 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
English, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German
General Function
Heartbeat,mirror,password reset via email,password protection,anti-banding
Flashing Light
NA
Approval
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Safety
CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection
IP67: IEC 60529-2013
