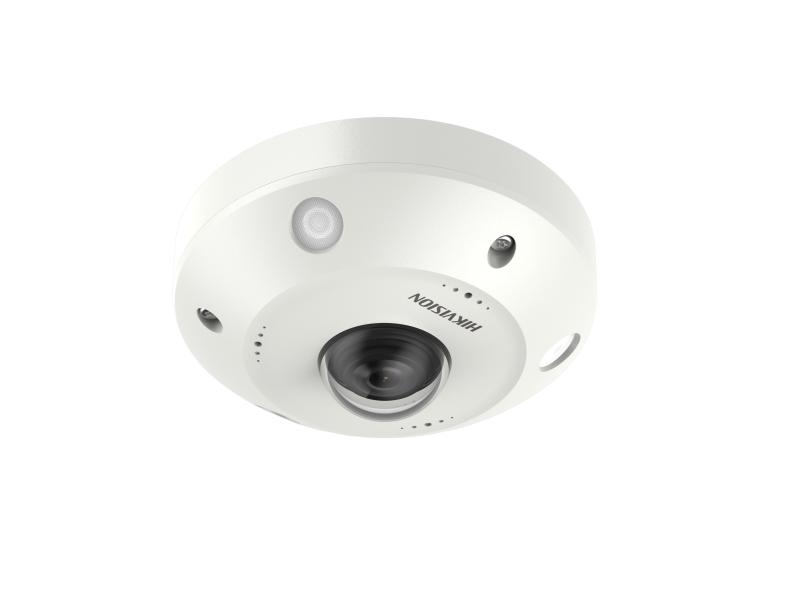

Mobile Fisheye Network Camera

High quality imaging with 6 MP resolution
Built-in microphone for real-time audio security
Efficient H.265+ compression technology
Clear imaging against strong back light due to digital WDR technology
Smart features 6 behavior analyses, and 1 exception detections
Up to 15 m IR range

View Less

DS-2XM6365G0-IV(S)(M)(/ND)

Specification
Resources
Accessories

Máy ảnh
Image Sensor1/1.8" Progressive Scan CMOS
Max. Resolution3072 × 2048
Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0.001 Lux @ (F1.2, AGC ON)
Shutter Time1 s to 1/100,000 s
Day & NightDouble Band-Pass Filter

Lens
Focal Length & FOV1.27 mm, horizontal FOV 180° (wall mount), 360°(ceiling mount)
Lens MountM12
ApertureF2.6

Illuminator
Supplement Light TypeIR, 3 LEDs. Each LED is independently controlled.
Supplement Light RangeUp to 15 m IR range
IR Wavelength850 nm

Video
Main Stream50Hz: 25fps (3072 × 2048, 2048 × 2048, 1280 × 1280) 60Hz: 30fps (3072 × 2048, 2048 × 2048, 1280 × 1280)
Sub-Stream50Hz: 25fps (720 × 720) 60Hz: 30fps (720 × 720)
Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile/ Main Profile /High Profile
H.265 TypeMain Profile
Scalable Video Coding (SVC)H.265 and H.264 support
Region of Interest (ROI)4 fixed regions for main stream

Fisheye Display
Mount Type Support table, wall, and ceiling mounting
Decoding ModeSupport hardware decoding and software decoding
Display Mode16 display modes in total Software decoding: Ceiling mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, half sphere Wall mount: fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ Hardware decoding: Ceiling mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ Wall mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ

Audio
Audio Compression -S: G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate-S: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Audio Sampling Rate-S: 8 kHz/16 kHz
Environment Noise Filtering-S: Yes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Simultaneous Live ViewUp to 20 channels
APIONVIF (PROFILE S, PROFILE G), ISAPI
User/HostUp to 32 users. 3 user levels, administrator, operator and user
SecurityPassword protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
Network StorageSupport Micro SD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR
ClientiVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200
Web BrowserIE8+, Chrome31.0-44, Firefox 30.0-51, Safari8.0+

Image SettingsSaturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser
Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementBLC, HLC, defog, 3D DNR
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Interface
Ethernet InterfaceWithout –M: 1 RJ45 10M/100M/1000M self-adaptive Ethernet port With -M: four-core M12 aviation plug
On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
Built-in Microphone-S: 2 Built-in microphones
Audio-S: 1 Audio input (line in, 3.81 mm), 1 audio output (line out, 3.81 mm);
Alarm -S: 1-ch alarm input, max. 12 VDC; 1-ch alarm output, max 12 VDC, 30 mA
Reset KeyYes

Event
Basic Event Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error
Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection Audio exception detection

General
Power24 VDC, 0.40 A, max. 12 W, two-core terminal block PoE: 802.3af, 36 to 57 VDC, 0.34 A to 0.22 A, max. 12 W /ND: no power interface, only support PoE power supply
DimensionØ136 × 61.8 mm (Ø5.35" × 2.43")
WeightApprox. 600 g (1.32 lb.)
Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP66 (IEC 60529-2013), IK10 (IEC 62262: 2002)
Automotive and RailwayEMARK/EN45545/EN50155-2017/R118
