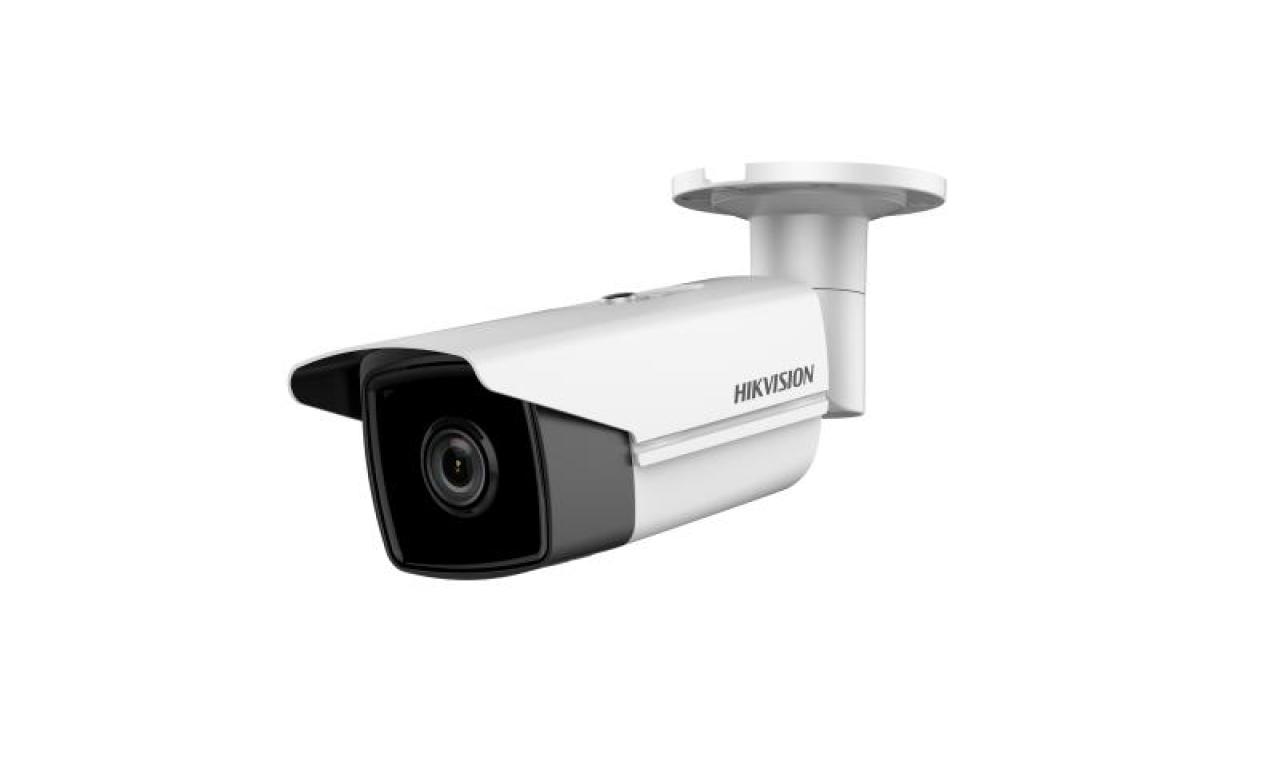

4 MP Powered-by-DarkFighter Fixed Bullet Network Camera

  • High quality imaging with 4 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Water and dust resistant (IP67)
  • Robust structure design with full metal materials.

View Less
View more
DS-2CD2T45FWD-I8EOL
DS-2CD2T45FWD-I5EOL
DS-2CD2T45FWD-I5 (Black)EOL
Thông số sản phẩm
Sales Inquiry

Available models:

DS-2CD2T45FWD-I8(4mm)
DS-2CD2T45FWD-I8(2.8mm)
DS-2CD2T45FWD-I8(6mm)
DS-2CD2T45FWD-I8(8mm)

Available models:

DS-2CD2T45FWD-I5(2.8mm)
DS-2CD2T45FWD-I5(4mm)
DS-2CD2T45FWD-I5(6mm)
DS-2CD2T45FWD-I5(8mm)

Available models:

DS-2CD2T45FWD-I5(4mm)(BLACK)
DS-2CD2T45FWD-I5/I8
Thông số sản phẩm

Specification

  • Máy ảnh
  • Image Sensor 1/2.5" Progressive Scan CMOS
  • Min. Illumination Color: 0.008 lux @(F1.2, AGC ON), 0.014 lux @(F1.6, AGC ON), 0 lux with IR
  • Shutter Speed 1/3 s to 1/100,000 s
  • Slow Shutter Yes
  • Wide Dynamic Range 120dB
  • Day & Night IR Cut Filter
  • Angle Adjustment Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
  • Lens
  • Focus Fixed
  • Lens Type 2.8, 4, 6, 8, 12 mm
  • FOV 2.8 mm, horizontal FOV: 109°, vertical FOV: 60°, diagonal FOV: 131°,4 mm, horizontal FOV: 88°, vertical FOV: 46°, diagonal FOV: 105°,6 mm, horizontal FOV: 53°, vertical FOV: 30°, diagonal FOV: 61°,8 mm, horizontal FOV: 41°, vertical FOV: 23°, diagonal FOV: 48°,12 mm, horizontal FOV: 25°, vertical FOV: 14°, diagonal FOV: 29°
  • Aperture F1.6
  • Lens Mount M12
  • Aperture Type Fixed
  • Illuminator
  • IR Range I5: Up to 50 m,I8: Up to 80 m
  • Wavelength 850nm
  • Video
  • Max. Resolution 2688 × 1520
  • Main Stream 50Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
  • Sub Stream 50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream 50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)
  • Video Compression Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
  • Video Bit Rate 32 Kbps to 16 Mbps
  • H.264 Type Main Profile/High Profile
  • H.265 Type Main Profile
  • H.264+ Main stream supports
  • H.265+ Main stream supports
  • Scalable Video Coding (SVC) H.264 and H.265 encoding support
  • Region of Interest (ROI) Support 1 fixed region for main stream and sub-stream
  • Network
  • Simultaneous Live View Up to 6 channels
  • API ONVIF (PROFILE S, PROFILE G), ISAPI
  • Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, WebSocket, WebSockets
  • User/Host Up to 32 users,3 levels: Administrator, Operator and User
  • Network Storage Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
  • Web Browser Plug-in required live view:,IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view:,Chrome 45.0+, Firefox 52.0+
  • Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • Image
  • Day/Night Switch Day/Night/Auto/Schedule
  • Target Cropping No
  • DNR 3D DNR
  • Image Enhancement BLC/3D DNR/HLC
  • Image Settings Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
  • Interface
  • On-board Storage Built-in microSD/SDHC/SDXC slot, up to 128 GB
  • Hardware Reset Yes
  • Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
  • Event
  • Smart Event Line crossing detection, intrusion detection, object removal detection, unattended baggage detection
  • Face Detection Yes
  • Exception Detection Scene change detection
  • General
  • Firmware Version V5.5.80
  • General Function One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Startup and Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
  • Power Supply 12 VDC ± 25%, Φ 5.5 mm coaxial plug power,PoE(802.3af, class 3)
  • Power Consumption and Current I5:,12 VDC, 0.7 A, max. 7.5 W,PoE (802.3af, 36V to 57V), 0.3 A to 0.1 A, max. 9.5 W,I8:,12 VDC, 1 A, max: 11.5 W,PoE (802.3af, 36V to 57V), 0.4 A to 0.2 A, max. 12.9 W
  • Camera Dimension Camera: Φ104.8 mm × 299.7 mm (Φ4.1" × 11.8"),Package: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
  • Camera Weight Camera: 1200 g (2.7 lb.)
  • Approval
  • Protection IP67
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Máy ảnh
Image Sensor
1/2.5" Progressive Scan CMOS
Min. Illumination
Color: 0.008 lux @(F1.2, AGC ON), 0.014 lux @(F1.6, AGC ON), 0 lux with IR
Shutter Speed
1/3 s to 1/100,000 s
Slow Shutter
Yes
Wide Dynamic Range
120dB
Day & Night
IR Cut Filter
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
Lens
Focus
Fixed
Lens Type
2.8, 4, 6, 8, 12 mm
FOV
2.8 mm, horizontal FOV: 109°, vertical FOV: 60°, diagonal FOV: 131°,4 mm, horizontal FOV: 88°, vertical FOV: 46°, diagonal FOV: 105°,6 mm, horizontal FOV: 53°, vertical FOV: 30°, diagonal FOV: 61°,8 mm, horizontal FOV: 41°, vertical FOV: 23°, diagonal FOV: 48°,12 mm, horizontal FOV: 25°, vertical FOV: 14°, diagonal FOV: 29°
Aperture
F1.6
Lens Mount
M12
Aperture Type
Fixed
Illuminator
IR Range
I5: Up to 50 m,I8: Up to 80 m
Wavelength
850nm
Video
Max. Resolution
2688 × 1520
Main Stream
50Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
Sub Stream
50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
Third Stream
50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)
Video Compression
Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Main Profile/High Profile
H.265 Type
Main Profile
H.264+
Main stream supports
H.265+
Main stream supports
Scalable Video Coding (SVC)
H.264 and H.265 encoding support
Region of Interest (ROI)
Support 1 fixed region for main stream and sub-stream
Network
Simultaneous Live View
Up to 6 channels
API
ONVIF (PROFILE S, PROFILE G), ISAPI
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, WebSocket, WebSockets
User/Host
Up to 32 users,3 levels: Administrator, Operator and User
Network Storage
Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Client
iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser
Plug-in required live view:,IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view:,Chrome 45.0+, Firefox 52.0+
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Day/Night Switch
Day/Night/Auto/Schedule
Target Cropping
No
DNR
3D DNR
Image Enhancement
BLC/3D DNR/HLC
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Interface
On-board Storage
Built-in microSD/SDHC/SDXC slot, up to 128 GB
Hardware Reset
Yes
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port
Event
Smart Event
Line crossing detection, intrusion detection, object removal detection, unattended baggage detection
Face Detection
Yes
Exception Detection
Scene change detection
General
Firmware Version
V5.5.80
General Function
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Startup and Operating Conditions
-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, Φ 5.5 mm coaxial plug power,PoE(802.3af, class 3)
Power Consumption and Current
I5:,12 VDC, 0.7 A, max. 7.5 W,PoE (802.3af, 36V to 57V), 0.3 A to 0.1 A, max. 9.5 W,I8:,12 VDC, 1 A, max: 11.5 W,PoE (802.3af, 36V to 57V), 0.4 A to 0.2 A, max. 12.9 W
Camera Dimension
Camera: Φ104.8 mm × 299.7 mm (Φ4.1" × 11.8"),Package: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
Camera Weight
Camera: 1200 g (2.7 lb.)
Approval
Protection
IP67
For better user experience, we highly recommend you to update your device to the latest firmware asap.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.6.821_230831
Network Camera-V5.6.821 Release Note-IPC_G1 230831
Applied to:
DS-2CD2T45FWD-I8(4mm)
DS-2CD2T45FWD-I8(2.8mm)
DS-2CD2T45FWD-I8(6mm)
DS-2CD2T45FWD-I8(8mm)

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.6.821_230831
Network Camera-V5.6.821 Release Note-IPC_G1 230831
Applied to:
DS-2CD2T45FWD-I5(2.8mm)
DS-2CD2T45FWD-I5(4mm)
DS-2CD2T45FWD-I5(6mm)
DS-2CD2T45FWD-I5(8mm)

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.6.821_230831
Network Camera-V5.6.821 Release Note-IPC_G1 230831
Applied to:
DS-2CD2T45FWD-I5(4mm)(BLACK)
