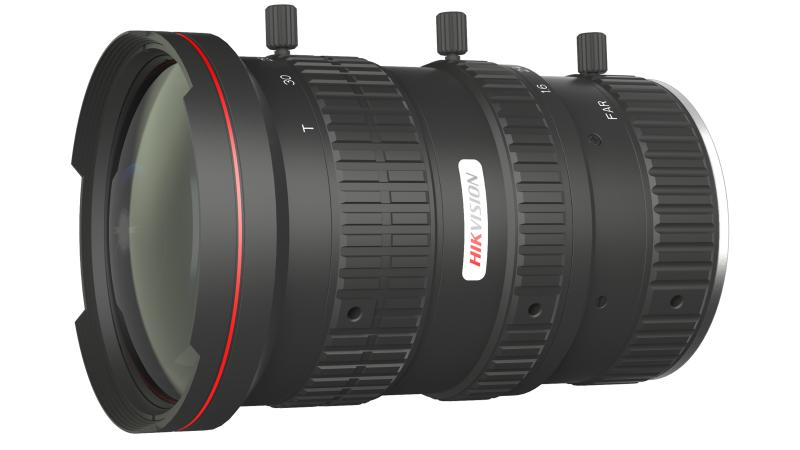

Intelligent Traffic Camera Lens

  • Intellignet Traffic Camera Lens
  • 10 MP
  • IR
View Less
View more

Specification

  • Parameters
  • Weight910g
  • DimensionΦ73*110.15mm
  • SpecificationFixed focal Manual Iris 10MP
  • Focal length11-40mm
  • MountCS-Mount
  • F numberF1.6-25
  • Flange Back Length12.526mm
  • Max. Image formatΦ16.1mm（1"）
  • M.O.D0.5m
  • OperatingTemperature-20~60℃
  • Control
  • IrisManual
  • FocusManual
  • ZoomManual
  • Field of View
  • Diagonal1":70°～26.8°
  • Horizontal1":62°～23.6°
  • Vertical1":32.2°～12.2°
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Parameters
Weight
910g
Dimension
Φ73*110.15mm
Specification
Fixed focal Manual Iris 10MP
Focal length
11-40mm
Mount
CS-Mount
F number
F1.6-25
Flange Back Length
12.526mm
Max. Image format
Φ16.1mm（1"）
M.O.D
0.5m
OperatingTemperature
-20~60℃
Control
Iris
Manual
Focus
Manual
Zoom
Manual
Field of View
Diagonal
1":70°～26.8°
Horizontal
1":62°～23.6°
Vertical
1":32.2°～12.2°
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Parameters
  • Weight910g
  • DimensionΦ73*110.15mm
  • SpecificationFixed focal Manual Iris 10MP
  • Focal length11-40mm
  • MountCS-Mount
  • F numberF1.6-25
  • Flange Back Length12.526mm
  • Max. Image formatΦ16.1mm（1"）
  • M.O.D0.5m
  • OperatingTemperature-20~60℃
Control
  • IrisManual
  • FocusManual
  • ZoomManual
Field of View
  • Diagonal1":70°～26.8°
  • Horizontal1":62°～23.6°
  • Vertical1":32.2°～12.2°
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
