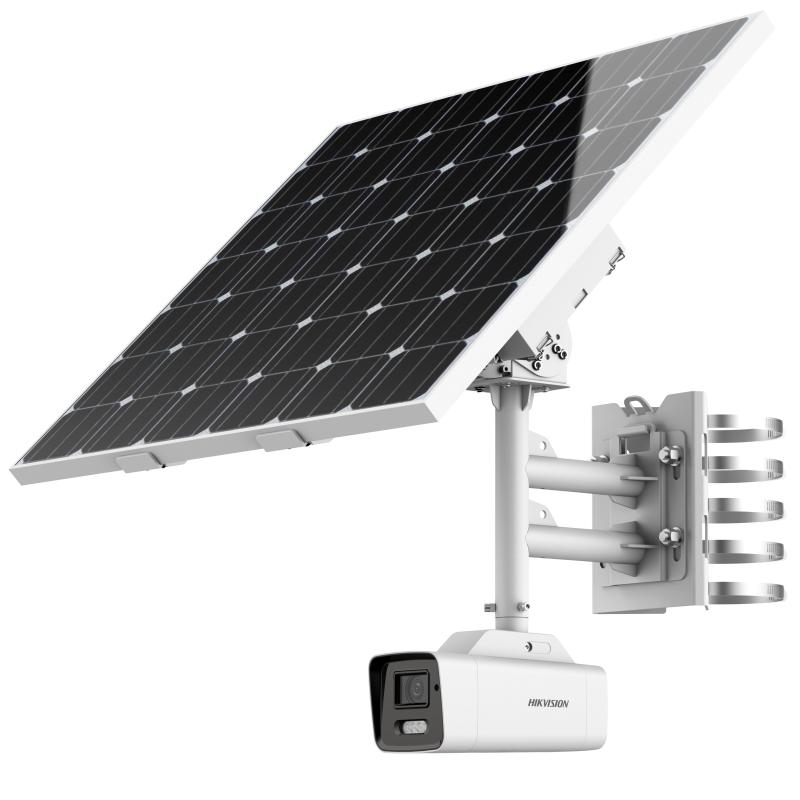

4MP Motorized Varifocal Bullet Solar Power 4G Network Camera Kit

  • 80 W photovoltaic panel, 360 Wh chargeable lithium battery
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Focus on human and vehicle targets classification based on deep learning
  • Support battery management, battery display, battery high-low temperature protection, charge-discharge protection, low-battery sleep protection and remote wakeup ( When use Solar Power kit as additional power bank to connect to Solar Camera Kit, the battery status will work. When use Solar Power kit working with regular cameras, will not show any battery status at all )
  • LTE-FDD/WCDMA 4G wireless network transmission, support Micro SIM card
  • Water and dust resistant (IP66)
  • Built-in high-capacity SSD storage

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-2XS6A47G1-IZS/C36S80(2.8-12mm)HIK USA
DS-2XS6A47G1-IZS/C36S80(8-32mm)(HIK USA)
DS-2XS6A47G1-IZS/C36S80
Data Sheet

Specification

  • Camera
  • Image Sensor1/1.8" Progressive Scan CMOS
  • Max. Resolution2560 × 1440
  • Min. IlluminationColor: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0 Lux with light
  • Shutter Time1 s to 1/100,000 s
  • Lens
  • Focal Length & FOV2.8 to 12 mm, horizontal FOV 107.4° to 39.8°, vertical FOV 56° to 22.4°, diagonal FOV 130.1° to 45.7° 8 to 32 mm, horizontal FOV 40.3° to 14.5°, vertical FOV 22.1° to 8.2°, diagonal FOV 46.9° to 16.5°
  • Lens TypeAuto, Semi-auto, Manual
  • Iris TypeAuto-iris
  • Aperture2.8 to 12 mm: F1.2, 8 to 32 mm: F1.6
  • Lens MountAll In One Lens
  • DORI
  • DORI2.8 to 12 mm: Wide: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m Tele: D: 149.0 m, O: 59.1 m, R: 29.8 m, I: 14.9 m 8 to 32 mm: Wide: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15.0 m Tele: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m
  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light Range2.8 to 12 mm: Up to 30 m 8 to 32 mm: Up to 50 m
  • Smart Supplement LightYes
  • Video
  • Main StreamPerformance mode: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) Proactive mode: 50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
  • Sub-StreamPerformance mode: 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Proactive mode: 50 Hz: 12.5 fps (640 × 480, 640 × 360) 60 Hz: 15 fps (640 × 480, 640 × 360)
  • Third Stream50 Hz: 1 fps (1280 × 720, 640 × 480) 60 Hz: 1 fps (1280 × 720, 640 × 480)
  • Video Compression Main stream: H.264/H.265 Sub-stream: H.264/H.265/MJPEG Third Stream: H.265/H.264 *Performance mode: main stream supports H.264+, H.265+
  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR/VBR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)4 fixed regions for main stream
  • Audio
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise FilteringYes
  • Network
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP, OTAP
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
  • User/HostUp to 32 users 3 user levels: administrator, operator, and user
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS 1.3
  • Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • ClientHik-Connect (proactive mode also supports), Hik-central Professional
  • Web BrowserPlug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
  • Mobile Communication
  • SIM Card TypeMicroSIM
  • FrequencyDS-2XS6A47G1-IZS/C36S80(US): LTE-FDD: Band2/4/5/12/13/66/71 WCDMA: Band2/4/5
  • StandardDS-2XS6A47G1-IZS/C36S80 (US): LTE-FDD/WCDMA
  • Image
  • Wide Dynamic Range (WDR)120 dB
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Image EnhancementBLC, HLC, 3D DNR, Defog
  • Image Parameters SwitchYes
  • Image SettingsSaturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
  • SNR≥ 52 dB
  • Privacy Mask4 programmable polygon privacy masks
  • Interface
  • Audio 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarm 1 input, 1 output (max. 12 VDC, 1 A)
  • On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB, Built-in 1 TB SSD storage (1 TB device model supports)
  • Reset KeyYes
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Power Output12 VDC, max. 1000 mA
  • Event
  • Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD error)
  • Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, scene change detection, face detection
  • LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning
  • General
  • Power12 VDC ± 20%, 4-pin M8 waterproof connector 1 TB device model: 1. Standby power consumption: 45 mW 2. The average power consumption of 24 hours (4G transmission is excluded): 4.5 W 3. The max. power consumption: 20 W (6 W if without 12 V load)
  • MaterialFront cover: metal, body: metal, bracket: metal
  • Dimension816.2 mm × 735.9 mm × 760 mm (32.1" × 28.9" × 29.9") (Max. size of the camera after it is completely assembled)
  • Package Dimension862 mm × 352 mm × 762 mm (33.9" × 13.9" × 30.0")
  • WeightApprox. 26.450 kg (58.3 lb.)
  • With Package WeightApprox. 32.715 kg (72.1 lb.)
  • Storage Conditions-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General FunctionAnti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter
  • Battery
  • Battery TypeLithium
  • Capacity360 Wh (90 Wh for each battery)
  • Battery Voltage 10.8 V
  • Max. Output Voltage12.6 V
  • Operating TemperatureCharging: -20 °C to 45 °C (-4 °F to 113 °F) Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
  • Battery LifeMore than 500 cycles
  • Cycle LifetimePerformance mode: 5 days, Proactive mode: 8 days, Standby mode: 80 days *in cloudy/rainy days (25 °C)
  • Battery WeightApprox. 2.74 kg (6.0 lb.) (0.685 kg (1.5 lb.) for each battery)
  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B);
  • RFFCC ID (47 CFR Part15 Subpart C);
  • ProtectionCamera: IP66 (IEC 60529-2013) Wind resistance 12 level, up to 40 m/s wind speed resistance
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/1.8" Progressive Scan CMOS
Max. Resolution
2560 × 1440
Min. Illumination
Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0 Lux with light
Shutter Time
1 s to 1/100,000 s
Lens
Focal Length & FOV
2.8 to 12 mm, horizontal FOV 107.4° to 39.8°, vertical FOV 56° to 22.4°, diagonal FOV 130.1° to 45.7° 8 to 32 mm, horizontal FOV 40.3° to 14.5°, vertical FOV 22.1° to 8.2°, diagonal FOV 46.9° to 16.5°
Lens Type
Auto, Semi-auto, Manual
Iris Type
Auto-iris
Aperture
2.8 to 12 mm: F1.2, 8 to 32 mm: F1.6
Lens Mount
All In One Lens
DORI
DORI
2.8 to 12 mm: Wide: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m Tele: D: 149.0 m, O: 59.1 m, R: 29.8 m, I: 14.9 m 8 to 32 mm: Wide: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15.0 m Tele: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m
Illuminator
Supplement Light Type
IR
Supplement Light Range
2.8 to 12 mm: Up to 30 m 8 to 32 mm: Up to 50 m
Smart Supplement Light
Yes
Video
Main Stream
Performance mode: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) Proactive mode: 50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream
Performance mode: 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Proactive mode: 50 Hz: 12.5 fps (640 × 480, 640 × 360) 60 Hz: 15 fps (640 × 480, 640 × 360)
Third Stream
50 Hz: 1 fps (1280 × 720, 640 × 480) 60 Hz: 1 fps (1280 × 720, 640 × 480)
Video Compression
Main stream: H.264/H.265 Sub-stream: H.264/H.265/MJPEG Third Stream: H.265/H.264 *Performance mode: main stream supports H.264+, H.265+
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR/VBR
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
4 fixed regions for main stream
Audio
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering
Yes
Network
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP, OTAP
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
User/Host
Up to 32 users 3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS 1.3
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client
Hik-Connect (proactive mode also supports), Hik-central Professional
Web Browser
Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
Mobile Communication
SIM Card Type
MicroSIM
Frequency
DS-2XS6A47G1-IZS/C36S80(US): LTE-FDD: Band2/4/5/12/13/66/71 WCDMA: Band2/4/5
Standard
DS-2XS6A47G1-IZS/C36S80 (US): LTE-FDD/WCDMA
Wide Dynamic Range (WDR)
120 dB
Day/Night Switch
Day, Night, Auto, Schedule
Image Enhancement
BLC, HLC, 3D DNR, Defog
Image Parameters Switch
Yes
Image Settings
Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
SNR
≥ 52 dB
Privacy Mask
4 programmable polygon privacy masks
Interface
Audio
1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm
1 input, 1 output (max. 12 VDC, 1 A)
On-Board Storage
Built-in memory card slot, support microSD card, up to 256 GB, Built-in 1 TB SSD storage (1 TB device model supports)
Reset Key
Yes
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Power Output
12 VDC, max. 1000 mA
Event
Basic Event
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD error)
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, scene change detection, face detection
Linkage
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning
General
Power
12 VDC ± 20%, 4-pin M8 waterproof connector 1 TB device model: 1. Standby power consumption: 45 mW 2. The average power consumption of 24 hours (4G transmission is excluded): 4.5 W 3. The max. power consumption: 20 W (6 W if without 12 V load)
Material
Front cover: metal, body: metal, bracket: metal
Dimension
816.2 mm × 735.9 mm × 760 mm (32.1" × 28.9" × 29.9") (Max. size of the camera after it is completely assembled)
Package Dimension
862 mm × 352 mm × 762 mm (33.9" × 13.9" × 30.0")
Weight
Approx. 26.450 kg (58.3 lb.)
With Package Weight
Approx. 32.715 kg (72.1 lb.)
Storage Conditions
-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter
Battery
Battery Type
Lithium
Capacity
360 Wh (90 Wh for each battery)
Battery Voltage
10.8 V
Max. Output Voltage
12.6 V
Operating Temperature
Charging: -20 °C to 45 °C (-4 °F to 113 °F) Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
Battery Life
More than 500 cycles
Cycle Lifetime
Performance mode: 5 days, Proactive mode: 8 days, Standby mode: 80 days *in cloudy/rainy days (25 °C)
Battery Weight
Approx. 2.74 kg (6.0 lb.) (0.685 kg (1.5 lb.) for each battery)
Approval
EMC
FCC (47 CFR Part 15, Subpart B);
RF
FCC ID (47 CFR Part15 Subpart C);
Protection
Camera: IP66 (IEC 60529-2013) Wind resistance 12 level, up to 40 m/s wind speed resistance
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Camera
  • Image Sensor1/1.8" Progressive Scan CMOS
  • Max. Resolution2560 × 1440
  • Min. IlluminationColor: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0 Lux with light
  • Shutter Time1 s to 1/100,000 s
Lens
  • Focal Length & FOV2.8 to 12 mm, horizontal FOV 107.4° to 39.8°, vertical FOV 56° to 22.4°, diagonal FOV 130.1° to 45.7° 8 to 32 mm, horizontal FOV 40.3° to 14.5°, vertical FOV 22.1° to 8.2°, diagonal FOV 46.9° to 16.5°
  • Lens TypeAuto, Semi-auto, Manual
  • Iris TypeAuto-iris
  • Aperture2.8 to 12 mm: F1.2, 8 to 32 mm: F1.6
  • Lens MountAll In One Lens
DORI
  • DORI2.8 to 12 mm: Wide: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m Tele: D: 149.0 m, O: 59.1 m, R: 29.8 m, I: 14.9 m 8 to 32 mm: Wide: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15.0 m Tele: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m
Illuminator
  • Supplement Light TypeIR
  • Supplement Light Range2.8 to 12 mm: Up to 30 m 8 to 32 mm: Up to 50 m
  • Smart Supplement LightYes
Video
  • Main StreamPerformance mode: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) Proactive mode: 50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
  • Sub-StreamPerformance mode: 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Proactive mode: 50 Hz: 12.5 fps (640 × 480, 640 × 360) 60 Hz: 15 fps (640 × 480, 640 × 360)
  • Third Stream50 Hz: 1 fps (1280 × 720, 640 × 480) 60 Hz: 1 fps (1280 × 720, 640 × 480)
  • Video Compression Main stream: H.264/H.265 Sub-stream: H.264/H.265/MJPEG Third Stream: H.265/H.264 *Performance mode: main stream supports H.264+, H.265+
  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR/VBR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)4 fixed regions for main stream
Audio
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise FilteringYes
Network
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP, OTAP
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
  • User/HostUp to 32 users 3 user levels: administrator, operator, and user
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS 1.3
  • Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • ClientHik-Connect (proactive mode also supports), Hik-central Professional
  • Web BrowserPlug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
Mobile Communication
  • SIM Card TypeMicroSIM
  • FrequencyDS-2XS6A47G1-IZS/C36S80(US): LTE-FDD: Band2/4/5/12/13/66/71 WCDMA: Band2/4/5
  • StandardDS-2XS6A47G1-IZS/C36S80 (US): LTE-FDD/WCDMA
  • Wide Dynamic Range (WDR)120 dB
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Image EnhancementBLC, HLC, 3D DNR, Defog
  • Image Parameters SwitchYes
  • Image SettingsSaturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
  • SNR≥ 52 dB
  • Privacy Mask4 programmable polygon privacy masks
Interface
  • Audio 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarm 1 input, 1 output (max. 12 VDC, 1 A)
  • On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB, Built-in 1 TB SSD storage (1 TB device model supports)
  • Reset KeyYes
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Power Output12 VDC, max. 1000 mA
Event
  • Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD error)
  • Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, scene change detection, face detection
  • LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning
General
  • Power12 VDC ± 20%, 4-pin M8 waterproof connector 1 TB device model: 1. Standby power consumption: 45 mW 2. The average power consumption of 24 hours (4G transmission is excluded): 4.5 W 3. The max. power consumption: 20 W (6 W if without 12 V load)
  • MaterialFront cover: metal, body: metal, bracket: metal
  • Dimension816.2 mm × 735.9 mm × 760 mm (32.1" × 28.9" × 29.9") (Max. size of the camera after it is completely assembled)
  • Package Dimension862 mm × 352 mm × 762 mm (33.9" × 13.9" × 30.0")
  • WeightApprox. 26.450 kg (58.3 lb.)
  • With Package WeightApprox. 32.715 kg (72.1 lb.)
  • Storage Conditions-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General FunctionAnti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter
Battery
  • Battery TypeLithium
  • Capacity360 Wh (90 Wh for each battery)
  • Battery Voltage 10.8 V
  • Max. Output Voltage12.6 V
  • Operating TemperatureCharging: -20 °C to 45 °C (-4 °F to 113 °F) Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
  • Battery LifeMore than 500 cycles
  • Cycle LifetimePerformance mode: 5 days, Proactive mode: 8 days, Standby mode: 80 days *in cloudy/rainy days (25 °C)
  • Battery WeightApprox. 2.74 kg (6.0 lb.) (0.685 kg (1.5 lb.) for each battery)
Approval
  • EMCFCC (47 CFR Part 15, Subpart B);
  • RFFCC ID (47 CFR Part15 Subpart C);
  • ProtectionCamera: IP66 (IEC 60529-2013) Wind resistance 12 level, up to 40 m/s wind speed resistance
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Hikvision.com uses strictly necessary cookies and related technologies to enable the website to function. With your consent, we would also like to use cookies to observe and analyse traffic levels and other metrics / show you targeted advertising / show you advertising on the basis of your location / tailor our website's content. For more information on cookie practices please refer to our cookie policy.



Manage cookies Accept All
Accept All Manage cookies
Contact Sales
Technical Support
Subscribe Newsletter
Where to Buy
Contact Us

Get a better browsing experience

You are using a web browser we don’t support. Please try one of the following options to have a better experience of our web content.
