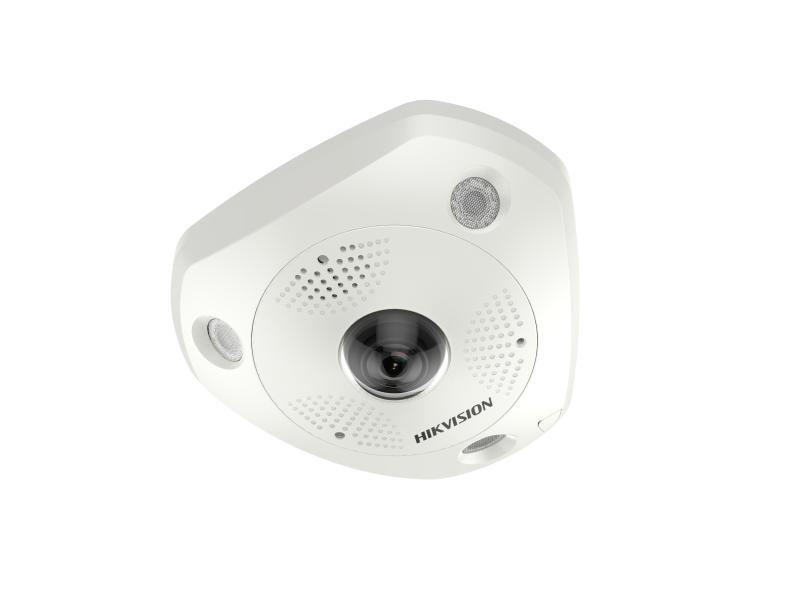

DS-2CD63C5G0-IVS

12 MP DeepinView Immervision Lens Fisheye Network

  • Heatmap: based on deep learning algorithms, the camera counts people and presents an intuitive map
  • Multi dewarping modes: the image can be dewarped to normal image for viewing intuitively
  • Built-in mic and speaker: the camera supports two-way audio for real-time audio security monitoring and communication
  • Built-in IR light: an IR range of 15 meters provides good visibility in low or even zero-light environments
  • High resolution 12 MP: capturing clear images even when dewarped into 4-image PTZ mode
  • Each image is clear and detailed
  • Panomorph lens RPL: 89VVT

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-2CD63C5G0-IVS(1.29mm)(HIK USA)
DS-2CD63C5G0-IVS
Data Sheet

Specification

  • Camera
  • Image Sensor1/1.7" Progressive Scan CMOS
  • Max. Resolution4000 × 3000
  • Min. IlluminationColor: 0.05 Lux @ (F2.2, AGC ON), B/W: 0.01 Lux @ (F2.2, AGC ON), 0 Lux with IR
  • Shutter Time1 s to 1/100,000 s
  • Day & NightIR Cut Filter
  • Lens
  • Focal Length & FOV1.29 mm, Horizontal FOV: 180°, vertical FOV: 180°
  • Lens MountM12
  • ApertureF2.2
  • DORI
  • DORID: 27.9 m, O: 11.1 m, R: 5.6 m, I: 2.8 m
  • Illuminator
  • Supplement Light Type3 IR LEDs, each LED is independently controlled
  • Supplement Light RangeUp to 15 m
  • IR Wavelength850 nm
  • Video
  • Main StreamFisheye View: 50 Hz: 20 fps (4000 × 3000), 25 fps (3000 × 3000, 2560 × 2560) 60 Hz: 20 fps (4000 × 3000), 30 fps (3000 × 3000, 2560 × 2560) 180 Panorama View: 50 Hz: 20 fps (3072 × 2304, 3072 × 1152) 60 Hz: 20 fps (3072 × 2304, 3072 × 1152) Panorama View: 50 Hz: 20 fps (3072 × 2304, 3072 × 1152) 60 Hz: 20 fps (3072 × 2304, 3072 × 1152) 4PTZ: 50 Hz: camera 01: 20 fps (1600 × 1200) camera 02: 20 fps (1600 × 1200) camera 03: 20 fps (1600 × 1200) camera 04: 20 fps (1600 × 1200) 60 Hz: camera 01: 20 fps (1600 × 1200) camera 02: 20 fps (1600 × 1200) camera 03: 20 fps (1600 × 1200) camera 04: 20 fps (1600 × 1200) Fisheye + 3PTZ 50 Hz: camera 01: 10 fps (2560 × 2560, 2048 × 2048, 1280 × 1280) camera 02: 10 fps (1600 × 1200) camera 03: 10 fps (1600 × 1200) camera 04: 10 fps (1600 × 1200) 60 Hz: camera 01: 10 fps (2560 × 2560, 2048 × 2048, 1280 × 1280) camera 02: 10 fps (1600 × 1200) camera 03: 10 fps (1600 × 1200) camera 04: 10 fps (1600 × 1200) 4PTZ Fusion 50 Hz: 20 fps (3200 × 2400, 1600 × 1200, 1280 × 960, 1024 × 768) 60 Hz: 20 fps (3200 × 2400, 1600 × 1200, 1280 × 960, 1024 × 768)
  • Sub-StreamFisheye View: 50 Hz: 20 fps (720 × 720, 640 × 480) 60 Hz: 20 fps (720 × 720, 640 × 480) 180 Panorama View: 50 Hz: 20 fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 20 fps (640 × 480, 640 × 360, 320 × 240) Panorama View: 50 Hz: 20 fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 20 fps (640 × 480, 640 × 360, 320 × 240) Fisheye + 3PTZ: 50 Hz: camera 01: 10 fps (720 × 720) 60 Hz: camera 01: 10 fps (720 × 720)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Scalable Video Coding (SVC)H.265 and H.264 encoding
  • Region of Interest (ROI)4 fixed regions for main stream and sub-stream
  • Fisheye Display
  • Mount Type Support table, wall, and ceiling mounting
  • Decoding ModeSupport hardware decoding and software decoding
  • Display Mode18 display modes in total Software decoding: Ceiling mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, hemisphere, AR hemisphere, cylinder Wall mount: fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ Table mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, cylinder Hardware decoding: Ceiling mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion Wall mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion Table mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion
  • Audio
  • Audio TypeMono sound
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)
  • Audio Sampling Rate8 kHz/16 kHz
  • Environment Noise FilteringYes
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • Simultaneous Live ViewUp to 20 channels
  • APIOpen Network Video Interface (PROFILE S, PROFILE G), ISAPI
  • User/HostUp to 32 users. 3 user levels, administrator, operator and user
  • SecurityPassword protection, HTTPS encryption, IEEE 802.1X port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, TLS 1.2
  • Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • ClientiVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200
  • Web BrowserChrome 57+, Firefox 52+, Safari 12+
  • Image
  • Image SettingsSaturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
  • Wide Dynamic Range (WDR)Digital WDR
  • Image EnhancementBLC, HLC, defog, 3D DNR
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
  • On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB
  • Built-in MicrophoneYes,two built-in microphone(s)
  • Built-in SpeakerYes
  • Audio1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarm 1 input, max. 12 V; 1 output, max 24 VDC, 1 A
  • RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Reset KeyYes
  • Event
  • Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflicted, illegal login, HDD full, HDD error)
  • Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
  • LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording, *For people counting, heat map, and intersection analysis, only notifying surveillance center is supported.
  • Deep Learning Function
  • People CountingCounts people entering, exiting and passing by separately Supports real-time uploading and uploading by statistic cycle Sends email reports on daily, weekly, monthly or annually basis Supports target filtering by height
  • Heat MapA graphic description of visits (calculated by people number or by dwell time) in a configured area. Two heap map report types are available, space heat map and time heat map line chart
  • Intersection AnalysisDetects and analyze flow in an intersection-like scene, and generate reports Support one intersection of up to 10 ways
  • General
  • Power12 VDC ± 25%, 0.9 A, max. 11 W, two-core terminal block PoE: 802.3af, class 0, 36 to 57 V, 0.34 A to 0.22 A, max. 12.95 W
  • MaterialMain body: Metal Cover: Plastic
  • Dimension167.4 mm × 152.8 mm × 55 mm (6. 6" × 6" × 2.2")
  • Package Dimension260 mm × 230 mm × 135 mm (10.2" × 9.1" × 5.3")
  • WeightApprox. 720 g (1.6 lb.)
  • With Package Weight Approx. 1.3 kg (2.9 lb.)
  • Startup and Operating Conditions-40 °C to +60 °C (-40 °F to +140 °F). Humidity 95% or less (non-condensing)
  • Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General FunctionOne-key reset, anti-flicker, heartbeat, password protection, privacy mask, watermark, IP address filter
  • HeaterYes
  • Approval
  • EMCFCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
  • SafetyUL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
  • EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • ProtectionIP67: IEC 60529-2013, IK10: IEC 62262:2002
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/1.7" Progressive Scan CMOS
Max. Resolution
4000 × 3000
Min. Illumination
Color: 0.05 Lux @ (F2.2, AGC ON), B/W: 0.01 Lux @ (F2.2, AGC ON), 0 Lux with IR
Shutter Time
1 s to 1/100,000 s
Day & Night
IR Cut Filter
Lens
Focal Length & FOV
1.29 mm, Horizontal FOV: 180°, vertical FOV: 180°
Lens Mount
M12
Aperture
F2.2
DORI
DORI
D: 27.9 m, O: 11.1 m, R: 5.6 m, I: 2.8 m
Illuminator
Supplement Light Type
3 IR LEDs, each LED is independently controlled
Supplement Light Range
Up to 15 m
IR Wavelength
850 nm
Video
Main Stream
Fisheye View: 50 Hz: 20 fps (4000 × 3000), 25 fps (3000 × 3000, 2560 × 2560) 60 Hz: 20 fps (4000 × 3000), 30 fps (3000 × 3000, 2560 × 2560) 180 Panorama View: 50 Hz: 20 fps (3072 × 2304, 3072 × 1152) 60 Hz: 20 fps (3072 × 2304, 3072 × 1152) Panorama View: 50 Hz: 20 fps (3072 × 2304, 3072 × 1152) 60 Hz: 20 fps (3072 × 2304, 3072 × 1152) 4PTZ: 50 Hz: camera 01: 20 fps (1600 × 1200) camera 02: 20 fps (1600 × 1200) camera 03: 20 fps (1600 × 1200) camera 04: 20 fps (1600 × 1200) 60 Hz: camera 01: 20 fps (1600 × 1200) camera 02: 20 fps (1600 × 1200) camera 03: 20 fps (1600 × 1200) camera 04: 20 fps (1600 × 1200) Fisheye + 3PTZ 50 Hz: camera 01: 10 fps (2560 × 2560, 2048 × 2048, 1280 × 1280) camera 02: 10 fps (1600 × 1200) camera 03: 10 fps (1600 × 1200) camera 04: 10 fps (1600 × 1200) 60 Hz: camera 01: 10 fps (2560 × 2560, 2048 × 2048, 1280 × 1280) camera 02: 10 fps (1600 × 1200) camera 03: 10 fps (1600 × 1200) camera 04: 10 fps (1600 × 1200) 4PTZ Fusion 50 Hz: 20 fps (3200 × 2400, 1600 × 1200, 1280 × 960, 1024 × 768) 60 Hz: 20 fps (3200 × 2400, 1600 × 1200, 1280 × 960, 1024 × 768)
Sub-Stream
Fisheye View: 50 Hz: 20 fps (720 × 720, 640 × 480) 60 Hz: 20 fps (720 × 720, 640 × 480) 180 Panorama View: 50 Hz: 20 fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 20 fps (640 × 480, 640 × 360, 320 × 240) Panorama View: 50 Hz: 20 fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 20 fps (640 × 480, 640 × 360, 320 × 240) Fisheye + 3PTZ: 50 Hz: camera 01: 10 fps (720 × 720) 60 Hz: camera 01: 10 fps (720 × 720)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Scalable Video Coding (SVC)
H.265 and H.264 encoding
Region of Interest (ROI)
4 fixed regions for main stream and sub-stream
Fisheye Display
Mount Type
Support table, wall, and ceiling mounting
Decoding Mode
Support hardware decoding and software decoding
Display Mode
18 display modes in total Software decoding: Ceiling mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, hemisphere, AR hemisphere, cylinder Wall mount: fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ Table mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, cylinder Hardware decoding: Ceiling mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion Wall mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion Table mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion
Audio
Audio Type
Mono sound
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)
Audio Sampling Rate
8 kHz/16 kHz
Environment Noise Filtering
Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Simultaneous Live View
Up to 20 channels
API
Open Network Video Interface (PROFILE S, PROFILE G), ISAPI
User/Host
Up to 32 users. 3 user levels, administrator, operator and user
Security
Password protection, HTTPS encryption, IEEE 802.1X port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, TLS 1.2
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client
iVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200
Web Browser
Chrome 57+, Firefox 52+, Safari 12+
Image Settings
Saturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser
Day/Night Switch
Day/Night/Auto/Schedule/Triggered by Alarm In
Wide Dynamic Range (WDR)
Digital WDR
Image Enhancement
BLC, HLC, defog, 3D DNR
Picture Overlay
LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Interface
Ethernet Interface
1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB
Built-in Microphone
Yes,two built-in microphone(s)
Built-in Speaker
Yes
Audio
1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm
1 input, max. 12 V; 1 output, max 24 VDC, 1 A
RS-485
1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key
Yes
Event
Basic Event
Motion detection, video tampering alarm, exception (network disconnected, IP address conflicted, illegal login, HDD full, HDD error)
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording, *For people counting, heat map, and intersection analysis, only notifying surveillance center is supported.
Deep Learning Function
People Counting
Counts people entering, exiting and passing by separately Supports real-time uploading and uploading by statistic cycle Sends email reports on daily, weekly, monthly or annually basis Supports target filtering by height
Heat Map
A graphic description of visits (calculated by people number or by dwell time) in a configured area. Two heap map report types are available, space heat map and time heat map line chart
Intersection Analysis
Detects and analyze flow in an intersection-like scene, and generate reports Support one intersection of up to 10 ways
General
Power
12 VDC ± 25%, 0.9 A, max. 11 W, two-core terminal block PoE: 802.3af, class 0, 36 to 57 V, 0.34 A to 0.22 A, max. 12.95 W
Material
Main body: Metal Cover: Plastic
Dimension
167.4 mm × 152.8 mm × 55 mm (6. 6" × 6" × 2.2")
Package Dimension
260 mm × 230 mm × 135 mm (10.2" × 9.1" × 5.3")
Weight
Approx. 720 g (1.6 lb.)
With Package Weight
Approx. 1.3 kg (2.9 lb.)
Startup and Operating Conditions
-40 °C to +60 °C (-40 °F to +140 °F). Humidity 95% or less (non-condensing)
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
One-key reset, anti-flicker, heartbeat, password protection, privacy mask, watermark, IP address filter
Heater
Yes
Approval
EMC
FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Safety
UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
Environment
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection
IP67: IEC 60529-2013, IK10: IEC 62262:2002
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Camera
  • Image Sensor1/1.7" Progressive Scan CMOS
  • Max. Resolution4000 × 3000
  • Min. IlluminationColor: 0.05 Lux @ (F2.2, AGC ON), B/W: 0.01 Lux @ (F2.2, AGC ON), 0 Lux with IR
  • Shutter Time1 s to 1/100,000 s
  • Day & NightIR Cut Filter
Lens
  • Focal Length & FOV1.29 mm, Horizontal FOV: 180°, vertical FOV: 180°
  • Lens MountM12
  • ApertureF2.2
DORI
  • DORID: 27.9 m, O: 11.1 m, R: 5.6 m, I: 2.8 m
Illuminator
  • Supplement Light Type3 IR LEDs, each LED is independently controlled
  • Supplement Light RangeUp to 15 m
  • IR Wavelength850 nm
Video
  • Main StreamFisheye View: 50 Hz: 20 fps (4000 × 3000), 25 fps (3000 × 3000, 2560 × 2560) 60 Hz: 20 fps (4000 × 3000), 30 fps (3000 × 3000, 2560 × 2560) 180 Panorama View: 50 Hz: 20 fps (3072 × 2304, 3072 × 1152) 60 Hz: 20 fps (3072 × 2304, 3072 × 1152) Panorama View: 50 Hz: 20 fps (3072 × 2304, 3072 × 1152) 60 Hz: 20 fps (3072 × 2304, 3072 × 1152) 4PTZ: 50 Hz: camera 01: 20 fps (1600 × 1200) camera 02: 20 fps (1600 × 1200) camera 03: 20 fps (1600 × 1200) camera 04: 20 fps (1600 × 1200) 60 Hz: camera 01: 20 fps (1600 × 1200) camera 02: 20 fps (1600 × 1200) camera 03: 20 fps (1600 × 1200) camera 04: 20 fps (1600 × 1200) Fisheye + 3PTZ 50 Hz: camera 01: 10 fps (2560 × 2560, 2048 × 2048, 1280 × 1280) camera 02: 10 fps (1600 × 1200) camera 03: 10 fps (1600 × 1200) camera 04: 10 fps (1600 × 1200) 60 Hz: camera 01: 10 fps (2560 × 2560, 2048 × 2048, 1280 × 1280) camera 02: 10 fps (1600 × 1200) camera 03: 10 fps (1600 × 1200) camera 04: 10 fps (1600 × 1200) 4PTZ Fusion 50 Hz: 20 fps (3200 × 2400, 1600 × 1200, 1280 × 960, 1024 × 768) 60 Hz: 20 fps (3200 × 2400, 1600 × 1200, 1280 × 960, 1024 × 768)
  • Sub-StreamFisheye View: 50 Hz: 20 fps (720 × 720, 640 × 480) 60 Hz: 20 fps (720 × 720, 640 × 480) 180 Panorama View: 50 Hz: 20 fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 20 fps (640 × 480, 640 × 360, 320 × 240) Panorama View: 50 Hz: 20 fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 20 fps (640 × 480, 640 × 360, 320 × 240) Fisheye + 3PTZ: 50 Hz: camera 01: 10 fps (720 × 720) 60 Hz: camera 01: 10 fps (720 × 720)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Scalable Video Coding (SVC)H.265 and H.264 encoding
  • Region of Interest (ROI)4 fixed regions for main stream and sub-stream
Fisheye Display
  • Mount Type Support table, wall, and ceiling mounting
  • Decoding ModeSupport hardware decoding and software decoding
  • Display Mode18 display modes in total Software decoding: Ceiling mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, hemisphere, AR hemisphere, cylinder Wall mount: fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ Table mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, cylinder Hardware decoding: Ceiling mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion Wall mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion Table mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion
Audio
  • Audio TypeMono sound
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)
  • Audio Sampling Rate8 kHz/16 kHz
  • Environment Noise FilteringYes
Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • Simultaneous Live ViewUp to 20 channels
  • APIOpen Network Video Interface (PROFILE S, PROFILE G), ISAPI
  • User/HostUp to 32 users. 3 user levels, administrator, operator and user
  • SecurityPassword protection, HTTPS encryption, IEEE 802.1X port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, TLS 1.2
  • Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • ClientiVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200
  • Web BrowserChrome 57+, Firefox 52+, Safari 12+
  • Image SettingsSaturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
  • Wide Dynamic Range (WDR)Digital WDR
  • Image EnhancementBLC, HLC, defog, 3D DNR
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Interface
  • Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
  • On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB
  • Built-in MicrophoneYes,two built-in microphone(s)
  • Built-in SpeakerYes
  • Audio1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarm 1 input, max. 12 V; 1 output, max 24 VDC, 1 A
  • RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Reset KeyYes
Event
  • Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflicted, illegal login, HDD full, HDD error)
  • Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
  • LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording, *For people counting, heat map, and intersection analysis, only notifying surveillance center is supported.
Deep Learning Function
  • People CountingCounts people entering, exiting and passing by separately Supports real-time uploading and uploading by statistic cycle Sends email reports on daily, weekly, monthly or annually basis Supports target filtering by height
  • Heat MapA graphic description of visits (calculated by people number or by dwell time) in a configured area. Two heap map report types are available, space heat map and time heat map line chart
  • Intersection AnalysisDetects and analyze flow in an intersection-like scene, and generate reports Support one intersection of up to 10 ways
General
  • Power12 VDC ± 25%, 0.9 A, max. 11 W, two-core terminal block PoE: 802.3af, class 0, 36 to 57 V, 0.34 A to 0.22 A, max. 12.95 W
  • MaterialMain body: Metal Cover: Plastic
  • Dimension167.4 mm × 152.8 mm × 55 mm (6. 6" × 6" × 2.2")
  • Package Dimension260 mm × 230 mm × 135 mm (10.2" × 9.1" × 5.3")
  • WeightApprox. 720 g (1.6 lb.)
  • With Package Weight Approx. 1.3 kg (2.9 lb.)
  • Startup and Operating Conditions-40 °C to +60 °C (-40 °F to +140 °F). Humidity 95% or less (non-condensing)
  • Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General FunctionOne-key reset, anti-flicker, heartbeat, password protection, privacy mask, watermark, IP address filter
  • HeaterYes
Approval
  • EMCFCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
  • SafetyUL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
  • EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • ProtectionIP67: IEC 60529-2013, IK10: IEC 62262:2002
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Technical documents

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.7.190_211210
IPC V5.7.190 Release Note --EN
Applied to:
DS-2CD63C5G0-IVS(1.29mm)(HIK USA)

Hikvision.com uses strictly necessary cookies and related technologies to enable the website to function. With your consent, we would also like to use cookies to observe and analyse traffic levels and other metrics / show you targeted advertising / show you advertising on the basis of your location / tailor our website's content. For more information on cookie practices please refer to our cookie policy.



Manage cookies Accept All
Accept All Manage cookies
Contact Sales
Technical Support
Subscribe Newsletter
Where to Buy
Contact Us

Get a better browsing experience

You are using a web browser we don’t support. Please try one of the following options to have a better experience of our web content.
