HOT

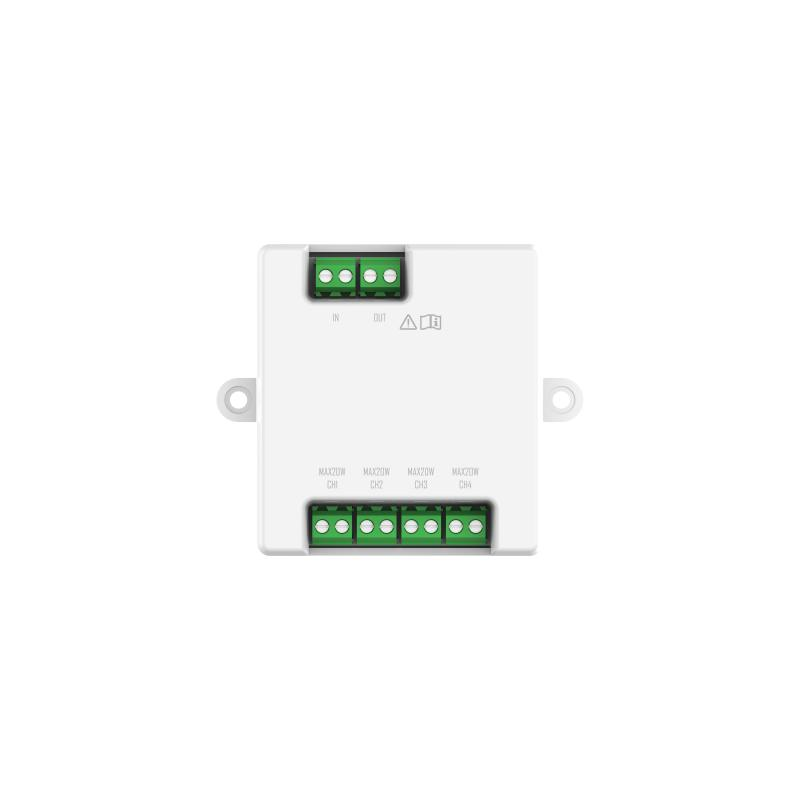

2-wire HD Distributor

  • 4 channels floor-shunt for Indoor station,support cascading
  • Small-size device, save installation space
  • 6 indicators show whether the device is working properly
  • No power supply required
View Less
View more

Available models:

DS-KAD7061EY

Specification

  • Device interfaces
  • Two-Wire interface4(Two-Wire interface for indoor station)
  • Cascade interface2
  • General
  • Installation Surface mounting
  • Indicator6
  • Dimension (W × H × D)70.6 mm × 60 mm × 25 mm (2.78" × 2.36" × 0.98")
  • Working temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working humidity10% to 90% (no-condensing)
  • Power consumption≤ 2W

Specification

Specification
Device interfaces
  • Two-Wire interface4(Two-Wire interface for indoor station)
  • Cascade interface2
General
  • Installation Surface mounting
  • Indicator6
  • Dimension (W × H × D)70.6 mm × 60 mm × 25 mm (2.78" × 2.36" × 0.98")
  • Working temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working humidity10% to 90% (no-condensing)
  • Power consumption≤ 2W
