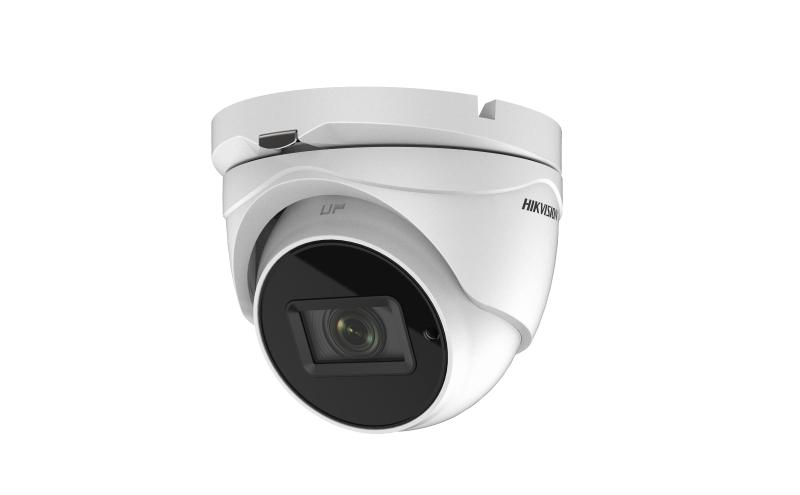

5 MP Ultra Low Light Motorized Varifocal Turret Camera

  • 5 MP high performance turret camera
  • Strong night performance, capturing images in ultra-low light down to 0.003 lux
  • Clear imaging even against strong back lighting due to 130 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • Lens focuses automatically when zooming in or out
  • EXIR 2.0: advanced infrared technology with 60 m IR distance
  • Water and dust resistant (IP67)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-2CE79H8T-AIT3ZF(2.7-13.5mm)
DS-2CE79H8T-AIT3ZF
Data Sheet

Specification

  • Camera
  • Image Sensor5 MP CMOS
  • Max. Resolution2560 (H) × 1944 (V)
  • Min. Illumination0.003 Lux@(F1.38, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/12.5s to 1/50, 000 s NTSC: 1/15 s to 1/50, 000 s
  • Day & NightICR
  • Angle AdjustmentPan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens Type2.7 mm to 13.5 mm motorized varifocal lens
  • Focal Length & FOV92.3° to 29.3°
  • Lens MountΦ14
  • Image
  • Image Parameters SwitchSTD/HIGH-SAT
  • Image SettingsBrightness, Sharpness, Mirror, Smart IR
  • Frame RateTVI: 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps CVI: 4MP@25fps, 4MP@30fps CVBS: PAL, NTSC
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)≥130 dB
  • Image EnhancementBLC, HLC
  • White BalanceATW/MANUAL
  • AGCSupport
  • Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
  • General
  • MaterialMetal
  • Dimension123.86 mm × 134.3 mm × 110.24 mm (4.88" × 5.29" × 4.34")
  • WeightApprox. 630 g (1.39 lb.)
  • Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
  • CommunicationHIKVISION-C
  • LanguageEnglish
  • Power Supply12 VDC ± 20%, 24 VAC ± 20%
  • ConsumptionMax. 10.5 W
  • IR RangeUp to 60 m
  • Approval
  • ProtectionIP67
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
5 MP CMOS
Max. Resolution
2560 (H) × 1944 (V)
Min. Illumination
0.003 Lux@(F1.38, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/12.5s to 1/50, 000 s NTSC: 1/15 s to 1/50, 000 s
Day & Night
ICR
Angle Adjustment
Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
Signal System
PAL/NTSC
Lens
Lens Type
2.7 mm to 13.5 mm motorized varifocal lens
Focal Length & FOV
92.3° to 29.3°
Lens Mount
Φ14
Image Parameters Switch
STD/HIGH-SAT
Image Settings
Brightness, Sharpness, Mirror, Smart IR
Frame Rate
TVI: 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps CVI: 4MP@25fps, 4MP@30fps CVBS: PAL, NTSC
Day/Night Mode
Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR)
≥130 dB
Image Enhancement
BLC, HLC
White Balance
ATW/MANUAL
AGC
Support
Interface
Video Output
Switchable TVI/AHD/CVI/CVBS
General
Material
Metal
Dimension
123.86 mm × 134.3 mm × 110.24 mm (4.88" × 5.29" × 4.34")
Weight
Approx. 630 g (1.39 lb.)
Operating Condition
-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
Communication
HIKVISION-C
Language
English
Power Supply
12 VDC ± 20%, 24 VAC ± 20%
Consumption
Max. 10.5 W
IR Range
Up to 60 m
Approval
Protection
IP67
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Camera
  • Image Sensor5 MP CMOS
  • Max. Resolution2560 (H) × 1944 (V)
  • Min. Illumination0.003 Lux@(F1.38, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/12.5s to 1/50, 000 s NTSC: 1/15 s to 1/50, 000 s
  • Day & NightICR
  • Angle AdjustmentPan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
  • Signal SystemPAL/NTSC
Lens
  • Lens Type2.7 mm to 13.5 mm motorized varifocal lens
  • Focal Length & FOV92.3° to 29.3°
  • Lens MountΦ14
  • Image Parameters SwitchSTD/HIGH-SAT
  • Image SettingsBrightness, Sharpness, Mirror, Smart IR
  • Frame RateTVI: 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps CVI: 4MP@25fps, 4MP@30fps CVBS: PAL, NTSC
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)≥130 dB
  • Image EnhancementBLC, HLC
  • White BalanceATW/MANUAL
  • AGCSupport
Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
General
  • MaterialMetal
  • Dimension123.86 mm × 134.3 mm × 110.24 mm (4.88" × 5.29" × 4.34")
  • WeightApprox. 630 g (1.39 lb.)
  • Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
  • CommunicationHIKVISION-C
  • LanguageEnglish
  • Power Supply12 VDC ± 20%, 24 VAC ± 20%
  • ConsumptionMax. 10.5 W
  • IR RangeUp to 60 m
Approval
  • ProtectionIP67
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
