DS-2CE72UF3T-PIRXO

HOT

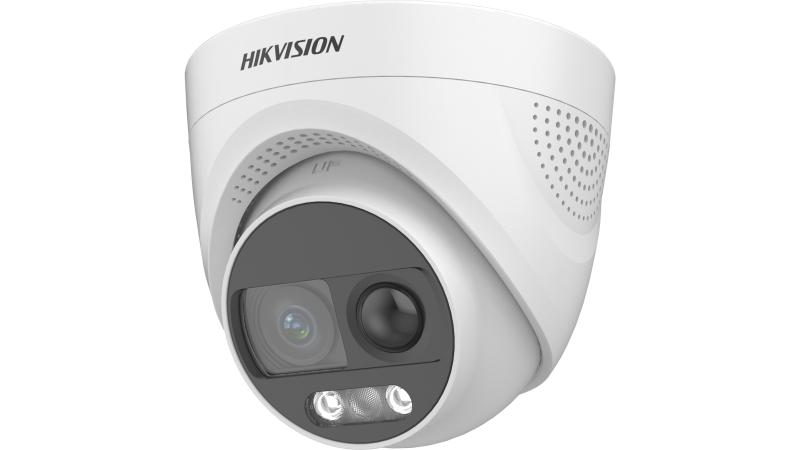

4K ColorVu PIR Siren Fixed Turret Camera

  • High quality imaging with 8 MP, 3840 × 2160 resolution
  • 24/7 color imaging
  • Clear imaging against strong back light due to 130 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • 2.8 mm, 3.6 mm fixed focal lens
  • Up to 20 m White Light distance for bright night imaging
  • Detects human body through heat-sensitive passive infrared (PIR)
  • Active strobe light and audio alarm to warn intruders off
  • Water and dust resistant (IP67)
  • High quality audio with built-in speaker

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-2CE72UF3T-PIRXO(2.8mm)
DS-2CE72UF3T-PIRXO(3.6mm)
DS-2CE72UF3T-PIRXO
HOT
Data Sheet

Specification

  • Camera
  • Image Sensor8 MP CMOS
  • Max. Resolution3840 (H) × 2160 (V)
  • Min. Illumination0.0005 Lux @ (F1.0,AGC ON), 0 Lux with white Light
  • Shutter TimePAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
  • Day & Night24/7 Color Imaging
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens Type2.8 mm, 3.6 mm fixed focal lens
  • Focal Length & FOV2.8 mm, horizontal FOV: 108°, vertical FOV: 57°, diagonal FOV: 127° 3.6 mm, horizontal FOV: 91°, vertical FOV: 45°, diagonal FOV: 110°
  • Lens MountM16
  • Illuminator
  • Supplement Light TypeWhite Light
  • Supplement Light RangeUp to 20 m
  • Smart Supplement LightYes
  • Image
  • Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
  • Image SettingsAGC;Brightness;Contrast;Mirror;Defective Pixel Correction;Sharpness;Anti-Banding;Smart Light
  • Frame Rate8 MP@12.5 fps/15 fps, 5 MP@20 fps, 1080P@25 fps/30 fps
  • Day/Night ModeColor
  • Wide Dynamic Range (WDR)≥130 dB
  • Image EnhancementWDR;BLC;HLC;Global;HLS
  • Privacy Mask4 programmable privacy masks
  • Noise Reduction3D DNR/2D DNR
  • White BalanceAuto/Manual
  • White LightAuto/Off
  • Supplement Detection(PIR)
  • PIR Range11 m
  • PIR Angle110°
  • Interface
  • Video Output1 HD analog output
  • Alarm1 line out flashing light alarm (white)
  • Event
  • Motion Detection4 programmable motion areas
  • General
  • Power12 VDC ± 25%, max. 6.4 W *You are recommended to use one power adapter to supply the power for one camera.
  • MaterialMain body: Metal, Enclosure: Plastic
  • DimensionØ 109.8 mm × 91.6 mm (Ø 4.32" × 3.6")
  • WeightApprox. 416 g (0.92 lb.)
  • Operating Condition-40°C to 60°C (-40°F to 140°F), humidity: 90% or less (non-condensing)
  • CommunicationHIKVISION-C
  • LanguageEnglish
  • Approval
  • ProtectionIP67
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
8 MP CMOS
Max. Resolution
3840 (H) × 2160 (V)
Min. Illumination
0.0005 Lux @ (F1.0,AGC ON), 0 Lux with white Light
Shutter Time
PAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
Day & Night
24/7 Color Imaging
Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Signal System
PAL/NTSC
Lens
Lens Type
2.8 mm, 3.6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 108°, vertical FOV: 57°, diagonal FOV: 127° 3.6 mm, horizontal FOV: 91°, vertical FOV: 45°, diagonal FOV: 110°
Lens Mount
M16
Illuminator
Supplement Light Type
White Light
Supplement Light Range
Up to 20 m
Smart Supplement Light
Yes
Image Parameters Switch
STD/HIGH-SAT/HIGHLIGHT
Image Settings
AGC;Brightness;Contrast;Mirror;Defective Pixel Correction;Sharpness;Anti-Banding;Smart Light
Frame Rate
8 MP@12.5 fps/15 fps, 5 MP@20 fps, 1080P@25 fps/30 fps
Day/Night Mode
Color
Wide Dynamic Range (WDR)
≥130 dB
Image Enhancement
WDR;BLC;HLC;Global;HLS
Privacy Mask
4 programmable privacy masks
Noise Reduction
3D DNR/2D DNR
White Balance
Auto/Manual
White Light
Auto/Off
Supplement Detection(PIR)
PIR Range
11 m
PIR Angle
110°
Interface
Video Output
1 HD analog output
Alarm
1 line out flashing light alarm (white)
Event
Motion Detection
4 programmable motion areas
General
Power
12 VDC ± 25%, max. 6.4 W *You are recommended to use one power adapter to supply the power for one camera.
Material
Main body: Metal, Enclosure: Plastic
Dimension
Ø 109.8 mm × 91.6 mm (Ø 4.32" × 3.6")
Weight
Approx. 416 g (0.92 lb.)
Operating Condition
-40°C to 60°C (-40°F to 140°F), humidity: 90% or less (non-condensing)
Communication
HIKVISION-C
Language
English
Approval
Protection
IP67
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Camera
  • Image Sensor8 MP CMOS
  • Max. Resolution3840 (H) × 2160 (V)
  • Min. Illumination0.0005 Lux @ (F1.0,AGC ON), 0 Lux with white Light
  • Shutter TimePAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
  • Day & Night24/7 Color Imaging
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
  • Signal SystemPAL/NTSC
Lens
  • Lens Type2.8 mm, 3.6 mm fixed focal lens
  • Focal Length & FOV2.8 mm, horizontal FOV: 108°, vertical FOV: 57°, diagonal FOV: 127° 3.6 mm, horizontal FOV: 91°, vertical FOV: 45°, diagonal FOV: 110°
  • Lens MountM16
Illuminator
  • Supplement Light TypeWhite Light
  • Supplement Light RangeUp to 20 m
  • Smart Supplement LightYes
  • Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
  • Image SettingsAGC;Brightness;Contrast;Mirror;Defective Pixel Correction;Sharpness;Anti-Banding;Smart Light
  • Frame Rate8 MP@12.5 fps/15 fps, 5 MP@20 fps, 1080P@25 fps/30 fps
  • Day/Night ModeColor
  • Wide Dynamic Range (WDR)≥130 dB
  • Image EnhancementWDR;BLC;HLC;Global;HLS
  • Privacy Mask4 programmable privacy masks
  • Noise Reduction3D DNR/2D DNR
  • White BalanceAuto/Manual
  • White LightAuto/Off
Supplement Detection(PIR)
  • PIR Range11 m
  • PIR Angle110°
Interface
  • Video Output1 HD analog output
  • Alarm1 line out flashing light alarm (white)
Event
  • Motion Detection4 programmable motion areas
General
  • Power12 VDC ± 25%, max. 6.4 W *You are recommended to use one power adapter to supply the power for one camera.
  • MaterialMain body: Metal, Enclosure: Plastic
  • DimensionØ 109.8 mm × 91.6 mm (Ø 4.32" × 3.6")
  • WeightApprox. 416 g (0.92 lb.)
  • Operating Condition-40°C to 60°C (-40°F to 140°F), humidity: 90% or less (non-condensing)
  • CommunicationHIKVISION-C
  • LanguageEnglish
Approval
  • ProtectionIP67
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
