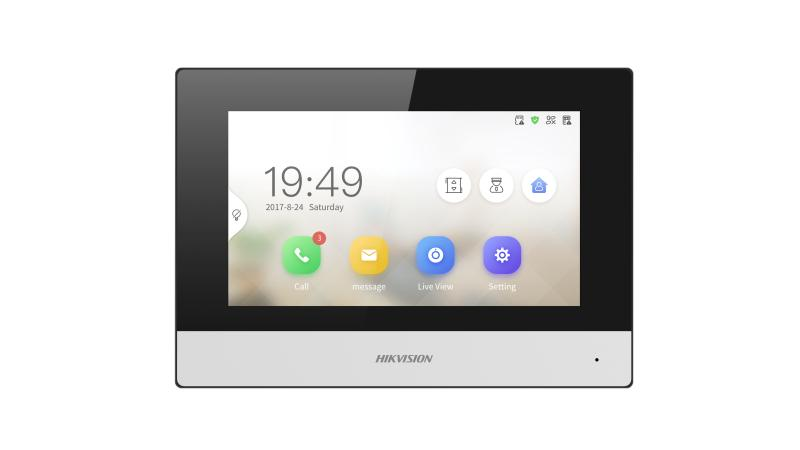

Two wire indoor stations

  • 7-inch capacitive touch-screen, Wi-Fi
  • TF card support, max to 32G
  • 8-ch alarm input, 2 × alarm output, 1 × RS485
  • Remote unlocking via the client or APP
  • Views live videos of door stations and linked cameras

Specification
  • Display parameters
  • Size7-inch
  • Operation methodCapacitive touch
  • Type TFT LCD
  • Video parameters
  • Lens/
  • FOV/
  • Pixel/
  • Audio parameters
  • Audio qualityNoise suppression and echo cancellation
  • Network parameters
  • Communication protocolTCP/IP, SIP, RTSP
  • Wired network10/100 Mbps self-adaptive
  • Wi-FiWi-Fi 802.11 b/g/n
  • Bluetooth/
  • Zigbee/
  • Device interfaces
  • Network interface1 RJ-45 10/100 Mbps self-adaptive
  • Power interface1
  • General
  • Button/
  • InstallationSurface mounting
  • Indicator/
  • 0.4 KG
  • Protective level/
  • Power supply methodTwo-wire
  • Working temperature-10 °C to 50 °C (-14 °F to 122 °F)
  • Working humidity0% to 90%
  • Dimensions200 mm × 140 mm × 15.1 mm (7.87" × 5.51" × 0.59")
  • Battery/
  • Application environmentIndoor
  • Power consumption≤ 6 W
  • LanguageEnglish, French, Portuguese (Brazil), Spanish, Russian, German, Italian, polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek
Specification
Firmware
Applied to:
DS-KH6320-WTE2(B)
*For better user experience, we highly recommend you to update your device to the latest firmware asap.
