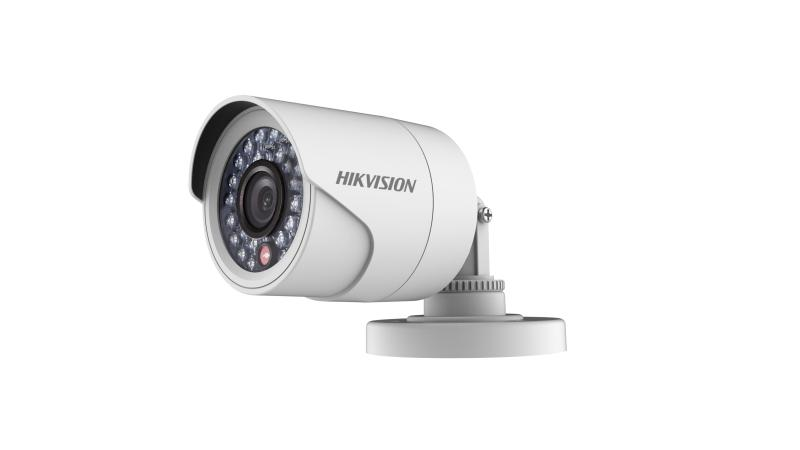

2 MP PoC Fixed Mini Bullet Camera

2 MP PoC bullet camera
Smart IR: up to 20 m IR distance
Water and dust resistant (IP67)
Transmits both HD video and power over the same coaxial cable

View Less

Data Sheet

Available models:

DS-2CE16D0T-IRPE(2.8mm)

DS-2CE16D0T-IRPE(3.6mm)

DS-2CE16D0T-IRPE

EOL

Specification
Resources
Accessories

Data Sheet

Kamera
Image Sensor2.0 megapixel progressive scan CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.01 Lux@(F2.0, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & NightIR Cut Filter
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
Signal SystemPAL/NTSC

Lens
Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV103.55° (2.8 mm), 82.63° (3.6 mm), 54.38° (6 mm)
Lens MountM12

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 20 m

Image SettingsBrightness;Sharpness;Mirror;AGC
Frame RatePAL: 1080p@25 fps NTSC: 1080p@30 fps
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
SNR> 62 dB
Image EnhancementBLC
Noise Reduction2D DNR

Interface
Video Output1 HD analog output

General
Power12 VDC ± 30%/PoC.af, Max. 3 W
MaterialPlastic
DimensionΦ 70 mm × 154.5 mm (Φ 2.76" × 6.08")
WeightApprox. 400 g (0.88 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish

Approval
ProtectionIP67

Kamera

Image Sensor

2.0 megapixel progressive scan CMOS

Max. Resolution

1920 (H) × 1080 (V)

Min. Illumination

0.01 Lux@(F2.0, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

Day & Night

IR Cut Filter

Angle Adjustment

Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°

Signal System

PAL/NTSC

Lens

Lens Type

2.8 mm, 3.6 mm, 6 mm fixed lens

Focal Length & FOV

103.55° (2.8 mm), 82.63° (3.6 mm), 54.38° (6 mm)

Lens Mount

M12

Illuminator

Supplement Light Type

IR

Supplement Light Range

Up to 20 m


Image Settings

Brightness;Sharpness;Mirror;AGC

Frame Rate

PAL: 1080p@25 fps NTSC: 1080p@30 fps

Day/Night Mode

Auto/Color/BW (Black and White)

Wide Dynamic Range (WDR)

Digital WDR

SNR

> 62 dB

Image Enhancement

BLC

Noise Reduction

2D DNR

Interface

Video Output

1 HD analog output

General

Power

12 VDC ± 30%/PoC.af, Max. 3 W

Material

Plastic

Dimension

Φ 70 mm × 154.5 mm (Φ 2.76" × 6.08")

Weight

Approx. 400 g (0.88 lb.)

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)

Communication

HIKVISION-C

Language

English

Approval

Protection

IP67
