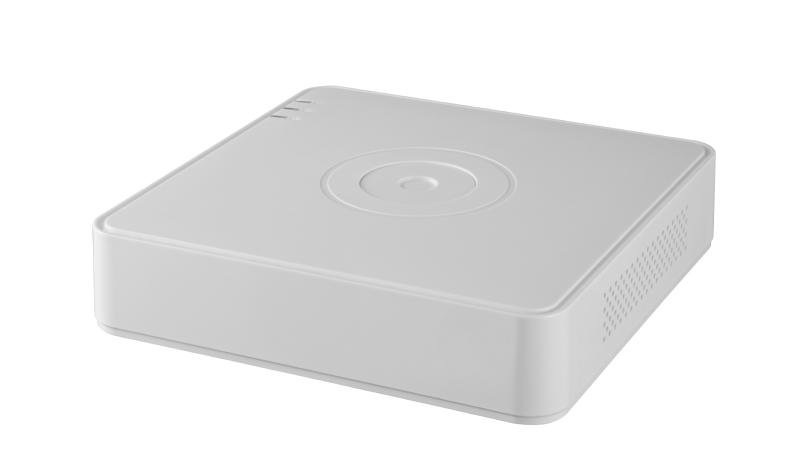

8-ch 1080p Mini 1U Lite H.264 DVR

  • 8 channels and 1 HDD mini size DVR
  • H.264+ / H.264 video compression
  • Encoding ability up to 1080p lite @ 12 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 10 network cameras can be connected

View Less
View more
Sales Inquiry

Available models:

DS-7108HGHI-F1/N
DS-7108HGHI-F1/N(S)
DS-7108HGHI-F1/N(S)
DS-7108HGHI-F1/N
EOL

Specification

  • Recording
  • Video compressionH.264+/H.264
  • Encoding resolutionWhen 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF,When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF,
  • Frame rateMain stream: ,When 1080p lite mode enabled:,1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N),When 1080p lite mode not enabled:,For 720p stream access:,720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N),For SD stream access: ,WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,CIF/QVGA/QCIF@25fps (P)/30fps (N)
  • Video bit rate32 Kbps to 4 Mbps
  • Dual streamSupport
  • Stream typeVideo, Video & Audio
  • Audio compressionG.711u
  • Audio bit rate64 Kbps
  • Video and Audio
  • IP video inputUp to 8-ch Up to 960p resolution Support H.264+/H.264 IP cameras
  • Analog video input8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • Turbo HD input1080p25, 1080p30, 720p25, 720p30
  • AHD input1080p25, 1080p30, 720p25, 720p30
  • HDCVI input1080p25, 1080p30, 720p25, 720p30
  • CVBS inputSupport
  • Audio input1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Audio output1-ch, RCA (Linear, 1 KΩ)
  • Two-way audioReuse the first audio input
  • Synchronous playback8-ch
  • VGA/HDMI output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Network
  • Remote connections128
  • Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
  • Network interface1, RJ45 10M/100M self-adaptive Ethernet interface
  • Auxiliary interface
  • SATA1 SATA interface
  • CapacityUp to 6 TB capacity for each disk
  • Alarm in/outN/A
  • USB interfaceRear panel: 2 × USB 2.0
  • General
  • Power supply12 VDC
  • Consumption (without HDD)≤ 12 W
  • Working temperature-10 °C to 55 °C (14 °F to +31 °F)
  • Working humidity10% to 90%
  • Dimensions (W × D × H)200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
  • Weights (without HDD)≤ 0.8 kg (1.8 lb)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Recording
Video compression
H.264+/H.264
Encoding resolution
When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF,When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF,
Frame rate
Main stream: ,When 1080p lite mode enabled:,1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N),When 1080p lite mode not enabled:,For 720p stream access:,720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N),For SD stream access: ,WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video bit rate
32 Kbps to 4 Mbps
Dual stream
Support
Stream type
Video, Video & Audio
Audio compression
G.711u
Audio bit rate
64 Kbps
Video and Audio
IP video input
Up to 8-ch Up to 960p resolution Support H.264+/H.264 IP cameras
Analog video input
8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
Turbo HD input
1080p25, 1080p30, 720p25, 720p30
AHD input
1080p25, 1080p30, 720p25, 720p30
HDCVI input
1080p25, 1080p30, 720p25, 720p30
CVBS input
Support
Audio input
1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio output
1-ch, RCA (Linear, 1 KΩ)
Two-way audio
Reuse the first audio input
Synchronous playback
8-ch
VGA/HDMI output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Network
Remote connections
128
Network protocols
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Network interface
1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary interface
SATA
1 SATA interface
Capacity
Up to 6 TB capacity for each disk
Alarm in/out
N/A
USB interface
Rear panel: 2 × USB 2.0
General
Power supply
12 VDC
Consumption (without HDD)
≤ 12 W
Working temperature
-10 °C to 55 °C (14 °F to +31 °F)
Working humidity
10% to 90%
Dimensions (W × D × H)
200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
Weights (without HDD)
≤ 0.8 kg (1.8 lb)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Recording
  • Video compressionH.264+/H.264
  • Encoding resolutionWhen 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF,When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF,
  • Frame rateMain stream: ,When 1080p lite mode enabled:,1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N),When 1080p lite mode not enabled:,For 720p stream access:,720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N),For SD stream access: ,WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,CIF/QVGA/QCIF@25fps (P)/30fps (N)
  • Video bit rate32 Kbps to 4 Mbps
  • Dual streamSupport
  • Stream typeVideo, Video & Audio
  • Audio compressionG.711u
  • Audio bit rate64 Kbps
Video and Audio
  • IP video inputUp to 8-ch Up to 960p resolution Support H.264+/H.264 IP cameras
  • Analog video input8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • Turbo HD input1080p25, 1080p30, 720p25, 720p30
  • AHD input1080p25, 1080p30, 720p25, 720p30
  • HDCVI input1080p25, 1080p30, 720p25, 720p30
  • CVBS inputSupport
  • Audio input1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Audio output1-ch, RCA (Linear, 1 KΩ)
  • Two-way audioReuse the first audio input
  • Synchronous playback8-ch
  • VGA/HDMI output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Network
  • Remote connections128
  • Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
  • Network interface1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary interface
  • SATA1 SATA interface
  • CapacityUp to 6 TB capacity for each disk
  • Alarm in/outN/A
  • USB interfaceRear panel: 2 × USB 2.0
General
  • Power supply12 VDC
  • Consumption (without HDD)≤ 12 W
  • Working temperature-10 °C to 55 °C (14 °F to +31 °F)
  • Working humidity10% to 90%
  • Dimensions (W × D × H)200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
  • Weights (without HDD)≤ 0.8 kg (1.8 lb)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V4.30.122_201107
Firmware_Asia_V4.30.122_201107
Turbo HD DVR_V4.30.122 build 201107
Applied to:
DS-7108HGHI-F1/N
DS-7108HGHI-F1/N(S)
Firmware_V4.30.100_200108
Applied to:
DS-7108HGHI-F1/N(S)
DS-7108HGHI-F1/N
