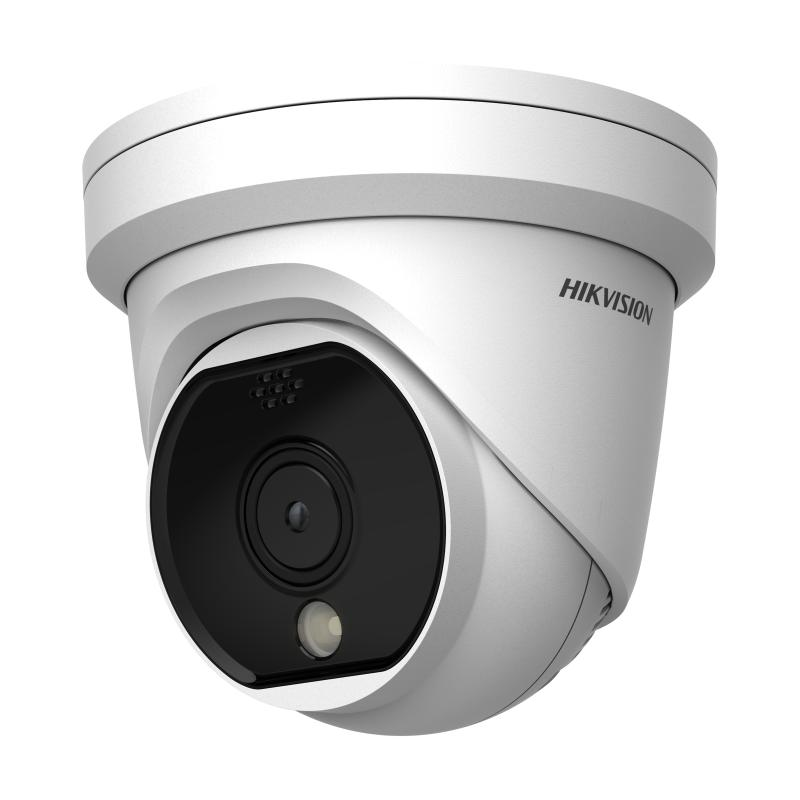

DS-2TD1117-6/PA

EOL

Thermal Network Turret Camera

  • High sensitivity thermal module with 160 x 120 resolution
  • NETD is less than 40 mk (@25° C, F#=1.1)
  • Supports contrast adjustment
  • Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
  • Up to 15 palettes of adjustable color
  • Powerful behavior analysis functions, based on deep learning algorithm: Line crossing, intrusion, region entrance & exit
  • Reliable temperature-anomaly alarm
  • Advanced fire detection algorithm
  • Strobe light and audio alarm
View Less
View more
Sales Inquiry

Available models:

DS-2TD1117-6/PA
DS-2TD1117-6/PA
EOL

Specification

  • Thermal Module
  • Image SensorVanadium Oxide Uncooled Focal Plane Arrays
  • Resolution160 × 120 (the resolution of output image is 320 × 240)
  • Pixel Interval17 μm
  • Response Waveband8 μm to 14 μm
  • NETDLess than 40 mK (@ 25 °C,F#=1.1)
  • Focal Length6.2 mm
  • IFOV2.74 mrad
  • Field of View25.0° × 18.7° (H × V)
  • Min. Focusing Distance0.6 m
  • ApertureF1.1
  • Digital Zoom×2, ×4, ×8
  • Image Effect
  • Target ColorationYes. Supported in white hot and black hot mode.
  • Audible and Visual Alarm
  • White Light RangeUp to 30 m
  • Visual AlarmYes. White light used as the visual alarm, flashing frequency adjustable
  • Audio alarmYes. 6 audio alarms are supported to cover all kinds of alarm.
  • Smart Function
  • VCA4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules totally.
  • Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
  • Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
  • Temperature Accuracy± 8 °C (±14.4 °F)
  • Fire DetectionDynamic fire detection, up to 10 fire points detectable.
  • Video and Audio
  • Main Stream50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)
  • Sub-stream50 Hz: 25 fps (704 × 576, 352 × 288, 320 × 240)
  • Third Stream50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288, 320 × 240)
  • Video CompressionMain Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
  • Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
  • Network
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
  • APIISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
  • SecurityUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
  • Simultaneous Live ViewUp to 20 channels
  • ClientiVMS-4200, Hik-Connect
  • Web BrowserLive view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +
  • Network StorageBuilt-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 G), supports manual/alarm recording
  • User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
  • Interface
  • Alarm Input1-ch inputs (0-5 VDC)
  • Alarm Output1-ch relay outputs, alarm response actions configurable
  • Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
  • Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
  • Audio OutputLinear Level; Impedance: 600 Ω
  • Communication Interface1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface
  • General
  • Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • Power Supply12 VDC ± 20%, two-core terminal block PoE (802.3af, class 3)
  • Power Consumption12 VDC ± 20%: 0.4 A, max. 4.5 W PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 5 W
  • Working Temperature/Humidity-40 °C to 65 °C (-40 °F to 149 °F) 95% or less
  • Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Dimensions138.3 mm × 138.3 mm × 123.1 mm (5.45 " × 5.45" × 4.85 ")
  • Weight920 g (2.03 lb)
  • Detection Range Table/Wide Range Coverage
  • Detection Range for Humans (1.8×0.5m)182 m
  • Detection Range for Vehicles (4.0×1.4m)559 m
  • Recognition Range for Humans (1.8×0.5m)46 m
  • Recognition Range for Vehicles (4.0×1.4m)140 m
  • Identification Range for Humans (1.8×0.5m)23 m
  • Identification Range for Vehicles (4.0×1.4m)70 m
  • Detection Range Table/Smart Function Range
  • VCA Range for Humans42 m
  • VCA Range for Vehicles126 m
  • Temperature Measurement Range for Object (2m×2m)132 m
  • Temperature Measurement Range for Object (1m×1m)66 m
  • Fire Detection Range for Object (2m×2m)360 m
  • Fire Detection Range for Object (1m×1m)180 m
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
