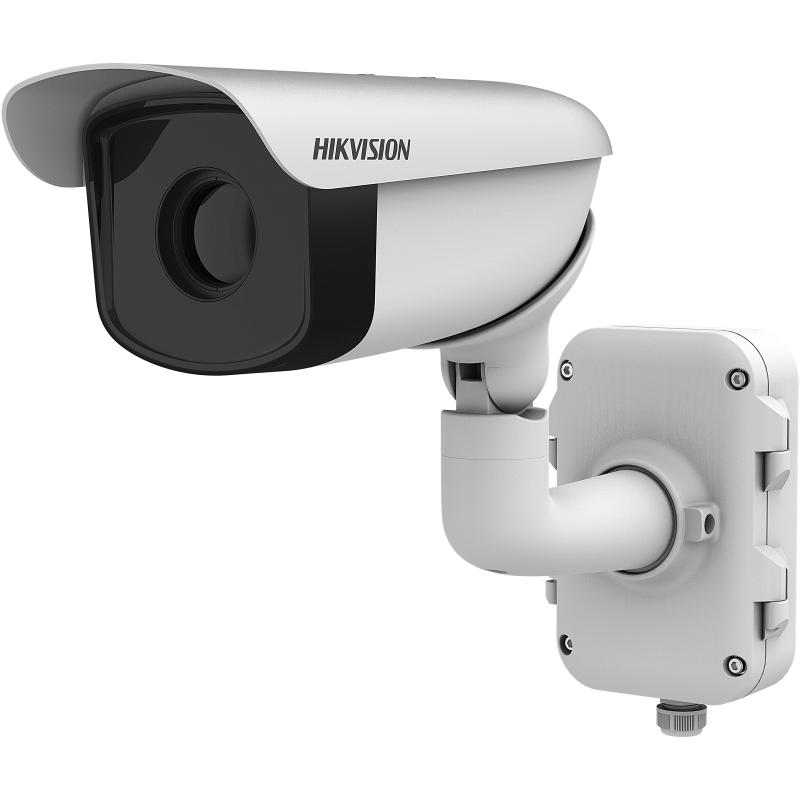

DS-2TD2367-50/P

    EOL

    Thermal Network Bullet Camera

    • 640 x 512 resolution, 17 μm, VOx UFPA, NETD < 35 mK (25 °C, F# = 1.0)
    • Behavior analysis functions, based on deep learning algorithm: Line crossing, intrusion, region entrance & exit
    • Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
    • Temperature exception alarm
    • Fire detection algorithm

    View Less
    View more

    Available models:

    DS-2TD2367-50/P

    Specification

    • Thermal Module
    • Image SensorVanadium Oxide Uncooled Focal Plane Arrays
    • Resolution640 × 512
    • Pixel Interval17 μm
    • Response Waveband8 μm to 14 μm
    • NETD< 35 mk (25 °C, F# = 1.0)
    • Focal Length50mm
    • IFOV0.34 mrad
    • Field of View12.4° × 10° (H × V)
    • Min. Focusing Distance50 m
    • ApertureF 1.0
    • Digital Zoom×2, ×4, ×8
    • Image Effect
    • Target ColorationYes. Supported in white hot and black hot mode.
    • Smart Function
    • VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
    • Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
    • Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
    • Temperature AccuracyMax (±8 °C, ±8 %)
    • Fire DetectionDynamic fire detection, up to 10 fire points detectable.
    • Video and Audio
    • Main Stream50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 512,352 × 288)
    • Sub-stream50 Hz: 25 fps (704 × 576, 640 × 512,352 × 288)
    • Third Stream50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 512,352 × 288)
    • Video CompressionMain Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
    • Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/AAC/PCM
    • Network
    • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
    • APIISAPI, HIKVISION SDK, open network video interface
    • SecurityUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x (EAP-MD5, EAP-TLS), access control, IP address filtering
    • Simultaneous Live ViewUp to 20 channels
    • ClientiVMS-4200, Hik-Connect
    • Web BrowserIE 11, Chrome 41-44, Firefox 30-51
    • Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
    • User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
    • Interface
    • Alarm Input2, alarm input (0-5 VDC)
    • Alarm Output2, alarm output
    • Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
    • Audio Input1, 3.5 mm Mic in/Line in interface Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
    • Audio OutputLinear level, impedance: 600 Ω
    • Communication Interface1, RJ45 10 M/100 M self-adaptive Ethernet interface 1, RS-485 interface 1, Single Mode Fiber interface; TX: 1310 nm; RX 1550 nm; Transmission Distance: 20 km; Transmission Speed: 100 M;
    • General
    • Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
    • Power Supply24 VAC ± 25%, two-core terminal block PoE (802.3at, class 4)
    • Power Consumption18 VAC to 30 VAC: 0.13 A to 0.22 A, max 5 W 9 VDC to 15 VDC: 0.37 A to 0.61 A, max 5 W PoE (802.3at, class 4): 44 V to 57 V: 0.1 A to 0.13 A, max. 5.5 W
    • Working Temperature/HumidityTemperature: - 40 °C to 65 °C (- 40 °F to 149 °F) Humidity: 90% or less
    • Protection LevelIP67 Standard TVS 6000V lightning protection, surge protection, voltage transient protection
    • Dimensions535mm × 400mm × 171mm (21.06" × 15.75" × 6.73")
    • WeightApprox. 6.40 kg (14.11 lb)
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

    Specification

    Thermal Module
    Image Sensor
    Vanadium Oxide Uncooled Focal Plane Arrays
    Resolution
    640 × 512
    Pixel Interval
    17 μm
    Response Waveband
    8 μm to 14 μm
    NETD
    < 35 mk (25 °C, F# = 1.0)
    Focal Length
    50mm
    IFOV
    0.34 mrad
    Field of View
    12.4° × 10° (H × V)
    Min. Focusing Distance
    50 m
    Aperture
    F 1.0
    Digital Zoom
    ×2, ×4, ×8
    Image Effect
    Target Coloration
    Yes. Supported in white hot and black hot mode.
    Smart Function
    VCA
    4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
    Temperature Measurement
    3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
    Temperature Range
    -20 °C to 150 °C (-4 °F to 302 °F)
    Temperature Accuracy
    Max (±8 °C, ±8 %)
    Fire Detection
    Dynamic fire detection, up to 10 fire points detectable.
    Video and Audio
    Main Stream
    50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 512,352 × 288)
    Sub-stream
    50 Hz: 25 fps (704 × 576, 640 × 512,352 × 288)
    Third Stream
    50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 512,352 × 288)
    Video Compression
    Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
    Audio Compression
    G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/AAC/PCM
    Network
    Protocols
    IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
    API
    ISAPI, HIKVISION SDK, open network video interface
    Security
    User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x (EAP-MD5, EAP-TLS), access control, IP address filtering
    Simultaneous Live View
    Up to 20 channels
    Client
    iVMS-4200, Hik-Connect
    Web Browser
    IE 11, Chrome 41-44, Firefox 30-51
    Network Storage
    MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
    User/Host level
    Up to 32 users, 3 levels: Administrator, Operator, User
    Interface
    Alarm Input
    2, alarm input (0-5 VDC)
    Alarm Output
    2, alarm output
    Alarm Action
    SD recording/Relay output/Smart capture/FTP upload/Email linkage
    Audio Input
    1, 3.5 mm Mic in/Line in interface Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
    Audio Output
    Linear level, impedance: 600 Ω
    Communication Interface
    1, RJ45 10 M/100 M self-adaptive Ethernet interface 1, RS-485 interface 1, Single Mode Fiber interface; TX: 1310 nm; RX 1550 nm; Transmission Distance: 20 km; Transmission Speed: 100 M;
    General
    Web Client Language
    32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
    Power Supply
    24 VAC ± 25%, two-core terminal block PoE (802.3at, class 4)
    Power Consumption
    18 VAC to 30 VAC: 0.13 A to 0.22 A, max 5 W 9 VDC to 15 VDC: 0.37 A to 0.61 A, max 5 W PoE (802.3at, class 4): 44 V to 57 V: 0.1 A to 0.13 A, max. 5.5 W
    Working Temperature/Humidity
    Temperature: - 40 °C to 65 °C (- 40 °F to 149 °F) Humidity: 90% or less
    Protection Level
    IP67 Standard TVS 6000V lightning protection, surge protection, voltage transient protection
    Dimensions
    535mm × 400mm × 171mm (21.06" × 15.75" × 6.73")
    Weight
    Approx. 6.40 kg (14.11 lb)
    For better user experience, we highly recommend you to update your device to the latest firmware asap.
    Specification
    Thermal Module
    • Image SensorVanadium Oxide Uncooled Focal Plane Arrays
    • Resolution640 × 512
    • Pixel Interval17 μm
    • Response Waveband8 μm to 14 μm
    • NETD< 35 mk (25 °C, F# = 1.0)
    • Focal Length50mm
    • IFOV0.34 mrad
    • Field of View12.4° × 10° (H × V)
    • Min. Focusing Distance50 m
    • ApertureF 1.0
    • Digital Zoom×2, ×4, ×8
    Image Effect
    • Target ColorationYes. Supported in white hot and black hot mode.
    Smart Function
    • VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
    • Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
    • Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
    • Temperature AccuracyMax (±8 °C, ±8 %)
    • Fire DetectionDynamic fire detection, up to 10 fire points detectable.
    Video and Audio
    • Main Stream50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 512,352 × 288)
    • Sub-stream50 Hz: 25 fps (704 × 576, 640 × 512,352 × 288)
    • Third Stream50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 512,352 × 288)
    • Video CompressionMain Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
    • Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/AAC/PCM
    Network
    • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
    • APIISAPI, HIKVISION SDK, open network video interface
    • SecurityUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x (EAP-MD5, EAP-TLS), access control, IP address filtering
    • Simultaneous Live ViewUp to 20 channels
    • ClientiVMS-4200, Hik-Connect
    • Web BrowserIE 11, Chrome 41-44, Firefox 30-51
    • Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
    • User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
    Interface
    • Alarm Input2, alarm input (0-5 VDC)
    • Alarm Output2, alarm output
    • Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
    • Audio Input1, 3.5 mm Mic in/Line in interface Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
    • Audio OutputLinear level, impedance: 600 Ω
    • Communication Interface1, RJ45 10 M/100 M self-adaptive Ethernet interface 1, RS-485 interface 1, Single Mode Fiber interface; TX: 1310 nm; RX 1550 nm; Transmission Distance: 20 km; Transmission Speed: 100 M;
    General
    • Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
    • Power Supply24 VAC ± 25%, two-core terminal block PoE (802.3at, class 4)
    • Power Consumption18 VAC to 30 VAC: 0.13 A to 0.22 A, max 5 W 9 VDC to 15 VDC: 0.37 A to 0.61 A, max 5 W PoE (802.3at, class 4): 44 V to 57 V: 0.1 A to 0.13 A, max. 5.5 W
    • Working Temperature/HumidityTemperature: - 40 °C to 65 °C (- 40 °F to 149 °F) Humidity: 90% or less
    • Protection LevelIP67 Standard TVS 6000V lightning protection, surge protection, voltage transient protection
    • Dimensions535mm × 400mm × 171mm (21.06" × 15.75" × 6.73")
    • WeightApprox. 6.40 kg (14.11 lb)
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
