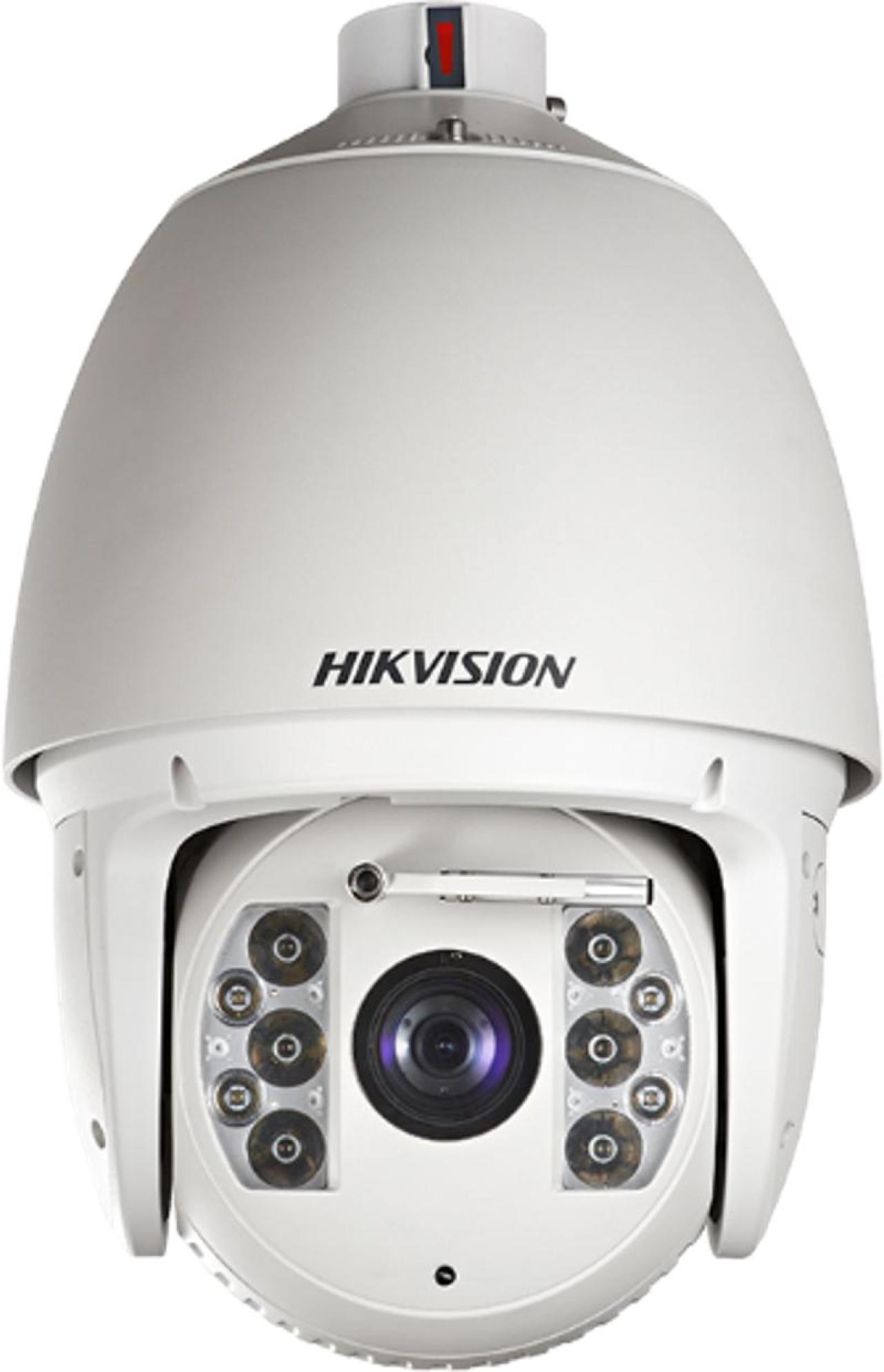

DS-2DF7232IX-AELW(T3)

7-inch 2 MP 32X DarkFighter IR Network Speed Dome

1/2.8" progressive scan CMOS
Up to 1920 × 1080 resolution
Min. Illumination: Color: 0.002 Lux @(F1.2, AGC ON),B/W: 0.0002 Lux @(F1.2, AGC ON),0 Lux with IR
32× optical zoom, 16× digital zoom
120dB WDR, 3D DNR, HLC, Smart IR
24 VAC & Hi-PoE
Up to 200 m IR distance
Support H.265+/H.265 video compression
Deep-learning-based target classification algorithm for auto-tracking 2.0 and perimeter protection
Rapid focus
IP66

View Less

Available models:

DS-2DF7232IX-AELW(T3)

EOL

Specification
Resources
Accessories

Kamera
Image Sensor1/2.8" progressive scan CMOS
Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON) B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Speed1 to 1/30,000 s
Focusauto;semi-auto;manual
Day & NightICR
BLCyes
WDR120 dB WDR
HLCyes
3D DNRyes
EISyes
Regional Exposureyes
Regional Focusyes
White Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor
Digital Zoom16x
Privacy Maskup to 24 masks;polygon region ;mosaic mask ;mask color configurable
Optical Defogyes

Lens
Focal Length4.8 mm to 153 mm, 32× Optical
Zoom Speedapprox. 5.6 s (optical lens, wide tele)
FOVHorizontal field of view: 58.4° to 2.14° (wide-tele), Vertical field of view: 33.8° to 1.2° (wide-tele), Diagonal field of view: 65.6° to 2.46° (wide-tele)
ApertureF1.2-4.4

Illuminator
IR Distance300m
Smart IRyes

PTZ
Movement Range (Pan)360°
Movement Range (Tilt)-15° to 90° (auto flip)
Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
Tilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
Proportional Zoomyes
Presets300
Patrol Scan8 patrols
Pattern Scan4 pattern scans
Power-off Memoryyes
Park Actionpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan
3D Positioningyes
PTZ Status Displayyes
Preset Freezingyes
Scheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output

Video
Max. Resolution1920 × 1080
Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video CompressionH.265;H.264;MJPEG
H.264 Typebaseline profile;main profile;high profile
H.265 Typemain profile
H.264+yes
H.265+yes
SVCyes
ROIdynamic face tracking;dynamic license plate tracking;dynamic target tracking

Audio
Audio CompressionG.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM

Smart Features
Basic Eventaudio exception;alarm input and output;motion detection
Smart Eventintrusion detection;line crossing detection;region entrance detection;region exiting detection;unattended baggage detection;object removal detection
Smart Trackingmanual tracking;auto-tracking;event tracking
Smart RecordANR;Dual-VCA
Alarm Linkagepreset;patrol scan;pattern scan;memory card video recording; upload to FTP;sending email;notify surveillance center;NAS video recording

Interface
Communication InterfaceRJ45, self-adaptive 10M/100M Ethernet port
On-board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
Alarm Input7 alarm inputs
Alarm Output2 alarm output
Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Audio Output1 audio output, line level, impedance: 600 Ω
Video OutputNTSC;PAL;1.0V[p-p]/75Ω
RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive

General
Power24 V, 3.0 A, 50/60Hz, AC (Max. 60 W), Hi-PoE, 42.5 to 57 V, 1.41 A (Max. 50 W) Total max. 60 W, including max. 18 W for IR, max. 6 W for heater
Operating ConditionsTemperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%
Wiperyes
DimensionsΦ 245 mm × 373.94 mm (Φ 9.65" × 14.72")
WeightApprox. 6 kg (13.23 lb)
Web Client Language32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Approval
ProtectionIP66

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
APIONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users,3 levels: Administrator, Operator and User
Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web BrowserIE 8 to 11, Chrome 31.0+, Firefox 30.0+, Safari 11+
