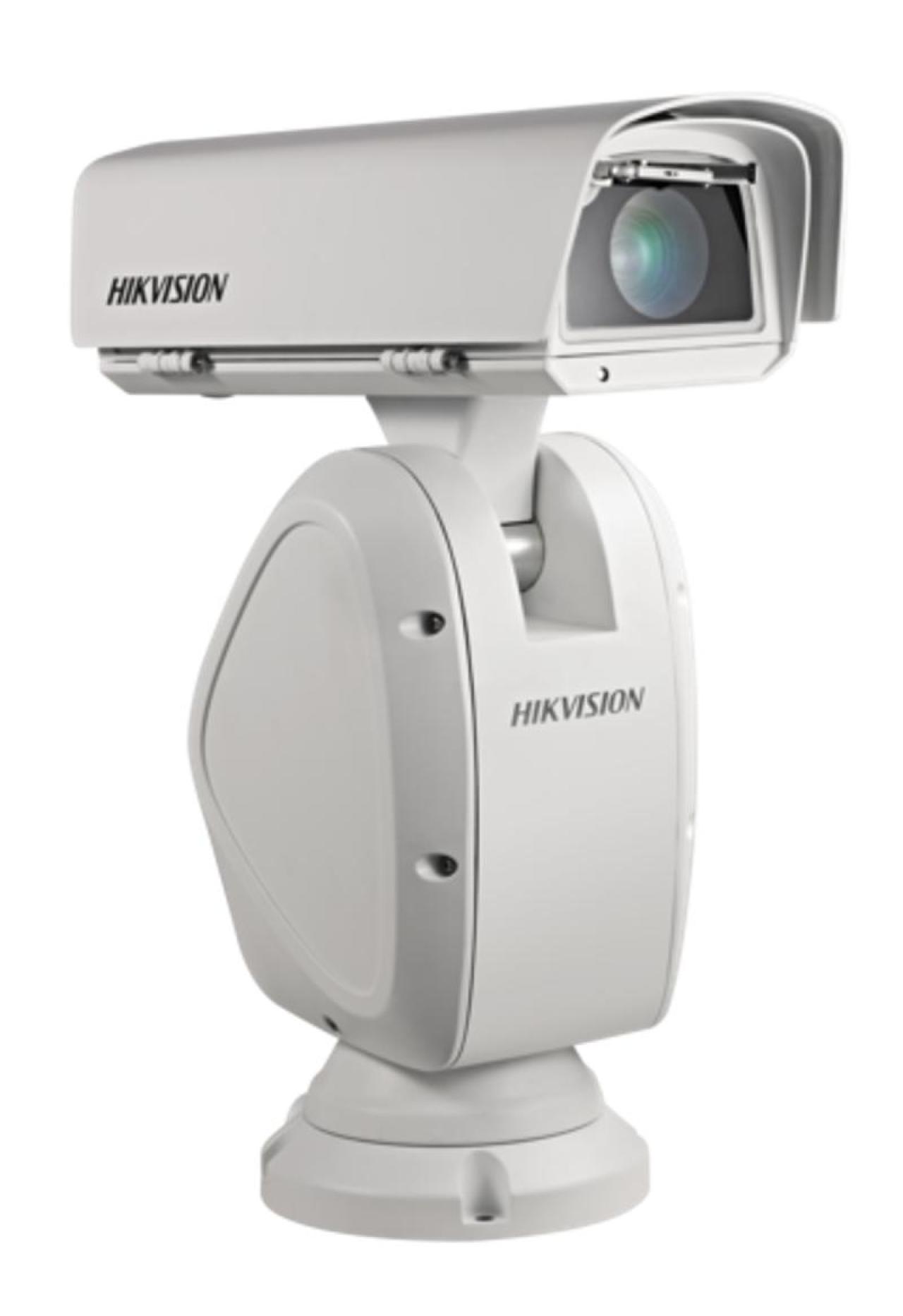

DS-2DY9236X-A(T3)

9-inch 2 MP 36X DarkFighter Network Positioning System

1/1.8" progressive scan CMOS
Up to 1920 × 1080 resolution
Min. illumination:Color: 0.002 Lux @(F1.3, AGC ON) ,B/W: 0.0002 Lux @(F1.3, AGC ON)
Rain-sensing auto wiper
36× optical zoom, 16×digital zoom
140dB WDR, 3D DNR, HLC, BLC
24 VAC
Support H.265+/H.265 video compression

View Less

Available models:

DS-2DY9236X-A(T3)

EOL

Specification
Resources
Accessories

Data Sheet

Kamera
Image Sensor1/1.8＂ progressive scan CMOS
Min. IlluminationColor: 0.002 Lux @ (F1.3, AGC ON) B/W: 0.0002 Lux @ ((F1.3, AGC ON)
Shutter Speed1/1s ~ 1/30,000s
Focusauto;semi-auto;manual
Day & NightICR
BLCyes
WDR140 dB WDR
HLCyes
3D DNRyes
EISYes. Built-in gyroscope to improve EIS performance.
Regional Exposureyes
Regional Focusyes
White Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor
Digital Zoom16x
Optical Zoom36x
Privacy Maskup to 24 masks;polygon region ;mosaic mask ;mask color configurable
General Functionmirror, password protection, watermark, IP address filter

Lens
Focal Length6.0mm to 216mm，36× Optical
Zoom Speedapprox. 4.5 s
FOVHorizontal field of view: 56.6° to 2.0° (wide-tele), Vertical field of view: 33.7° to 1.2° (wide-tele), Diagonal field of view: 63.4° to 2.3° (wide-tele)
Aperture F1.3

PTZ
Movement Range (Pan)360°
Movement Range (Tilt)-90° to 40° (auto flip)
Pan Speedpan speed: configurable from 0.1° to 100°/s; preset speed: 100°/s
Tilt Speedtilt speed: configurable from 0.1° to 50°/s, preset speed 100°/s
Proportional Zoomyes
Presets300
Patrol Scan8 patrols
Pattern Scan4 pattern scans
Power-off Memoryyes
Park Actionpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan
3D Positioningyes
PTZ Status Displayyes
Preset Freezingyes
Scheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output

Video
Max. Resolution1920 × 1080
Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video CompressionH.265;H.264;MJPEG
H.264 Typebaseline profile;main profile;high profile
H.265 Typemain profile
H.264+yes
H.265+yes
SVCyes
ROIyes

Audio
Audio CompressionG.722.1;G.711alaw;G.711ulaw;MP2L2;G.726;PCM

Smart Features
Face CaptureSupport detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.
Road TrafficSupport vehicle detection (license plate number,vehicle model, and vehicle color recognition)
Basic Eventmotion detection;video tampering alarm;alarm input;alarm output;exception
Smart Eventintrusion detection;line crossing detection;region entrance detection;region exiting detection;unattended baggage detection;object removal detection;vandal-proof alarm
Smart Trackingmanual tracking;auto-tracking;event tracking
Smart RecordANR;Dual-VCA
Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
APIONVIF (Profile S, Profile G, Profile T); ISAPI;Hikvision SDK
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users. 3 levels: Administrator, Operator and User
Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web BrowserIE 8 to 11, Chrome 31.0+, Firefox 30.0+, Safari 11+

Interface
Communication Interface1 RJ45 10 M/100 M Ethernet Interface
On-board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
Alarm Input7 alarm inputs
Alarm Output2 alarm outputs
Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Audio Output1 audio output, line level, impedance: 600 Ω
Video OutputNTSC;PAL;1.0V[p-p]/75Ω;BNC connector
RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive

General
Power24 VAC. Max. 90 W, including max. 15W for heater
Operating ConditionsTemperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%
WiperYes. Rain-sensing auto control
MaterialAluminum alloy ADC12
Dimensions180×390×491mm(7.09" × 15.35" × 19.33")
WeightApprox. 13 kg (28.66 lb)
Web Client Language32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Approval
ProtectionIP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

Kamera

Image Sensor

1/1.8＂ progressive scan CMOS

Min. Illumination

Color: 0.002 Lux @ (F1.3, AGC ON) B/W: 0.0002 Lux @ ((F1.3, AGC ON)

Shutter Speed

1/1s ~ 1/30,000s

Focus

auto;semi-auto;manual

Day & Night

ICR

BLC

yes

WDR

140 dB WDR

HLC

yes

3D DNR

yes

EIS

Yes. Built-in gyroscope to improve EIS performance.

Regional Exposure

yes

Regional Focus

yes

White Balance

auto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor

Digital Zoom

16x

Optical Zoom

36x

Privacy Mask

up to 24 masks;polygon region ;mosaic mask ;mask color configurable

General Function

mirror, password protection, watermark, IP address filter

Lens

Focal Length

6.0mm to 216mm，36× Optical

Zoom Speed

approx. 4.5 s

FOV

Horizontal field of view: 56.6° to 2.0° (wide-tele), Vertical field of view: 33.7° to 1.2° (wide-tele), Diagonal field of view: 63.4° to 2.3° (wide-tele)

Aperture

F1.3

PTZ

Movement Range (Pan)

360°

Movement Range (Tilt)

-90° to 40° (auto flip)

Pan Speed

pan speed: configurable from 0.1° to 100°/s; preset speed: 100°/s

Tilt Speed

tilt speed: configurable from 0.1° to 50°/s, preset speed 100°/s

Proportional Zoom

yes

Presets

300

Patrol Scan

8 patrols

Pattern Scan

4 pattern scans

Power-off Memory

yes

Park Action

preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan

3D Positioning

yes

PTZ Status Display

yes

Preset Freezing

yes

Scheduled Task

preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output

Video

Max. Resolution

1920 × 1080

Main Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression

H.265;H.264;MJPEG

H.264 Type

baseline profile;main profile;high profile

H.265 Type

main profile

H.264+

yes

H.265+

yes

SVC

yes

ROI

yes

Audio

Audio Compression

G.722.1;G.711alaw;G.711ulaw;MP2L2;G.726;PCM

Smart Features

Face Capture

Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.

Road Traffic

Support vehicle detection (license plate number,vehicle model, and vehicle color recognition)

Basic Event

motion detection;video tampering alarm;alarm input;alarm output;exception

Smart Event

intrusion detection;line crossing detection;region entrance detection;region exiting detection;unattended baggage detection;object removal detection;vandal-proof alarm

Smart Tracking

manual tracking;auto-tracking;event tracking

Smart Record

ANR;Dual-VCA

Alarm Linkage

Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

Network

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

API

ONVIF (Profile S, Profile G, Profile T); ISAPI;Hikvision SDK

Simultaneous Live View

Up to 20 channels

User/Host

Up to 32 users. 3 levels: Administrator, Operator and User

Security Measures

Authenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter

Client

iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect

Web Browser

IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Safari 11+

Interface

Communication Interface

1 RJ45 10 M/100 M Ethernet Interface

On-board Storage

Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR

Alarm Input

7 alarm inputs

Alarm Output

2 alarm outputs

Audio Input

1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%

Audio Output

1 audio output, line level, impedance: 600 Ω

Video Output

NTSC;PAL;1.0V[p-p]/75Ω;BNC connector

RS-485

Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive

General

Power

24 VAC. Max. 90 W, including max. 15W for heater

Operating Conditions

Temperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%

Wiper

Yes. Rain-sensing auto control

Material

Aluminum alloy ADC12

Dimensions

180×390×491mm(7.09" × 15.35" × 19.33")

Weight

Approx. 13 kg (28.66 lb)

Web Client Language

32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Approval

Protection

IP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

Kamera

Image Sensor1/1.8＂ progressive scan CMOS
Min. IlluminationColor: 0.002 Lux @ (F1.3, AGC ON) B/W: 0.0002 Lux @ ((F1.3, AGC ON)
Shutter Speed1/1s ~ 1/30,000s
Focusauto;semi-auto;manual
Day & NightICR
BLCyes
WDR140 dB WDR
HLCyes
3D DNRyes
EISYes. Built-in gyroscope to improve EIS performance.
Regional Exposureyes
Regional Focusyes
White Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor
Digital Zoom16x
Optical Zoom36x
Privacy Maskup to 24 masks;polygon region ;mosaic mask ;mask color configurable
General Functionmirror, password protection, watermark, IP address filter

Lens

Focal Length6.0mm to 216mm，36× Optical
Zoom Speedapprox. 4.5 s
FOVHorizontal field of view: 56.6° to 2.0° (wide-tele), Vertical field of view: 33.7° to 1.2° (wide-tele), Diagonal field of view: 63.4° to 2.3° (wide-tele)
Aperture F1.3

PTZ

Movement Range (Pan)360°
Movement Range (Tilt)-90° to 40° (auto flip)
Pan Speedpan speed: configurable from 0.1° to 100°/s; preset speed: 100°/s
Tilt Speedtilt speed: configurable from 0.1° to 50°/s, preset speed 100°/s
Proportional Zoomyes
Presets300
Patrol Scan8 patrols
Pattern Scan4 pattern scans
Power-off Memoryyes
Park Actionpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan
3D Positioningyes
PTZ Status Displayyes
Preset Freezingyes
Scheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output

Video

Max. Resolution1920 × 1080
Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video CompressionH.265;H.264;MJPEG
H.264 Typebaseline profile;main profile;high profile
H.265 Typemain profile
H.264+yes
H.265+yes
SVCyes
ROIyes

Audio

Audio CompressionG.722.1;G.711alaw;G.711ulaw;MP2L2;G.726;PCM

Smart Features

Face CaptureSupport detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.
Road TrafficSupport vehicle detection (license plate number,vehicle model, and vehicle color recognition)
Basic Eventmotion detection;video tampering alarm;alarm input;alarm output;exception
Smart Eventintrusion detection;line crossing detection;region entrance detection;region exiting detection;unattended baggage detection;object removal detection;vandal-proof alarm
Smart Trackingmanual tracking;auto-tracking;event tracking
Smart RecordANR;Dual-VCA
Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

Network

ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
APIONVIF (Profile S, Profile G, Profile T); ISAPI;Hikvision SDK
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users. 3 levels: Administrator, Operator and User
Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web BrowserIE 8 to 11, Chrome 31.0+, Firefox 30.0+, Safari 11+

Interface

Communication Interface1 RJ45 10 M/100 M Ethernet Interface
On-board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
Alarm Input7 alarm inputs
Alarm Output2 alarm outputs
Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Audio Output1 audio output, line level, impedance: 600 Ω
Video OutputNTSC;PAL;1.0V[p-p]/75Ω;BNC connector
RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive

General

Power24 VAC. Max. 90 W, including max. 15W for heater
Operating ConditionsTemperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%
WiperYes. Rain-sensing auto control
MaterialAluminum alloy ADC12
Dimensions180×390×491mm(7.09" × 15.35" × 19.33")
WeightApprox. 13 kg (28.66 lb)
Web Client Language32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Approval

ProtectionIP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

Technical documents

User Manual

DS-2DY9236X-A(T3)

9-inch 2 MP 36X DarkFighter Network Positioning System

Specification

Kamera

Lens

PTZ

Video

Audio

Smart Features

Network

Interface

General

Approval

Specification

Resources

Technical documents

Accessories

DS-1693ZJ

Wall mount

Get a better browsing experience
