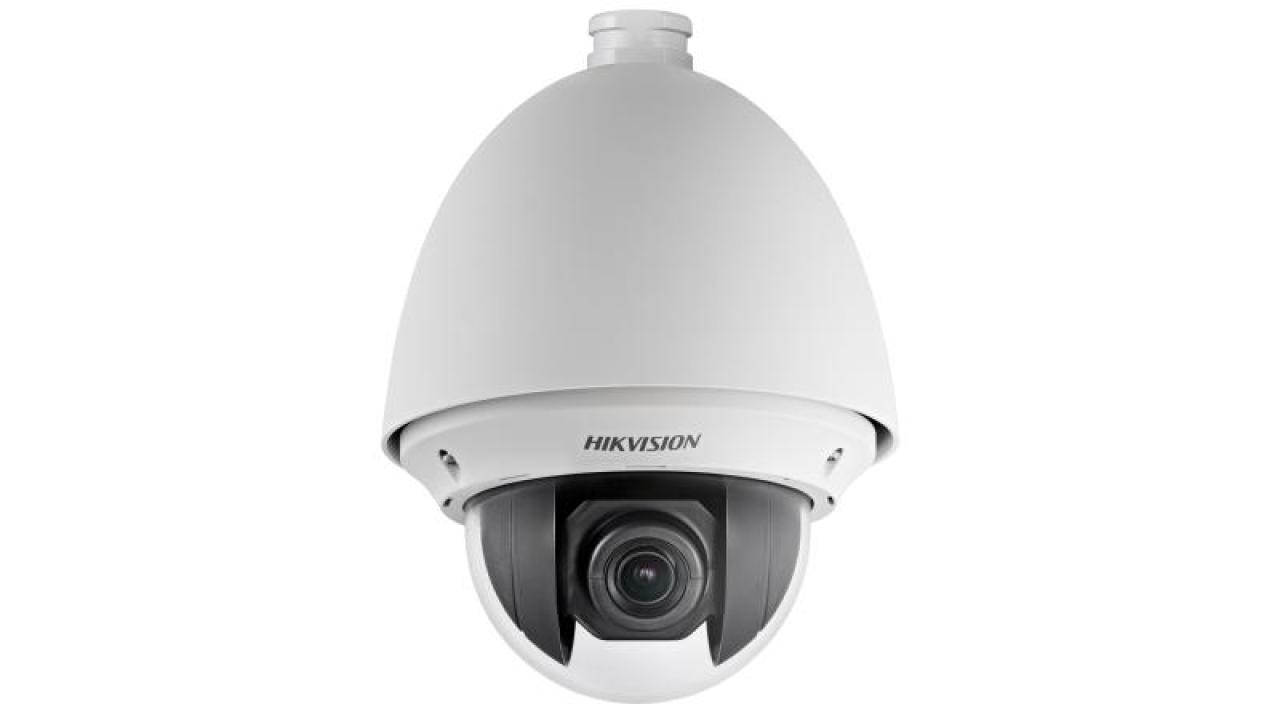

4-inch 4 MP 25X Powered by DarkFighter Network Speed Dome

  • High quality imaging with 4 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Clear imaging against strong back lighting thanks to 120 dB WDR technology
  • Pan and tilt ability enables camera to monitor zones of interest
  • 25x optical zoom allows for closer viewing of subjects in expansive areas
  • Water and dust resistant (IP66)

View Less
View more
Sales Inquiry

Available models:

DS-2DE4425W-DE(S6)
DS-2DE4425W-DE(S6)
EOL

Specification

  • Kamera
  • Image Sensor1/2.8" progressive scan CMOS
  • Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON)
  • Shutter Speed1 s to 1/30,000 s
  • Slow ShutterYes
  • Day & NightIR cut filter
  • Zoom25x optical, 16x digital
  • Max. Resolution2560 × 1440
  • Lens
  • FocusAuto, semi-auto, manual
  • Focal Length4.8 mm to 120 mm
  • Zoom SpeedApprox. 3.6 s
  • FOVHorizontal field of view: 55° to 2.4° (wide-tele), Vertical field of view: 33° to 1.4° (wide-tele), Diagonal field of view: 61.5° to 2.8° (wide-tele)
  • ApertureMax. F1.6
  • PTZ
  • Movement Range (Pan)360°
  • Movement Range (Tilt)0° to 90°
  • Pan SpeedPan speed: configurable from 0.1° to 160°/s; preset speed: 160°/s
  • Tilt SpeedTilt speed: configurable from 0.1° to 120°/s, preset speed 120°/s
  • Proportional PanYes
  • Presets300
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 pattern scans, record time over 10 minutes for each scan
  • Power-off MemoryYes
  • Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
  • 3D PositioningYes
  • PTZ Status DisplayYes
  • Preset FreezingYes
  • Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
  • Video
  • Main Stream50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
  • Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG
  • Video Bit Rate32 kbps to 16384 kbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain profile
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)8 fixed regions for each stream
  • Audio
  • Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
  • Audio Bit RateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps
  • Audio Sampling RateMP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
  • Environment Noise FilteringYes
  • Network
  • Network StorageNAS (NFS, SMB/CIFS)
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
  • APIOpen Network Video Interface, ISAPI, SDK, ISUP
  • Simultaneous Live ViewUp to 20 channels
  • User/HostUp to 32 users; 3 user levels: administrator, operator, and user
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
  • ClientiVMS-4200, HikCentral Pro, Hik-Connect
  • Web BrowserIE10-11, Chrome 57.0+, Firefox 52.0+, Safari 11+
  • Image
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Image EnhancementBLC, HLC, 3D DNR
  • Wide Dynamic Range (WDR)120 dB
  • DefogDigital defog
  • Regional ExposureYes
  • Regional FocusYes
  • Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
  • Image Parameters SwitchYes
  • Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
  • SNR＞52dB
  • Interface
  • Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • On-board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
  • Alarm1 alarm input, 1 alarm output
  • Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
  • SIFIRLAYes
  • Event
  • Basic EventVideo tampering alarm, motion detection, alarm input, alarm output, exception
  • Smart EventFace detection, line crossing detection, region entrance detection, unattended baggage detection, object removal detection, intrusion detection, region exiting detection, audio exception detection
  • Alarm LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
  • General
  • Power12 VDC, 2.0 A, max. 18 W; PoE (802.3 at)
  • Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
  • Material ADC 12, PC+ABS, PC/PMMA
  • DimensionØ 180 mm × 239.5 mm (Ø 7.1" × 9.4")
  • Weight Approx. 2 kg (4.41 lb.)
  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 62368-1) CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005); LOA (IEC/EN 60950-1)
  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • ProtectionIP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
