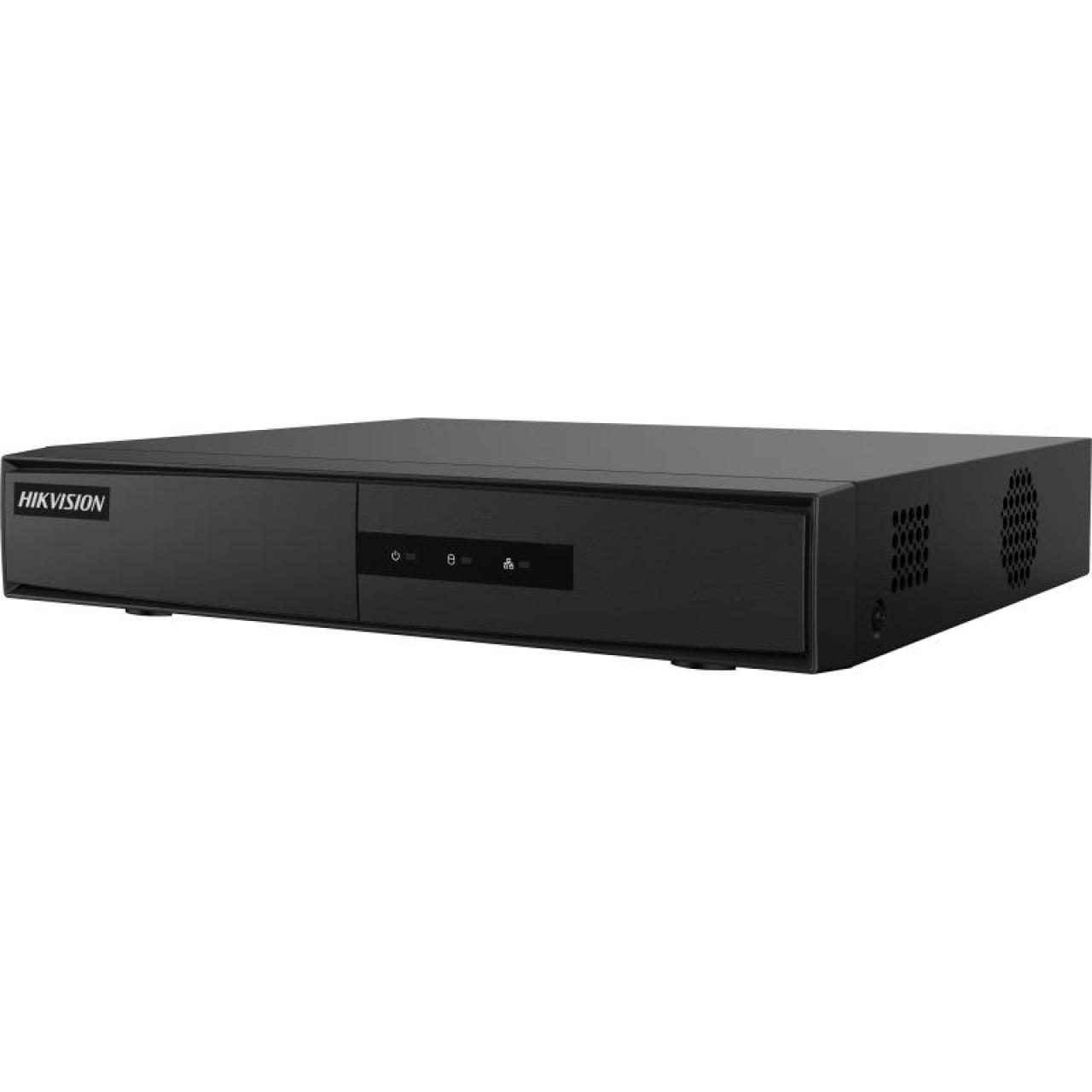

4-ch Mini 1U NVR

  • H.265+/H.265/H.264+/H.264 video compression
  • Up to 40 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
  • Up to 4-ch network camera inputs
  • Up to 4-ch 1080p decoding capability
  • HDMI and VGA simultaneous output

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-7104NI-Q1/M
DS-7104NI-Q1/M(C)
DS-7104NI-Q1/M(D)
DS-7104NI-Q1/M
Data Sheet

Specification

  • Video and Audio
  • IP Video Input4-ch Up to 6 MP resolution
  • Incoming Bandwidth40 Mbps
  • Outgoing Bandwidth60 Mbps
  • HDMI Output1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • VGA Output1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • Video Output ModeHDMI/VGA simultaneous output
  • Decoding
  • Decoding FormatH.265+/H.265/ H.264+/H.264
  • Recording Resolution6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Synchronous playback4-ch
  • Decoding Capability 4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
  • Stream TypeVideo, Video & Audio
  • Network
  • Remote Connection16
  • Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™
  • Network Interface1, RJ-45 10/100Mbps self-adaptive Ethernet interface
  • Auxiliary Interface
  • SATA1 SATA interface
  • CapacityUp to 6TB capacity for each disk
  • Alarm In/OutN/A
  • USB InterfaceRear panel: 2 × USB 2.0
  • General
  • Power Supply12 VDC, 1.5 A
  • Consumption≤ 10 W
  • Working Temperature-10 to +55º C (+14 to +131º F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)265 × 223 × 48 mm (10.4" × 8.8" × 1.9")
  • Weight≤ 1 kg (2.2 lb)
  • Certification
  • CEEN50130-4, EN 61000-3-2,EN 61000-3-3
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Video and Audio
IP Video Input
4-ch Up to 6 MP resolution
Incoming Bandwidth
40 Mbps
Outgoing Bandwidth
60 Mbps
HDMI Output
1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output
1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode
HDMI/VGA simultaneous output
Decoding
Decoding Format
H.265+/H.265/ H.264+/H.264
Recording Resolution
6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous playback
4-ch
Decoding Capability
4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
Stream Type
Video, Video & Audio
Network
Remote Connection
16
Network Protocol
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™
Network Interface
1, RJ-45 10/100Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA
1 SATA interface
Capacity
Up to 6TB capacity for each disk
Alarm In/Out
N/A
USB Interface
Rear panel: 2 × USB 2.0
General
Power Supply
12 VDC, 1.5 A
Consumption
≤ 10 W
Working Temperature
-10 to +55º C (+14 to +131º F)
Working Humidity
10% to 90%
Dimension (W × D × H)
265 × 223 × 48 mm (10.4" × 8.8" × 1.9")
Weight
≤ 1 kg (2.2 lb)
Certification
CE
EN50130-4, EN 61000-3-2,EN 61000-3-3
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Video and Audio
  • IP Video Input4-ch Up to 6 MP resolution
  • Incoming Bandwidth40 Mbps
  • Outgoing Bandwidth60 Mbps
  • HDMI Output1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • VGA Output1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • Video Output ModeHDMI/VGA simultaneous output
Decoding
  • Decoding FormatH.265+/H.265/ H.264+/H.264
  • Recording Resolution6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Synchronous playback4-ch
  • Decoding Capability 4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
  • Stream TypeVideo, Video & Audio
Network
  • Remote Connection16
  • Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™
  • Network Interface1, RJ-45 10/100Mbps self-adaptive Ethernet interface
Auxiliary Interface
  • SATA1 SATA interface
  • CapacityUp to 6TB capacity for each disk
  • Alarm In/OutN/A
  • USB InterfaceRear panel: 2 × USB 2.0
General
  • Power Supply12 VDC, 1.5 A
  • Consumption≤ 10 W
  • Working Temperature-10 to +55º C (+14 to +131º F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)265 × 223 × 48 mm (10.4" × 8.8" × 1.9")
  • Weight≤ 1 kg (2.2 lb)
Certification
  • CEEN50130-4, EN 61000-3-2,EN 61000-3-3
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_Asia_V4.76.106_241118
Firmware_Europe_V4.76.106_241118
V4.76.106 build241118_ReleaseNotes
Applied to:
DS-7104NI-Q1/M(C)
DS-7104NI-Q1/M(D)
