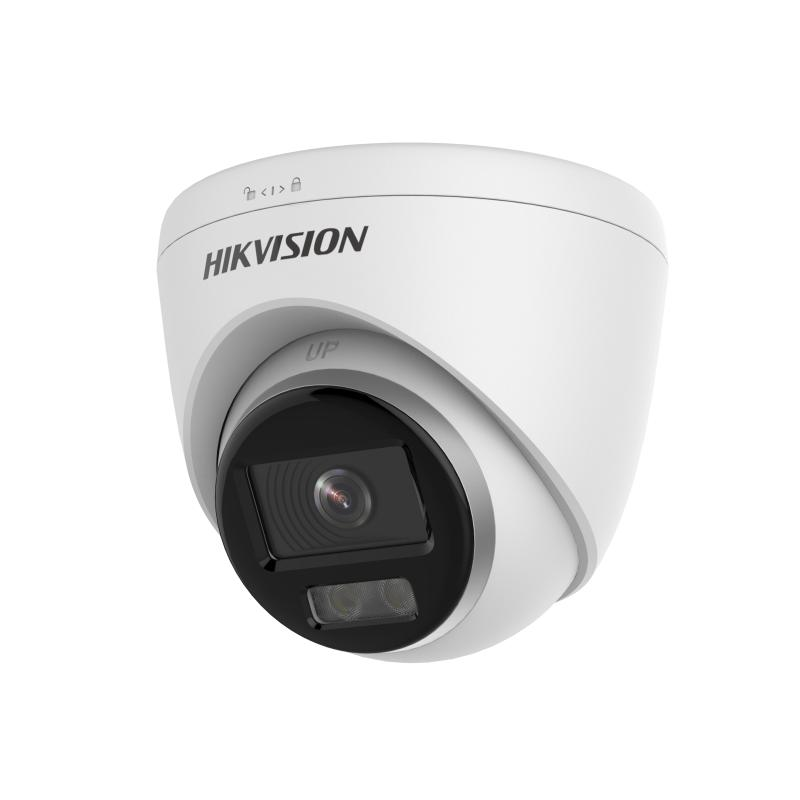

2 MP ColorVu Fixed Turret Network Camera

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance
  • Efficient H.265+ compression technology
  • Water and dust resistant (IP67)
  • 24/7 colorful imaging

View Less
View more
Sales Inquiry

Available models:

DS-2CD1327G0-L(2.8mm)
DS-2CD1327G0-L(4mm)
DS-2CD1327G0-L
EOL

Specification

  • Kamera
  • Image Sensor1/2.8" Progressive Scan CMOS
  • Max. Resolution1920 × 1080
  • Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON)
  • Shutter Time1/3 s to 1/100,000 s
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
  • Lens
  • Focal Length & FOV2.8 mm, horizontal FOV 107°, vertical FOV 56°, diagonal FOV 127° 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 99°
  • Lens MountM12
  • Iris TypeFixed
  • ApertureF1.0
  • Depth of Field2.8 mm: 1.7 m to ∞ 4 mm: 2.1 m to ∞
  • Illuminator
  • Supplement Light TypeWhite
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes
  • Video
  • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseLine Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Region of Interest (ROI)1 fixed region for main stream
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • Simultaneous Live ViewUp to 6 channels
  • APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF
  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web BrowserPlug-in required live view: IE8, IE9, IE10, IE11 Local service: Chrome 57.0+, Firefox 52.0+
  • Image
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Wide Dynamic Range (WDR)Digital WDR
  • SNR≥ 52 dB
  • Image EnhancementBLC, HLC, 3D DNR
  • Interface
  • Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Event
  • Basic Event Motion detection, exception (illegal login)
  • LinkageUpload to FTP, notify surveillance center, send email, trigger recording, trigger capture *Note: External device is required.
  • General
  • Power12 VDC ± 25%, 0.30 A, max. 3.6 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE (802.3af, Type 1 Class 3, 36 V to 57 V), 0.20 A to 0.10 A, max. 4.5W
  • DimensionØ110 × 100.8 mm (4.3" × 4.0")
  • Package Dimension150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
  • WeightApprox. 350 g (0.7 lb.)
  • With Package WeightApprox. 500 g (1.1 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • LanguageEnglish
  • General FunctionAnti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • ProtectionIngression protection: IP67 (IEC 60529-2013)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Kamera
Image Sensor
1/2.8" Progressive Scan CMOS
Max. Resolution
1920 × 1080
Min. Illumination
Color: 0.001 Lux @ (F1.0, AGC ON)
Shutter Time
1/3 s to 1/100,000 s
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Focal Length & FOV
2.8 mm, horizontal FOV 107°, vertical FOV 56°, diagonal FOV 127° 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 99°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.0
Depth of Field
2.8 mm: 1.7 m to ∞ 4 mm: 2.1 m to ∞
Illuminator
Supplement Light Type
White
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
Video
Main Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
BaseLine Profile/Main Profile/High Profile
H.265 Type
Main Profile
Region of Interest (ROI)
1 fixed region for main stream
Network
Protocols
TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS
Simultaneous Live View
Up to 6 channels
API
ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
User/Host
Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter, security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE8, IE9, IE10, IE11 Local service: Chrome 57.0+, Firefox 52.0+
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)
Digital WDR
SNR
≥ 52 dB
Image Enhancement
BLC, HLC, 3D DNR
Interface
Ethernet Interface
1 RJ45 10M/100M self-adaptive Ethernet port
Event
Basic Event
Motion detection, exception (illegal login)
Linkage
Upload to FTP, notify surveillance center, send email, trigger recording, trigger capture *Note: External device is required.
General
Power
12 VDC ± 25%, 0.30 A, max. 3.6 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE (802.3af, Type 1 Class 3, 36 V to 57 V), 0.20 A to 0.10 A, max. 4.5W
Dimension
Ø110 × 100.8 mm (4.3" × 4.0")
Package Dimension
150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
Weight
Approx. 350 g (0.7 lb.)
With Package Weight
Approx. 500 g (1.1 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
English
General Function
Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
Approval
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection
Ingression protection: IP67 (IEC 60529-2013)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Kamera
  • Image Sensor1/2.8" Progressive Scan CMOS
  • Max. Resolution1920 × 1080
  • Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON)
  • Shutter Time1/3 s to 1/100,000 s
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
  • Focal Length & FOV2.8 mm, horizontal FOV 107°, vertical FOV 56°, diagonal FOV 127° 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 99°
  • Lens MountM12
  • Iris TypeFixed
  • ApertureF1.0
  • Depth of Field2.8 mm: 1.7 m to ∞ 4 mm: 2.1 m to ∞
Illuminator
  • Supplement Light TypeWhite
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes
Video
  • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseLine Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Region of Interest (ROI)1 fixed region for main stream
Network
  • ProtocolsTCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • Simultaneous Live ViewUp to 6 channels
  • APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF
  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web BrowserPlug-in required live view: IE8, IE9, IE10, IE11 Local service: Chrome 57.0+, Firefox 52.0+
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Wide Dynamic Range (WDR)Digital WDR
  • SNR≥ 52 dB
  • Image EnhancementBLC, HLC, 3D DNR
Interface
  • Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
Event
  • Basic Event Motion detection, exception (illegal login)
  • LinkageUpload to FTP, notify surveillance center, send email, trigger recording, trigger capture *Note: External device is required.
General
  • Power12 VDC ± 25%, 0.30 A, max. 3.6 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE (802.3af, Type 1 Class 3, 36 V to 57 V), 0.20 A to 0.10 A, max. 4.5W
  • DimensionØ110 × 100.8 mm (4.3" × 4.0")
  • Package Dimension150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
  • WeightApprox. 350 g (0.7 lb.)
  • With Package WeightApprox. 500 g (1.1 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • LanguageEnglish
  • General FunctionAnti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
Approval
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • ProtectionIngression protection: IP67 (IEC 60529-2013)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.5.800_210816
Applied to:
DS-2CD1327G0-L(2.8mm)
DS-2CD1327G0-L(4mm)
