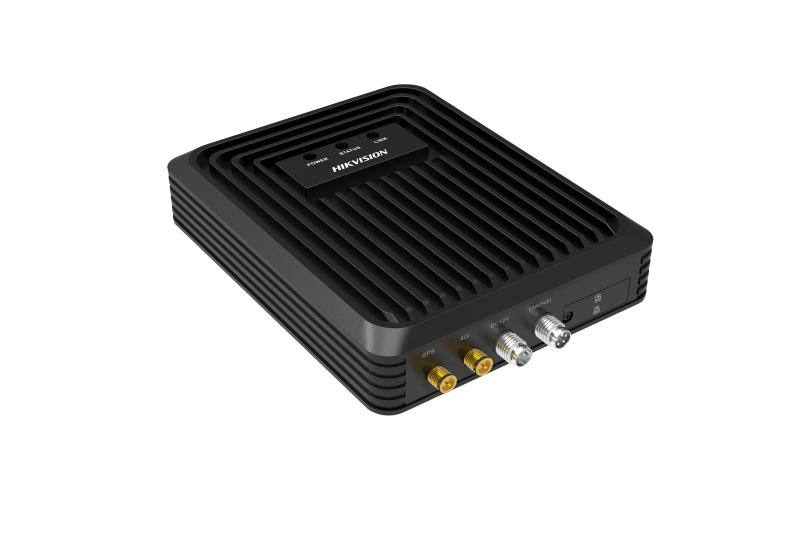

Mobile DeepinView Separated Network Camera

  • High quality imaging with 2 MP resolution
  • Face capture by deep-learning technology
  • Audio and alarm interface available
  • Built-in Micro SD / SDHC / SDXC card slot, up to 128GB
  • 6 behavior analyses, 3 exception detection, and face detection

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-2XM6425G0/F-C2M/ND
DS-2XM6425G0/F-L80(2mm)2m
DS-2XM6425G0/F-L80(2mm)8m
DS-2XM6425G0/F-L80(2.8mm)8m
DS-2XM6425G0/F-L80(4mm)8m
DS-2XM6425G0/F-L80(6mm)8m
DS-2XM6425G0/F-L80(8mm)8m
DS-2XM6425G0/F-L90(2mm)2m
DS-2XM6425G0/F-L90(2mm)8m
DS-2XM6425G0/F-L90(2.8mm)8m
DS-2XM6425G0/F-L90(2.8mm)2m
DS-2XM6425G0/F-M31/ND(2.8mm)8m
DS-2XM6425G0/F-IM81/ND(2mm)8m
DS-2XM6425G0/F-M31(2mm)8m
DS-2XM6425G0/F-M31(2.8mm)8m
DS-2XM6425G0/F-IM81(2mm)8m
DS-2XM6425G0/F-L80(2.8mm)STD/Uni(unpack)
DS-2XM6425G0/F-M31(4mm)8m
DS-2XM6425G0/F-IM81(2.8mm)8m
DS-2XM6425G0/F-IM81(4mm)8m
DS-2XM6425G0/F-IM81/ND(2.8mm)8m
DS-2XM6425G0/F-M31(2mm)2m
DS-2XM6425G0/F-M31(2.8mm)2m
DS-2XM6425G0/F-M31(4mm)2m
DS-2XM6425G0/F-IM81(2mm)2m
DS-2XM6425G0/F-IM81(4mm)2m
DS-2XM6425G0/F-IM91(2mm)8m
DS-2XM6425G0/F-IM91/ND(2mm)8m
DS-2XM6425G0/F-IM91(4mm)8m
DS-2XM6425G0/F-IM91(2mm)2m
DS-2XM6425G0/F-IM91(2.8mm)2m
DS-2XM6425G0/F-IM91(4mm)2m
DS-2XM6425G0/F-M31(2.8mm)8m(HIK ITALY)
DS-2XM6425G0/F-M31(2.8mm)8m(UAE)
DS-2XM6425G0/F-L80(2mm)STD/Uni(unpack)
DS-2XM6425G0/F-L80(4mm)STD/Uni(unpack)
DS-2XM6425G0/F-L90(2.8mm)STD/Uni(unpack)
DS-2XM6425G0/F-L90(2mm)STD/Uni(unpack)
DS-2XM6425G0/F-L90(4mm)STD/Uni(unpack)
DS-2XM6425G0/F-XX
Data Sheet

Specification

  • Kamera
  • Image Sensor1/2.8" Progressive Scan CMOS
  • Max. Resolution1920 × 1080
  • Min. IlluminationColor: 0.001 Lux @ (F1.2, AGC ON), 0.002 Lux @ (F1.6, AGC ON) B/W: 0.0007 Lux@(F1.2, AGC ON), 0.001 Lux@(F1.6, AGC ON), 0 Lux with IR
  • Shutter TimeChannel 1: 1/25 s to 1/100,000 s Channel 2: 1 s to 1/100,000 s
  • Day & NightIR Cut Filter
  • Angle AdjustmentL80 IR Dome Lens: pan: -30 to 30, tilt: 0° to 75° (2 mm 0° to 60°), rotate: -180° to 180° L90 IR Turret Lens: tilt: 0° to 75°, rotate: -180° to 180°
  • Lens
  • Focal Length & FOVL32/L90: 2 mm/2.8 mm/4 mm 2 mm @ F2.0: horizontal FOV 132.8°, vertical FOV 77.5°, diagonal FOV 153° 2.8 mm @ F1.6: horizontal FOV 110.5°, vertical FOV 60°, diagonal FOV 130° 4 mm @ F1.6: horizontal FOV 86°, vertical FOV 45°, diagonal FOV 102° L80: 2 mm/2.8 mm/4 mm/6 mm/8 mm 2 mm @ F2.0: horizontal FOV 132.8°, vertical FOV 77.5°, diagonal FOV 153° 2.8 mm @ F1.6: horizontal FOV 110.5°, vertical FOV 60°, diagonal FOV 130° 4 mm @ F1.6: horizontal FOV 86°, vertical FOV 45°, diagonal FOV 102° 6 mm @ F1.6: horizontal FOV 52.7°, vertical FOV 30.3°, diagonal FOV 60.3° 8 mm @ F1.6: horizontal FOV 40.5°, vertical FOV 22.4°, diagonal FOV 46.8°
  • Lens MountM12, pin hole
  • ApertureF1.6, F2.0
  • Video
  • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Region of Interest (ROI)Channel 1: 4 fixed regions for each stream Channel 2: No
  • Audio
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • Simultaneous Live ViewUp to 20 channels
  • APIONVIF (PROFILE S, PROFILE G), CGI, ISAPI
  • User/HostUp to 32 users,3 levels: Administrator, Operator and User
  • ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
  • Web BrowserIE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
  • Image
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm in
  • Wide Dynamic Range (WDR)120 dB
  • Image EnhancementBLC, HLC, 3D DNR, Defog, EIS
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • Interface
  • Ethernet Interface1 10M/100M Ethernet port, built-in RS232
  • On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB
  • Audio1 input (line in), 1 output (line out), mono sound
  • Alarm 2 inputs, 2 outputs (up to 12 VDC, 30mA)
  • RS-485Yes
  • Reset KeyYes
  • Event
  • Basic Event Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • Smart EventChannel 1: Scene change detection, defocus detection, audio exception detection, face detection, line crossing detection, intrusion detection, region entrance, region exiting, unattended baggage, object removal Channel 2: No
  • Deep Learning Function
  • Face CaptureChannel 1: Yes Channel 2: No
  • General
  • Power24 VDC, 0.7 A, max. 15 W, 8 VDC to 36 VDC, two-core aviation plug, aviation plug adapter cable to 3.5 mm power M8 PoE: 802.3at, 42.5 V to 57 V, 0.4 A to 0.3 A, max. 16 W
  • DimensionMain body: 135 × 107.8 ×30.4 mm (5.3" × 4.3" × 1.2")
  • WeightMain body: approx. 450 g (1 lb.) if-you-use-RJ45-cable, NVR-cannot-supply-power-through-POE
  • With Package WeightWith package: approx. 920 g (2 lb.) if-you-use-RJ45-cable, NVR-cannot-supply-power-through-POE
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 5% to 95% or less (non-condensing)
  • General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • WiperCamera: Plastic,Lens: Metal
  • Approval
  • ProtectionL80: IP66, IK10 L32: IP66 (2 mm: No)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Kamera
Image Sensor
1/2.8" Progressive Scan CMOS
Max. Resolution
1920 × 1080
Min. Illumination
Color: 0.001 Lux @ (F1.2, AGC ON), 0.002 Lux @ (F1.6, AGC ON) B/W: 0.0007 Lux@(F1.2, AGC ON), 0.001 Lux@(F1.6, AGC ON), 0 Lux with IR
Shutter Time
Channel 1: 1/25 s to 1/100,000 s Channel 2: 1 s to 1/100,000 s
Day & Night
IR Cut Filter
Angle Adjustment
L80 IR Dome Lens: pan: -30 to 30, tilt: 0° to 75° (2 mm 0° to 60°), rotate: -180° to 180° L90 IR Turret Lens: tilt: 0° to 75°, rotate: -180° to 180°
Lens
Focal Length & FOV
L32/L90: 2 mm/2.8 mm/4 mm 2 mm @ F2.0: horizontal FOV 132.8°, vertical FOV 77.5°, diagonal FOV 153° 2.8 mm @ F1.6: horizontal FOV 110.5°, vertical FOV 60°, diagonal FOV 130° 4 mm @ F1.6: horizontal FOV 86°, vertical FOV 45°, diagonal FOV 102° L80: 2 mm/2.8 mm/4 mm/6 mm/8 mm 2 mm @ F2.0: horizontal FOV 132.8°, vertical FOV 77.5°, diagonal FOV 153° 2.8 mm @ F1.6: horizontal FOV 110.5°, vertical FOV 60°, diagonal FOV 130° 4 mm @ F1.6: horizontal FOV 86°, vertical FOV 45°, diagonal FOV 102° 6 mm @ F1.6: horizontal FOV 52.7°, vertical FOV 30.3°, diagonal FOV 60.3° 8 mm @ F1.6: horizontal FOV 40.5°, vertical FOV 22.4°, diagonal FOV 46.8°
Lens Mount
M12, pin hole
Aperture
F1.6, F2.0
Video
Main Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Region of Interest (ROI)
Channel 1: 4 fixed regions for each stream Channel 2: No
Audio
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Simultaneous Live View
Up to 20 channels
API
ONVIF (PROFILE S, PROFILE G), CGI, ISAPI
User/Host
Up to 32 users,3 levels: Administrator, Operator and User
Client
iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser
IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch
Day/Night/Auto/Schedule/Triggered by Alarm in
Wide Dynamic Range (WDR)
120 dB
Image Enhancement
BLC, HLC, 3D DNR, Defog, EIS
Picture Overlay
LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Interface
Ethernet Interface
1 10M/100M Ethernet port, built-in RS232
On-Board Storage
Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Audio
1 input (line in), 1 output (line out), mono sound
Alarm
2 inputs, 2 outputs (up to 12 VDC, 30mA)
RS-485
Yes
Reset Key
Yes
Event
Basic Event
Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Smart Event
Channel 1: Scene change detection, defocus detection, audio exception detection, face detection, line crossing detection, intrusion detection, region entrance, region exiting, unattended baggage, object removal Channel 2: No
Deep Learning Function
Face Capture
Channel 1: Yes Channel 2: No
General
Power
24 VDC, 0.7 A, max. 15 W, 8 VDC to 36 VDC, two-core aviation plug, aviation plug adapter cable to 3.5 mm power M8 PoE: 802.3at, 42.5 V to 57 V, 0.4 A to 0.3 A, max. 16 W
Dimension
Main body: 135 × 107.8 ×30.4 mm (5.3" × 4.3" × 1.2")
Weight
Main body: approx. 450 g (1 lb.) if-you-use-RJ45-cable, NVR-cannot-supply-power-through-POE
With Package Weight
With package: approx. 920 g (2 lb.) if-you-use-RJ45-cable, NVR-cannot-supply-power-through-POE
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F), humidity 5% to 95% or less (non-condensing)
General Function
One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Wiper
Camera: Plastic,Lens: Metal
Approval
Protection
L80: IP66, IK10 L32: IP66 (2 mm: No)
