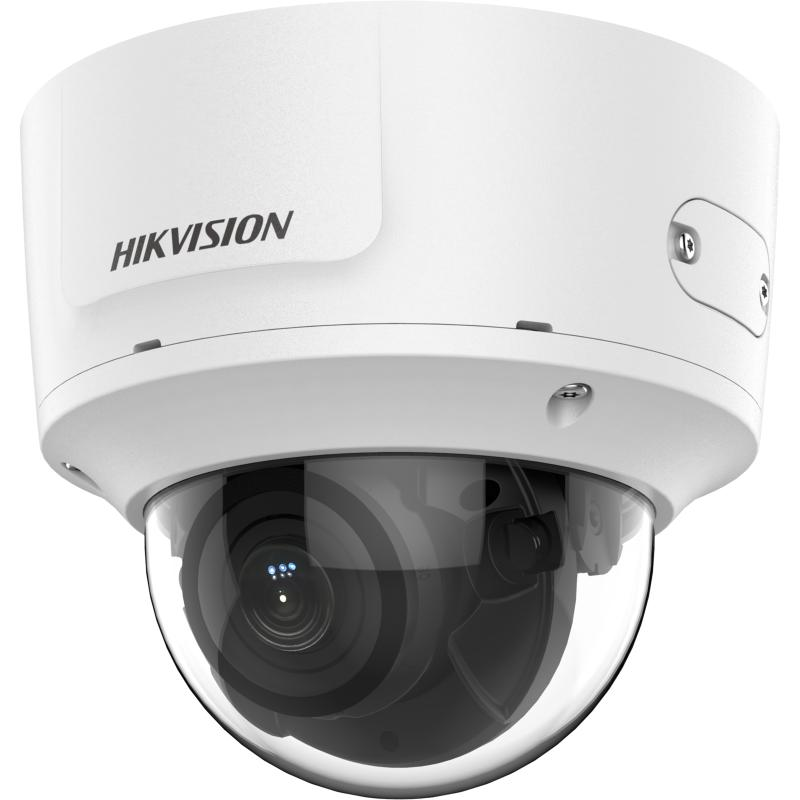

4K Powered by DarkFighter Varifocal Dome Network Camera

  • High quality imaging with 8 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Water and dust resistant (IP66) and vandal proof (IK10)
  • Motorized vari-focal lens for easy installation and monitoring
  • Robust structure design with full metal materials
View Less
View more

Specification

  • Kamera
  • Image Sensor1/2" Progressive Scan CMOS
  • Min. IlluminationColor: 0.008 Lux @ (F1.2, AGC ON), 0.011 Lux @ (F1.4, AGC ON)
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Day &NightIR Cut Filter
  • Wide Dynamic Range120dB
  • Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
  • DNR3D DNR
  • Lens
  • LensMotorized, 2.8 to 12 mm
  • ApertureF1.4
  • FocusAuto
  • FOVHorizontal field of view: 112° to 46°,Vertical field of view: 60° to 26°,Diagonal field of view: 133° to 53°
  • Lens MountΦ14
  • Illuminator
  • IR RangeUp to 30 m
  • Wavelength850 nm
  • Video
  • Max. Resolution3840 × 2160
  • Main Stream50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 20 fps (3840 × 2160), 30 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
  • Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
  • Video CompressionMain stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
  • H.264 TypeMain Profile/High Profile
  • H.265 TypeMain Profile
  • Video Bit Rate32 Kbps to 16 Mbps
  • Audio
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Smart Feature-Set
  • Behavior AnalysisLine crossing detection, intrusion detection, unattended baggage detection, object removal detection
  • Region of InterestSupport 1 fixed region for main stream and sub stream separately
  • Exception DetectionScene change detection
  • Face DetectionYes
  • Image
  • Image EnhancementBLC/3D DNR
  • Image SettingRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
  • Network
  • Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • APIONVIF (PROFILE S, PROFILE G), ISAPI
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users,3 levels: Administrator, Operator and User
  • ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
  • Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view: Chrome 45.0+, Firefox 52.0+
  • Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • Interface
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Audio1 input (line in, 3.5 mm), 1 output(3.5 mm), mono sound
  • Alarm1 input, 1 output (max. 12 VDC, 30 mA)
  • Video Output1Vp-p composite output (75 Ω) (For adjustment only)
  • On-board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB
  • Approval
  • Impact ProtectionIK10
  • Compression Standard
  • H.264+Main stream supports
  • H.265+Main stream supports
  • General
  • Firmware VersionV5.5.80
  • General FunctionOne-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • SIFIRLAYes
  • Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 25%,PoE (802.3af, class 3)
  • Power Consumption and Current12 VDC, 0.9A, max. 10.5W,PoE: (802.3af, 36V to 57V), 0.4A to 0.2A, max. 12.5W
  • MaterialFront cover: metal, bottom base: metal, bubble: plastic
  • DimensionsCamera: Φ 153.4 × 133.1 mm (Φ 6" × 5.2")
  • WeightCamera: 1300 g (2.9 lb.),With package: 1500 g (3.3 lb.)
  • Interface ProtectionIP66

Specification

Specification
Kamera
  • Image Sensor1/2" Progressive Scan CMOS
  • Min. IlluminationColor: 0.008 Lux @ (F1.2, AGC ON), 0.011 Lux @ (F1.4, AGC ON)
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Day &NightIR Cut Filter
  • Wide Dynamic Range120dB
  • Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
  • DNR3D DNR
Lens
  • LensMotorized, 2.8 to 12 mm
  • ApertureF1.4
  • FocusAuto
  • FOVHorizontal field of view: 112° to 46°,Vertical field of view: 60° to 26°,Diagonal field of view: 133° to 53°
  • Lens MountΦ14
Illuminator
  • IR RangeUp to 30 m
  • Wavelength850 nm
Video
  • Max. Resolution3840 × 2160
  • Main Stream50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 20 fps (3840 × 2160), 30 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
  • Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
  • Video CompressionMain stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
  • H.264 TypeMain Profile/High Profile
  • H.265 TypeMain Profile
  • Video Bit Rate32 Kbps to 16 Mbps
Audio
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Smart Feature-Set
  • Behavior AnalysisLine crossing detection, intrusion detection, unattended baggage detection, object removal detection
  • Region of InterestSupport 1 fixed region for main stream and sub stream separately
  • Exception DetectionScene change detection
  • Face DetectionYes
  • Image EnhancementBLC/3D DNR
  • Image SettingRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
Network
  • Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • APIONVIF (PROFILE S, PROFILE G), ISAPI
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users,3 levels: Administrator, Operator and User
  • ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
  • Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view: Chrome 45.0+, Firefox 52.0+
  • Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Interface
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Audio1 input (line in, 3.5 mm), 1 output(3.5 mm), mono sound
  • Alarm1 input, 1 output (max. 12 VDC, 30 mA)
  • Video Output1Vp-p composite output (75 Ω) (For adjustment only)
  • On-board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB
Approval
  • Impact ProtectionIK10
Compression Standard
  • H.264+Main stream supports
  • H.265+Main stream supports
General
  • Firmware VersionV5.5.80
  • General FunctionOne-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • SIFIRLAYes
  • Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 25%,PoE (802.3af, class 3)
  • Power Consumption and Current12 VDC, 0.9A, max. 10.5W,PoE: (802.3af, 36V to 57V), 0.4A to 0.2A, max. 12.5W
  • MaterialFront cover: metal, bottom base: metal, bubble: plastic
  • DimensionsCamera: Φ 153.4 × 133.1 mm (Φ 6" × 5.2")
  • WeightCamera: 1300 g (2.9 lb.),With package: 1500 g (3.3 lb.)
  • Interface ProtectionIP66
