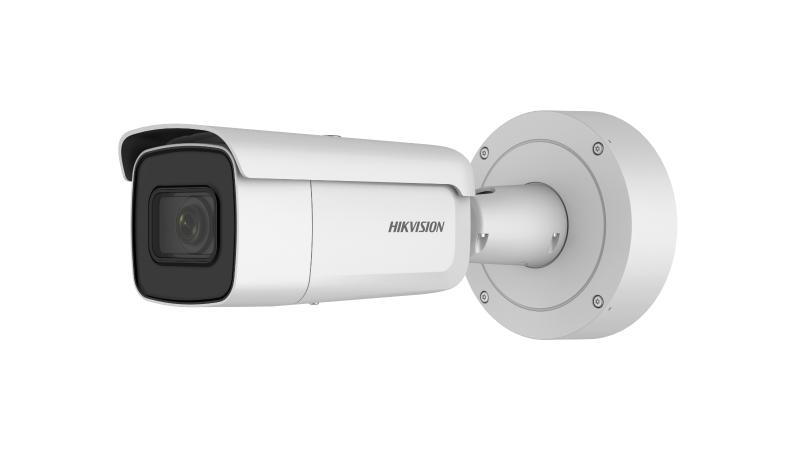

4K Powered by DarkFighter Varifocal Bullet Network Camera

  • High quality imaging with 8 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Water and dust resistant (IP66) and vandal proof (IK10)
  • Motorized vari-focal lens for easy installation and monitoring
  • Robust structure design with full metal materials
View Less
View more
Sales Inquiry

Specification

  • Kamera
  • Image Sensor1/2" Progressive Scan CMOS
  • Min. IlluminationColor: 0.008 Lux @ (F1.2, AGC ON), 0.011 Lux @ (F1.4, AGC ON)
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Day &NightIR Cut Filter
  • Wide Dynamic Range120dB
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
  • DNR3D DNR
  • Lens
  • Lens2.8 to 12 mm;Motorized
  • ApertureF1.4
  • FocusAuto
  • FOVHorizontal field of view: 112° to 46°,Vertical field of view: 60° to 26°,Diagonal field of view: 133° to 53°
  • Lens MountΦ14
  • Illuminator
  • IR RangeUp to 50 m
  • Wavelength850nm
  • Video
  • Max. Resolution3840 × 2160
  • Main Stream50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 20 fps (3840 × 2160), 30 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
  • Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
  • Video CompressionMain stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
  • H.264 TypeMain Profile/High Profile
  • H.265 TypeMain Profile
  • Video Bit Rate32 Kbps to 16 Mbps
  • Audio
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Smart Feature-Set
  • Behavior AnalysisLine crossing detection, intrusion detection, unattended baggage detection, object removal detection
  • Region of InterestSupport 1 fixed region for main stream and sub stream separately
  • Exception DetectionScene change detection
  • Face DetectionYes
  • Image
  • Image EnhancementBLC/3D DNR/HLC
  • Image SettingRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
  • Network
  • Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • APIONVIF (PROFILE S, PROFILE G), ISAPI
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users,3 levels: Administrator, Operator and User
  • ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
  • Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view: Chrome 45.0+, Firefox 52.0+
  • Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • Interface
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Audio1 input (line in, 3.5 mm), 1 output (3.5 mm), mono sound
  • Alarm1 input, 1 output (max. 12 VDC, 30 mA), terminal block
  • Video Output1Vp-p composite output (75 Ω) (For adjustment only)
  • On-board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB
  • Approval
  • Impact ProtectionIK10
  • Compression Standard
  • H.264+Main stream supports
  • H.265+Main stream supports
  • General
  • Firmware VersionV5.5.80
  • General FunctionOne-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • SIFIRLAYes
  • Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 25%,PoE (802.3at, class 4)
  • Power Consumption and Current12 VDC, 1.2A, max. 14.5W,PoE: (802.3at, 42.5V to 57V), 0.5A to 0.3A, max. 18W
  • MaterialFront cover: metal, back cover: metal
  • DimensionsCamera: Φ144 × 332.7 mm (Φ5.7"× 13.1")
  • WeightCamera: 1400 g (3.1 lb.),With package: 2500 g (5.5 lb.)
  • Interface ProtectionIP66
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Kamera
Image Sensor
1/2" Progressive Scan CMOS
Min. Illumination
Color: 0.008 Lux @ (F1.2, AGC ON), 0.011 Lux @ (F1.4, AGC ON)
Shutter Speed
1/3 s to 1/100,000 s
Slow Shutter
Yes
Day &Night
IR Cut Filter
Wide Dynamic Range
120dB
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
DNR
3D DNR
Lens
Lens
2.8 to 12 mm;Motorized
Aperture
F1.4
Focus
Auto
FOV
Horizontal field of view: 112° to 46°,Vertical field of view: 60° to 26°,Diagonal field of view: 133° to 53°
Lens Mount
Φ14
Illuminator
IR Range
Up to 50 m
Wavelength
850nm
Video
Max. Resolution
3840 × 2160
Main Stream
50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 20 fps (3840 × 2160), 30 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream
50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Video Compression
Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
H.264 Type
Main Profile/High Profile
H.265 Type
Main Profile
Video Bit Rate
32 Kbps to 16 Mbps
Audio
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)
Environment Noise Filtering
Yes
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Smart Feature-Set
Behavior Analysis
Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
Region of Interest
Support 1 fixed region for main stream and sub stream separately
Exception Detection
Scene change detection
Face Detection
Yes
Image Enhancement
BLC/3D DNR/HLC
Image Setting
Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Day/Night Switch
Day/Night/Auto/Schedule/Triggered by Alarm In
Network
Network Storage
Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
API
ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View
Up to 6 channels
User/Host
Up to 32 users,3 levels: Administrator, Operator and User
Client
iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser
Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Interface
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port
Audio
1 input (line in, 3.5 mm), 1 output (3.5 mm), mono sound
Alarm
1 input, 1 output (max. 12 VDC, 30 mA), terminal block
Video Output
1Vp-p composite output (75 Ω) (For adjustment only)
On-board Storage
Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Approval
Impact Protection
IK10
Compression Standard
H.264+
Main stream supports
H.265+
Main stream supports
General
Firmware Version
V5.5.80
General Function
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
SIFIRLA
Yes
Startup and Operating Conditions
-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%,PoE (802.3at, class 4)
Power Consumption and Current
12 VDC, 1.2A, max. 14.5W,PoE: (802.3at, 42.5V to 57V), 0.5A to 0.3A, max. 18W
Material
Front cover: metal, back cover: metal
Dimensions
Camera: Φ144 × 332.7 mm (Φ5.7"× 13.1")
Weight
Camera: 1400 g (3.1 lb.),With package: 2500 g (5.5 lb.)
Interface Protection
IP66
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Kamera
  • Image Sensor1/2" Progressive Scan CMOS
  • Min. IlluminationColor: 0.008 Lux @ (F1.2, AGC ON), 0.011 Lux @ (F1.4, AGC ON)
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Day &NightIR Cut Filter
  • Wide Dynamic Range120dB
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
  • DNR3D DNR
Lens
  • Lens2.8 to 12 mm;Motorized
  • ApertureF1.4
  • FocusAuto
  • FOVHorizontal field of view: 112° to 46°,Vertical field of view: 60° to 26°,Diagonal field of view: 133° to 53°
  • Lens MountΦ14
Illuminator
  • IR RangeUp to 50 m
  • Wavelength850nm
Video
  • Max. Resolution3840 × 2160
  • Main Stream50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 20 fps (3840 × 2160), 30 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
  • Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
  • Video CompressionMain stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
  • H.264 TypeMain Profile/High Profile
  • H.265 TypeMain Profile
  • Video Bit Rate32 Kbps to 16 Mbps
Audio
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Smart Feature-Set
  • Behavior AnalysisLine crossing detection, intrusion detection, unattended baggage detection, object removal detection
  • Region of InterestSupport 1 fixed region for main stream and sub stream separately
  • Exception DetectionScene change detection
  • Face DetectionYes
  • Image EnhancementBLC/3D DNR/HLC
  • Image SettingRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
Network
  • Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • APIONVIF (PROFILE S, PROFILE G), ISAPI
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users,3 levels: Administrator, Operator and User
  • ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
  • Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view: Chrome 45.0+, Firefox 52.0+
  • Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Interface
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Audio1 input (line in, 3.5 mm), 1 output (3.5 mm), mono sound
  • Alarm1 input, 1 output (max. 12 VDC, 30 mA), terminal block
  • Video Output1Vp-p composite output (75 Ω) (For adjustment only)
  • On-board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB
Approval
  • Impact ProtectionIK10
Compression Standard
  • H.264+Main stream supports
  • H.265+Main stream supports
General
  • Firmware VersionV5.5.80
  • General FunctionOne-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • SIFIRLAYes
  • Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 25%,PoE (802.3at, class 4)
  • Power Consumption and Current12 VDC, 1.2A, max. 14.5W,PoE: (802.3at, 42.5V to 57V), 0.5A to 0.3A, max. 18W
  • MaterialFront cover: metal, back cover: metal
  • DimensionsCamera: Φ144 × 332.7 mm (Φ5.7"× 13.1")
  • WeightCamera: 1400 g (3.1 lb.),With package: 2500 g (5.5 lb.)
  • Interface ProtectionIP66
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
