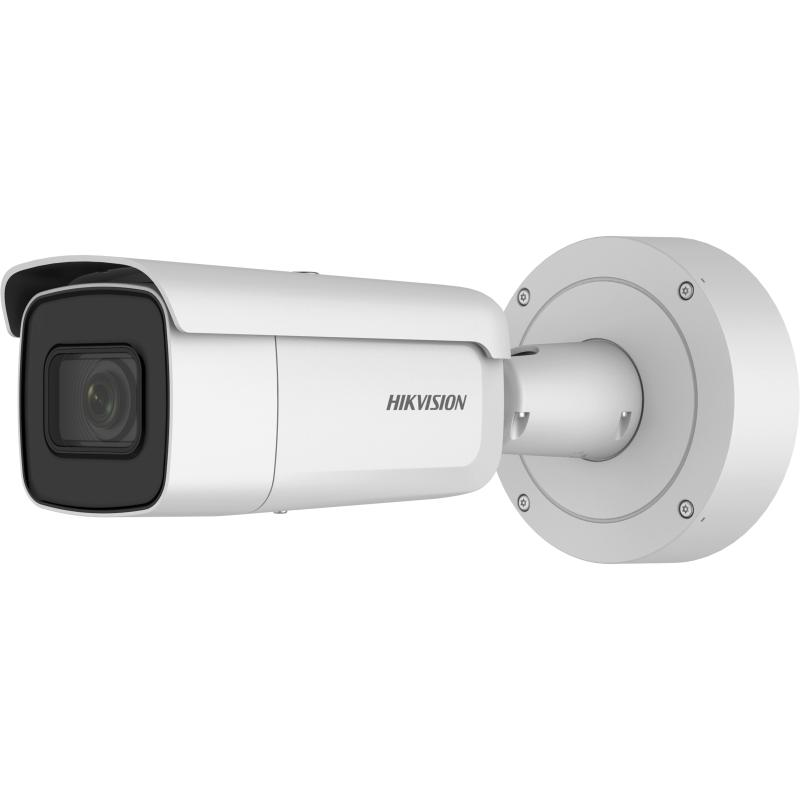

2MP Powered by DarkFighter Varifocal Bullet Network Camera

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Water and dust resistant (IP66) and vandal proof (IK10)
  • Motorized varifocal lens for easy installation and monitoring
  • Robust structure design with full metal materials.
View Less
View more
DS-2CD2625FWD-IZSEOL
DS-2CD2625FWD-IZS (Black)EOL
Sales Inquiry

Available models:

DS-2CD2625FWD-IZS(2.8-12mm)

Available models:

DS-2CD2625FWD-IZS(2.8-12mm)
NEI-B2625

Specification

  • Kamera
  • Image Sensor 1/2.8" Progressive Scan CMOS
  • Min. Illumination Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR,Color: 0.0068 Lux @ (F1.4, AGC ON), 0 Lux with IR
  • Shutter Speed 1/3 s to 1/100,000 s
  • Slow Shutter Yes
  • Wide Dynamic Range 120 dB
  • Day & Night IR Cut Filter
  • Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
  • Lens
  • Focus Auto
  • Lens Type 2.8 to 12 mm;Motorized
  • FOV Horizontal field of view: 105° to 35°,Vertical field of view: 56° to 20°,Diagonal field of view: 126° to 40.5°
  • Aperture F1.4
  • Lens Mount Φ14
  • Illuminator
  • IR Range Up to 50 m
  • Wavelength 850nm
  • Video
  • Max. Resolution 1920 × 1080
  • Main Stream 50Hz: 50fps (1920 × 1080, 1280 × 960, 1280×720),60Hz: 60fps (1920 × 1080, 1280 × 960, 1280×720)
  • Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream 50Hz: 25fps (1920 × 1080, 1280×720, 640 × 360, 352 × 288),60Hz: 30fps (1920 × 1080, 1280×720, 640 × 360, 352 × 240)
  • Video Compression Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
  • Video Bit Rate 32 Kbps to 16 Mbps
  • H.264 Type Main Profile/High Profile
  • H.265 Type Main Profile
  • H.264+ Main stream supports
  • H.265+ Main stream supports
  • Scalable Video Coding (SVC) H.264 and H.265 encoding
  • Region of Interest (ROI) Support 1 fixed region for main stream and sub stream
  • Audio
  • Environment Noise Filtering Yes
  • Audio Sampling Rate 8kHz/16kHz/32kHz/44.1kHz/48kHz
  • Audio Compression G722.1/G.711/G726/MP2L2/PCM
  • Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
  • Network
  • Simultaneous Live View Up to 6 channels
  • API ONVIF (PROFILE S, PROFILE G), ISAPI
  • Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
  • User/Host Up to 32 users,3 levels: Administrator, Operator and User
  • Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
  • Web Browser Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view: Chrome 45.0+, Firefox 52.0+
  • Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error, Alarm input, Alarm output
  • Image
  • Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In
  • DNR 3D DNR
  • Image Enhancement BLC/3D DNR/HLC
  • Image Settings Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
  • Interface
  • Audio 1 input (line in, 3.5 mm), 1 output (3.5 mm), mono sound
  • Alarm 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
  • Video Output 1Vp-p composite output (75 Ω) (For adjustment only)
  • On-board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
  • Hardware Reset Yes
  • Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
  • Event
  • Smart Event Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
  • Face Detection Yes
  • Exception Detection Scene change detection
  • General
  • Firmware Version V5.5.80
  • General Function One-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter
  • Startup and Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
  • Power Supply 12 VDC ± 25%, PoE (802.3at),Terminal block for DC input
  • Power Consumption and Current 12 VDC, 1.2A, max. 14.5W; PoE (802.3at, 42.5V to 57V), 0.5A to 0.1A, max. 16.5W
  • Camera Dimension Φ144.13×332.73 mm (Φ5.67"× 13.10")
  • Camera Weight Camera: Approx. 1890 g (4.17 lb.)
  • Approval
  • Protection IP66，IK10
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Kamera
Image Sensor
1/2.8" Progressive Scan CMOS
Min. Illumination
Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR,Color: 0.0068 Lux @ (F1.4, AGC ON), 0 Lux with IR
Shutter Speed
1/3 s to 1/100,000 s
Slow Shutter
Yes
Wide Dynamic Range
120 dB
Day & Night
IR Cut Filter
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Focus
Auto
Lens Type
2.8 to 12 mm;Motorized
FOV
Horizontal field of view: 105° to 35°,Vertical field of view: 56° to 20°,Diagonal field of view: 126° to 40.5°
Aperture
F1.4
Lens Mount
Φ14
Illuminator
IR Range
Up to 50 m
Wavelength
850nm
Video
Max. Resolution
1920 × 1080
Main Stream
50Hz: 50fps (1920 × 1080, 1280 × 960, 1280×720),60Hz: 60fps (1920 × 1080, 1280 × 960, 1280×720)
Sub Stream
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream
50Hz: 25fps (1920 × 1080, 1280×720, 640 × 360, 352 × 288),60Hz: 30fps (1920 × 1080, 1280×720, 640 × 360, 352 × 240)
Video Compression
Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Main Profile/High Profile
H.265 Type
Main Profile
H.264+
Main stream supports
H.265+
Main stream supports
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
Support 1 fixed region for main stream and sub stream
Audio
Environment Noise Filtering
Yes
Audio Sampling Rate
8kHz/16kHz/32kHz/44.1kHz/48kHz
Audio Compression
G722.1/G.711/G726/MP2L2/PCM
Audio Bit Rate
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Network
Simultaneous Live View
Up to 6 channels
API
ONVIF (PROFILE S, PROFILE G), ISAPI
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
User/Host
Up to 32 users,3 levels: Administrator, Operator and User
Network Storage
Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Client
iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser
Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error, Alarm input, Alarm output
Day/Night Switch
Day/Night/Auto/Schedule/Triggered by Alarm In
DNR
3D DNR
Image Enhancement
BLC/3D DNR/HLC
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Interface
Audio
1 input (line in, 3.5 mm), 1 output (3.5 mm), mono sound
Alarm
1 input, 1 output (max. 12 VDC, 30 mA), terminal block
Video Output
1Vp-p composite output (75 Ω) (For adjustment only)
On-board Storage
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Hardware Reset
Yes
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port
Event
Smart Event
Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
Face Detection
Yes
Exception Detection
Scene change detection
General
Firmware Version
V5.5.80
General Function
One-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter
Startup and Operating Conditions
-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, PoE (802.3at),Terminal block for DC input
Power Consumption and Current
12 VDC, 1.2A, max. 14.5W; PoE (802.3at, 42.5V to 57V), 0.5A to 0.1A, max. 16.5W
Camera Dimension
Φ144.13×332.73 mm (Φ5.67"× 13.10")
Camera Weight
Camera: Approx. 1890 g (4.17 lb.)
Approval
Protection
IP66，IK10
