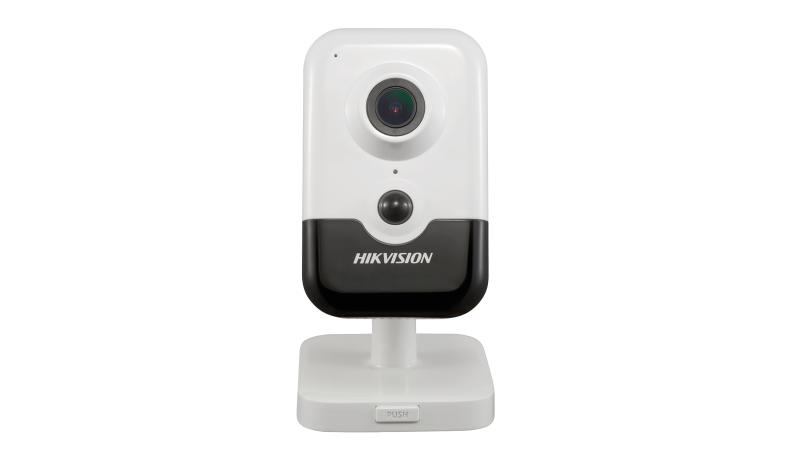

5 MP Cube Network Camera

  • High quality imaging with 5 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Provides real-time security through built-in two-way audio
  • Detects human body through passive infrared sensitive to body temperature (PIR)
  • -W: Wi-Fi connection

View Less
View more
DS-2CD2455FWD-IEOL
DS-2CD2455FWD-IWEOL
Sales Inquiry

Available models:

DS-2CD2455FWD-I(2.8mm)

Available models:

DS-2CD2455FWD-IW(2.8mm)
DS-2CD2455FWD-I(W)

Specification

  • Kamera
  • Image Sensor 1/2.9" Progressive Scan CMOS
  • Max. Resolution 2944 × 1656
  • Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR
  • Shutter Time 1/3 s to 1/100,000 s
  • Day & Night IR cut filter
  • Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
  • Lens
  • Focus F2.0
  • Focal Length & FOV 2.8 mm, horizontal FOV 97°, vertical FOV 54°, diagonal FOV 113°
  • Aperture F1.6
  • Lens Mount M12
  • Illuminator
  • Supplement Light Type IR
  • Supplement Light Range Up to 10 m
  • IR Wavelength 850 nm
  • Video
  • Main Stream 50 Hz: 20 fps (2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2944 × 1656), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
  • Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream 50 Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288) 60 Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)
  • Video Compression Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
  • Video Bit Rate 32 Kbps to 16 Mbps
  • H.264 Type Main Profile/High Profile
  • H.265 Type Main Profile
  • Scalable Video Coding (SVC) H.264 and H.265 encoding
  • Region of Interest (ROI) 1 fixed region for main stream and sub-stream separately
  • Audio
  • Audio Type Mono sound
  • Environment Noise Filtering Yes
  • Audio Sampling Rate 8 kHz/16 kHz
  • Audio Compression G722.1/G711/G726/MP2L2/PCM
  • Audio Bit Rate 64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to 160 Kbps(MP2L2)
  • Network
  • Simultaneous Live View Up to 6 channels
  • API ONVIF (PROFILE S, PROFILE G), ISAPI
  • Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • User/Host Up to 32 users. 3 levels: administrator, operator and user
  • Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
  • Network Storage Local storage, NAS (NFS,SMB/CIFS), ANR
  • Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
  • Web Browser Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+
  • Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login
  • Wi-Fi
  • Encryption Mode -W: WPA, WPA2
  • Wi-Fi Protocol -W: IEEE 802.11b/g/n
  • Frequency Range -W: 2.412 GHz - 2.4835 GHz
  • Channel Bandwidth -W: 20/40 MHz
  • Transfer Rate -W: 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
  • Wireless Range -W: Up to 50 m (The performance varies based on actual environment)
  • Image
  • Wide Dynamic Range (WDR) 120 dB
  • Day/Night Switch Day, Night, Auto, Schedule
  • Image Enhancement BLC, HLC, 3D DNR
  • Image Settings Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
  • Transducer
  • PIR Angle Horizontal: 90°, vertical: 80°
  • PIR Range Up to 10 m
  • Interface
  • Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
  • Built-in Microphone Yes
  • Built-in Speaker Yes
  • On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 128 GB
  • Reset Key Yes
  • Event
  • Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart Event Line crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection
  • Linkage Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
  • General
  • Power 12 VDC ± 20%, 0.47 A, max. 7 W PoE: 802.3af, class 3, 36 V to 57 V, 0.2 A to 0.1 A, max. 7 W
  • Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • General Function Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
  • Startup and Operating Conditions -10 °C to +40 °C (14 °F to +104 °F), humidity 95% or less (non-condensing)
  • Material Plastic
  • Dimension 102.8 mm × 65.2 mm × 32.6 mm (4.05" × 2.57" × 1.28")
  • Weight Approx. 128 g (0.28 lb.)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Kamera
Image Sensor
1/2.9" Progressive Scan CMOS
Max. Resolution
2944 × 1656
Min. Illumination
Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Focus
F2.0
Focal Length & FOV
2.8 mm, horizontal FOV 97°, vertical FOV 54°, diagonal FOV 113°
Aperture
F1.6
Lens Mount
M12
Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 10 m
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 20 fps (2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2944 × 1656), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
Third Stream
50 Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288) 60 Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)
Video Compression
Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Main Profile/High Profile
H.265 Type
Main Profile
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
1 fixed region for main stream and sub-stream separately
Audio
Audio Type
Mono sound
Environment Noise Filtering
Yes
Audio Sampling Rate
8 kHz/16 kHz
Audio Compression
G722.1/G711/G726/MP2L2/PCM
Audio Bit Rate
64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to 160 Kbps(MP2L2)
Network
Simultaneous Live View
Up to 6 channels
API
ONVIF (PROFILE S, PROFILE G), ISAPI
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
User/Host
Up to 32 users. 3 levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Network Storage
Local storage, NAS (NFS,SMB/CIFS), ANR
Client
iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser
Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login
Wi-Fi
Encryption Mode
-W: WPA, WPA2
Wi-Fi Protocol
-W: IEEE 802.11b/g/n
Frequency Range
-W: 2.412 GHz - 2.4835 GHz
Channel Bandwidth
-W: 20/40 MHz
Transfer Rate
-W: 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
Wireless Range
-W: Up to 50 m (The performance varies based on actual environment)
Wide Dynamic Range (WDR)
120 dB
Day/Night Switch
Day, Night, Auto, Schedule
Image Enhancement
BLC, HLC, 3D DNR
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Transducer
PIR Angle
Horizontal: 90°, vertical: 80°
PIR Range
Up to 10 m
Interface
Ethernet Interface
1 RJ45 10M/100M self-adaptive Ethernet port
Built-in Microphone
Yes
Built-in Speaker
Yes
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 128 GB
Reset Key
Yes
Event
Basic Event
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event
Line crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection
Linkage
Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
General
Power
12 VDC ± 20%, 0.47 A, max. 7 W PoE: 802.3af, class 3, 36 V to 57 V, 0.2 A to 0.1 A, max. 7 W
Language
32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function
Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
Startup and Operating Conditions
-10 °C to +40 °C (14 °F to +104 °F), humidity 95% or less (non-condensing)
Material
Plastic
Dimension
102.8 mm × 65.2 mm × 32.6 mm (4.05" × 2.57" × 1.28")
Weight
Approx. 128 g (0.28 lb.)
