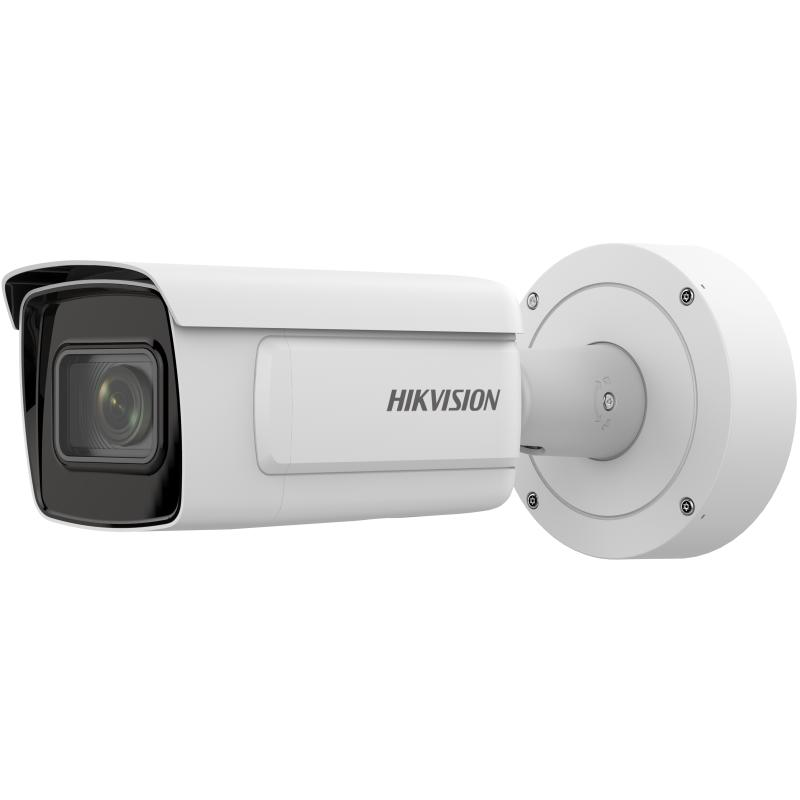

DeepinView Face Recognition Indoor Moto Varifocal Bullet Network Camera

  • High quality imaging with 4 MP resolution
  • Motorized varifocal lens for easy installation and monitoring
  • Clear imaging against strong back light due to 140 dB WDR technology
  • Efficient H.265+ compression technology
  • Water and dust resistant (IP67) and vandal proof (IK10)
  • 3D DNR technology delivers clean and sharp images

View Less
View more
Sales Inquiry

Available models:

iDS-2CD8A46G0-IZHS(8-32mm)
iDS-2CD8A46G0-IZHS
EOL

Specification

  • Kamera
  • Image Sensor1/1.8ʺ Progressive Scan CMOS
  • Min. IlluminationColor: 0.0045 Lux @ (F1.8, AGC ON), 0 Lux with IR
  • Shutter Speed1 s to 1/100,000 s
  • Slow ShutterYes
  • Wide Dynamic Range140dB
  • Day & NightICR Cut
  • Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
  • Lens
  • FocusAuto, semi-auto, manual
  • Lens Type & FOVMotorized lens, 8 to 32 mm Horizontal FOV 38° to 15°, vertical FOV 21° to 9°, diagonal FOV 43° to 18°
  • ApertureF1.8 to F2.0
  • Lens MountIntegrated
  • Blue Glass ModuleYes
  • Illuminator
  • IR RangeUp to 100 m
  • Wavelength850 nm
  • Video
  • Max. Resolution2560 × 1440
  • Main Stream50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
  • Sub Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Fourth Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
  • Fifth Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream/Fourth Stream/Fifth Stream: H.265/H.264/MJPEG Third stream: H.265/H.264
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • H.264+Main stream supports
  • H.265+Main stream supports
  • Stream Type5 defined streams
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)4 fixed regions and dynamic face tracking for each stream
  • Audio
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)
  • Network
  • Simultaneous Live ViewUp to 20 channels
  • APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, TLS 1.2
  • Network StoragemicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR ; Together with ordinary memory card, memory card encryption is supported; Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web BrowserPlug-in required live view: IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11 Plug-in free live view: Chrome45.0+, Firefox52.0+
  • Image
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format.
  • Image EnhancementBLC, HLC, Defog, EIS, Lens Distortion, 3D DNR
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, white balance adjustable by client software or web browser.
  • SNR≥52dB
  • Interface
  • Alarm 2 inputs, 2 outputs (max. 24 VDC, 1 A)
  • Audio1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm)
  • RS-4851 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • On-board StorageBuilt-in microSD/SDHC/SDXC slot, up to 256 GB
  • Communication Interface1 RJ45 10M/100M/1000M Ethernet port
  • Power Output12 VDC, max. 200 mA
  • Video Out1Vp-p composite output (75 Ω/CVBS), only for adjustment
  • Event
  • Smart EventIntrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Scene change detection, audio exception detection, defocus detection
  • Deep Learning Function
  • Face CaptureFace detection performance: detects up to 30 faces at the same time. Face position: supports swing left and right from -60° to 60°, tilt up and down from -30°to 30°. Uploads face with background and closed-up face pictures.
  • Face RecognitionDetects, captures and selects best human face pictures; Recognizes face identity via face modeling, grading and comparing to those in face library; Up to 10 face libraries and each library is configurable, each library is up to 30000 faces, up to 90000 faces in total; Face library encryption: the camera chip has a hardware encryption module to protect data.
  • Intelligent (Traditional Algorithm)
  • Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error, video quality diagnosis)
  • Face DetectionNo
  • General
  • Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email, HTTPS Trigger notification: HTTP, ISAPI, alarm output, Email, HTTPS
  • Online UpgradeYes
  • Dual BackupNo
  • Firmware Version5.5.86
  • Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • General FunctionPassword protection, privacy mask, anti-flicker, heart, mirror, pixel counter
  • Software ResetYes
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
  • Power Supply12 VDC ±20%, reverse polarity protection; three-core terminal block; PoE (802.3at, type 2, class 4)
  • Power Consumption and CurrentWith extra load: 12 VDC, 1.42A, max. 17.0 W; PoE (802.3at, 42.5 V to 57 V), 0.45 A to 0.33 A, max. 19.2 W Without extra load: 12 VDC, 1.22 A, max. 14.6 W; PoE (802.3at, 42.5 V to 57 V), 0.40 A to 0.29 A, max. 16.8 W "with extra load" means that an extra device is connected to and powered by the camera.
  • Power InterfaceThree-core terminal block
  • MaterialMetal
  • Camera DimensionCamera: Φ144 × 347 mm (Φ5.7″ × 13.7″)
  • Package DimensionWith package: 405×190×180 mm (15.9″ × 7.5″ × 7.1″)
  • Camera WeightCamera: approx. 1940 g (4.3 lb.)
  • With Package WeightWith Package: approx. 3050 g (6.7 lb.)
  • Approval
  • ClassClass B
  • ProtectionIngress protection: IK10 (IEC 62262:2002), IP67(IEC 60529-2013)
  • EMCFCC ID (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)2006
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Kamera
Image Sensor
1/1.8ʺ Progressive Scan CMOS
Min. Illumination
Color: 0.0045 Lux @ (F1.8, AGC ON), 0 Lux with IR
Shutter Speed
1 s to 1/100,000 s
Slow Shutter
Yes
Wide Dynamic Range
140dB
Day & Night
ICR Cut
Angle Adjustment
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
Focus
Auto, semi-auto, manual
Lens Type & FOV
Motorized lens, 8 to 32 mm Horizontal FOV 38° to 15°, vertical FOV 21° to 9°, diagonal FOV 43° to 18°
Aperture
F1.8 to F2.0
Lens Mount
Integrated
Blue Glass Module
Yes
Illuminator
IR Range
Up to 100 m
Wavelength
850 nm
Video
Max. Resolution
2560 × 1440
Main Stream
50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream
50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
Third Stream
50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream
50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
Fifth Stream
50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264 Sub-stream/Fourth Stream/Fifth Stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
H.264+
Main stream supports
H.265+
Main stream supports
Stream Type
5 defined streams
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
4 fixed regions and dynamic face tracking for each stream
Audio
Environment Noise Filtering
Yes
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/48 kHz
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)
Network
Simultaneous Live View
Up to 20 channels
API
Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
User/Host
Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, TLS 1.2
Network Storage
microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR ; Together with ordinary memory card, memory card encryption is supported; Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11 Plug-in free live view: Chrome45.0+, Firefox52.0+
Day/Night Switch
Day/Night/Auto/Schedule/Triggered by Alarm In
Picture Overlay
LOGO picture can be overlaid on video with 128 × 128 24bit bmp format.
Image Enhancement
BLC, HLC, Defog, EIS, Lens Distortion, 3D DNR
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, white balance adjustable by client software or web browser.
SNR
≥52dB
Interface
Alarm
2 inputs, 2 outputs (max. 24 VDC, 1 A)
Audio
1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm)
RS-485
1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
On-board Storage
Built-in microSD/SDHC/SDXC slot, up to 256 GB
Communication Interface
1 RJ45 10M/100M/1000M Ethernet port
Power Output
12 VDC, max. 200 mA
Video Out
1Vp-p composite output (75 Ω/CVBS), only for adjustment
Event
Smart Event
Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Scene change detection, audio exception detection, defocus detection
Deep Learning Function
Face Capture
Face detection performance: detects up to 30 faces at the same time. Face position: supports swing left and right from -60° to 60°, tilt up and down from -30°to 30°. Uploads face with background and closed-up face pictures.
Face Recognition
Detects, captures and selects best human face pictures; Recognizes face identity via face modeling, grading and comparing to those in face library; Up to 10 face libraries and each library is configurable, each library is up to 30000 faces, up to 90000 faces in total; Face library encryption: the camera chip has a hardware encryption module to protect data.
Intelligent (Traditional Algorithm)
Basic Event
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error, video quality diagnosis)
Face Detection
No
General
Linkage Method
Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email, HTTPS Trigger notification: HTTP, ISAPI, alarm output, Email, HTTPS
Online Upgrade
Yes
Dual Backup
No
Firmware Version
5.5.86
Web Client Language
32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function
Password protection, privacy mask, anti-flicker, heart, mirror, pixel counter
Software Reset
Yes
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Power Supply
12 VDC ±20%, reverse polarity protection; three-core terminal block; PoE (802.3at, type 2, class 4)
Power Consumption and Current
With extra load: 12 VDC, 1.42A, max. 17.0 W; PoE (802.3at, 42.5 V to 57 V), 0.45 A to 0.33 A, max. 19.2 W Without extra load: 12 VDC, 1.22 A, max. 14.6 W; PoE (802.3at, 42.5 V to 57 V), 0.40 A to 0.29 A, max. 16.8 W "with extra load" means that an extra device is connected to and powered by the camera.
Power Interface
Three-core terminal block
Material
Metal
Camera Dimension
Camera: Φ144 × 347 mm (Φ5.7″ × 13.7″)
Package Dimension
With package: 405×190×180 mm (15.9″ × 7.5″ × 7.1″)
Camera Weight
Camera: approx. 1940 g (4.3 lb.)
With Package Weight
With Package: approx. 3050 g (6.7 lb.)
Approval
Class
Class B
Protection
Ingress protection: IK10 (IEC 62262:2002), IP67(IEC 60529-2013)
EMC
FCC ID (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)2006
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Kamera
  • Image Sensor1/1.8ʺ Progressive Scan CMOS
  • Min. IlluminationColor: 0.0045 Lux @ (F1.8, AGC ON), 0 Lux with IR
  • Shutter Speed1 s to 1/100,000 s
  • Slow ShutterYes
  • Wide Dynamic Range140dB
  • Day & NightICR Cut
  • Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
  • FocusAuto, semi-auto, manual
  • Lens Type & FOVMotorized lens, 8 to 32 mm Horizontal FOV 38° to 15°, vertical FOV 21° to 9°, diagonal FOV 43° to 18°
  • ApertureF1.8 to F2.0
  • Lens MountIntegrated
  • Blue Glass ModuleYes
Illuminator
  • IR RangeUp to 100 m
  • Wavelength850 nm
Video
  • Max. Resolution2560 × 1440
  • Main Stream50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
  • Sub Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Fourth Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
  • Fifth Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream/Fourth Stream/Fifth Stream: H.265/H.264/MJPEG Third stream: H.265/H.264
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • H.264+Main stream supports
  • H.265+Main stream supports
  • Stream Type5 defined streams
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)4 fixed regions and dynamic face tracking for each stream
Audio
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)
Network
  • Simultaneous Live ViewUp to 20 channels
  • APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, TLS 1.2
  • Network StoragemicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR ; Together with ordinary memory card, memory card encryption is supported; Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web BrowserPlug-in required live view: IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11 Plug-in free live view: Chrome45.0+, Firefox52.0+
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format.
  • Image EnhancementBLC, HLC, Defog, EIS, Lens Distortion, 3D DNR
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, white balance adjustable by client software or web browser.
  • SNR≥52dB
Interface
  • Alarm 2 inputs, 2 outputs (max. 24 VDC, 1 A)
  • Audio1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm)
  • RS-4851 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • On-board StorageBuilt-in microSD/SDHC/SDXC slot, up to 256 GB
  • Communication Interface1 RJ45 10M/100M/1000M Ethernet port
  • Power Output12 VDC, max. 200 mA
  • Video Out1Vp-p composite output (75 Ω/CVBS), only for adjustment
Event
  • Smart EventIntrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Scene change detection, audio exception detection, defocus detection
Deep Learning Function
  • Face CaptureFace detection performance: detects up to 30 faces at the same time. Face position: supports swing left and right from -60° to 60°, tilt up and down from -30°to 30°. Uploads face with background and closed-up face pictures.
  • Face RecognitionDetects, captures and selects best human face pictures; Recognizes face identity via face modeling, grading and comparing to those in face library; Up to 10 face libraries and each library is configurable, each library is up to 30000 faces, up to 90000 faces in total; Face library encryption: the camera chip has a hardware encryption module to protect data.
Intelligent (Traditional Algorithm)
  • Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error, video quality diagnosis)
  • Face DetectionNo
General
  • Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email, HTTPS Trigger notification: HTTP, ISAPI, alarm output, Email, HTTPS
  • Online UpgradeYes
  • Dual BackupNo
  • Firmware Version5.5.86
  • Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • General FunctionPassword protection, privacy mask, anti-flicker, heart, mirror, pixel counter
  • Software ResetYes
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
  • Power Supply12 VDC ±20%, reverse polarity protection; three-core terminal block; PoE (802.3at, type 2, class 4)
  • Power Consumption and CurrentWith extra load: 12 VDC, 1.42A, max. 17.0 W; PoE (802.3at, 42.5 V to 57 V), 0.45 A to 0.33 A, max. 19.2 W Without extra load: 12 VDC, 1.22 A, max. 14.6 W; PoE (802.3at, 42.5 V to 57 V), 0.40 A to 0.29 A, max. 16.8 W "with extra load" means that an extra device is connected to and powered by the camera.
  • Power InterfaceThree-core terminal block
  • MaterialMetal
  • Camera DimensionCamera: Φ144 × 347 mm (Φ5.7″ × 13.7″)
  • Package DimensionWith package: 405×190×180 mm (15.9″ × 7.5″ × 7.1″)
  • Camera WeightCamera: approx. 1940 g (4.3 lb.)
  • With Package WeightWith Package: approx. 3050 g (6.7 lb.)
Approval
  • ClassClass B
  • ProtectionIngress protection: IK10 (IEC 62262:2002), IP67(IEC 60529-2013)
  • EMCFCC ID (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)2006
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

iDS-2CD8A46G0-IZHS
EOL

Specification

  • Kamera
  • Image Sensor1/1.8ʺ Progressive Scan CMOS
  • Min. IlluminationColor: 0.0045 Lux @ (F1.8, AGC ON), 0 Lux with IR
  • Shutter Speed1 s to 1/100,000 s
  • Slow ShutterYes
  • Wide Dynamic Range140dB
  • Day & NightICR Cut
  • Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
  • Lens
  • FocusAuto, semi-auto, manual
  • Lens Type & FOVMotorized lens, 8 to 32 mm Horizontal FOV 38° to 15°, vertical FOV 21° to 9°, diagonal FOV 43° to 18°
  • ApertureF1.8 to F2.0
  • Lens MountIntegrated
  • Blue Glass ModuleYes
  • Illuminator
  • IR RangeUp to 100 m
  • Wavelength850 nm
  • Video
  • Max. Resolution2560 × 1440
  • Main Stream50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
  • Sub Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Fourth Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
  • Fifth Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream/Fourth Stream/Fifth Stream: H.265/H.264/MJPEG Third stream: H.265/H.264
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • H.264+Main stream supports
  • H.265+Main stream supports
  • Stream Type5 defined streams
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)4 fixed regions and dynamic face tracking for each stream
  • Audio
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)
  • Network
  • Simultaneous Live ViewUp to 20 channels
  • APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, TLS 1.2
  • Network StoragemicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR ; Together with ordinary memory card, memory card encryption is supported; Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web BrowserPlug-in required live view: IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11 Plug-in free live view: Chrome45.0+, Firefox52.0+
  • Image
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format.
  • Image EnhancementBLC, HLC, Defog, EIS, Lens Distortion, 3D DNR
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, white balance adjustable by client software or web browser.
  • SNR≥52dB
  • Interface
  • Alarm 2 inputs, 2 outputs (max. 24 VDC, 1 A)
  • Audio1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm)
  • RS-4851 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • On-board StorageBuilt-in microSD/SDHC/SDXC slot, up to 256 GB
  • Communication Interface1 RJ45 10M/100M/1000M Ethernet port
  • Power Output12 VDC, max. 200 mA
  • Video Out1Vp-p composite output (75 Ω/CVBS), only for adjustment
  • Event
  • Smart EventIntrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Scene change detection, audio exception detection, defocus detection
  • Deep Learning Function
  • Face CaptureFace detection performance: detects up to 30 faces at the same time. Face position: supports swing left and right from -60° to 60°, tilt up and down from -30°to 30°. Uploads face with background and closed-up face pictures.
  • Face RecognitionDetects, captures and selects best human face pictures; Recognizes face identity via face modeling, grading and comparing to those in face library; Up to 10 face libraries and each library is configurable, each library is up to 30000 faces, up to 90000 faces in total; Face library encryption: the camera chip has a hardware encryption module to protect data.
  • Intelligent (Traditional Algorithm)
  • Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error, video quality diagnosis)
  • Face DetectionNo
  • General
  • Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email, HTTPS Trigger notification: HTTP, ISAPI, alarm output, Email, HTTPS
  • Online UpgradeYes
  • Dual BackupNo
  • Firmware Version5.5.86
  • Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • General FunctionPassword protection, privacy mask, anti-flicker, heart, mirror, pixel counter
  • Software ResetYes
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
  • Power Supply12 VDC ±20%, reverse polarity protection; three-core terminal block; PoE (802.3at, type 2, class 4)
  • Power Consumption and CurrentWith extra load: 12 VDC, 1.42A, max. 17.0 W; PoE (802.3at, 42.5 V to 57 V), 0.45 A to 0.33 A, max. 19.2 W Without extra load: 12 VDC, 1.22 A, max. 14.6 W; PoE (802.3at, 42.5 V to 57 V), 0.40 A to 0.29 A, max. 16.8 W "with extra load" means that an extra device is connected to and powered by the camera.
  • Power InterfaceThree-core terminal block
  • MaterialMetal
  • Camera DimensionCamera: Φ144 × 347 mm (Φ5.7″ × 13.7″)
  • Package DimensionWith package: 405×190×180 mm (15.9″ × 7.5″ × 7.1″)
  • Camera WeightCamera: approx. 1940 g (4.3 lb.)
  • With Package WeightWith Package: approx. 3050 g (6.7 lb.)
  • Approval
  • ClassClass B
  • ProtectionIngress protection: IK10 (IEC 62262:2002), IP67(IEC 60529-2013)
  • EMCFCC ID (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)2006
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Kamera
Image Sensor
1/1.8ʺ Progressive Scan CMOS
Min. Illumination
Color: 0.0045 Lux @ (F1.8, AGC ON), 0 Lux with IR
Shutter Speed
1 s to 1/100,000 s
Slow Shutter
Yes
Wide Dynamic Range
140dB
Day & Night
ICR Cut
Angle Adjustment
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
Focus
Auto, semi-auto, manual
Lens Type & FOV
Motorized lens, 8 to 32 mm Horizontal FOV 38° to 15°, vertical FOV 21° to 9°, diagonal FOV 43° to 18°
Aperture
F1.8 to F2.0
Lens Mount
Integrated
Blue Glass Module
Yes
Illuminator
IR Range
Up to 100 m
Wavelength
850 nm
Video
Max. Resolution
2560 × 1440
Main Stream
50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream
50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
Third Stream
50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream
50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
Fifth Stream
50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264 Sub-stream/Fourth Stream/Fifth Stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
H.264+
Main stream supports
H.265+
Main stream supports
Stream Type
5 defined streams
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
4 fixed regions and dynamic face tracking for each stream
Audio
Environment Noise Filtering
Yes
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/48 kHz
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)
Network
Simultaneous Live View
Up to 20 channels
API
Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
User/Host
Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, TLS 1.2
Network Storage
microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR ; Together with ordinary memory card, memory card encryption is supported; Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11 Plug-in free live view: Chrome45.0+, Firefox52.0+
Day/Night Switch
Day/Night/Auto/Schedule/Triggered by Alarm In
Picture Overlay
LOGO picture can be overlaid on video with 128 × 128 24bit bmp format.
Image Enhancement
BLC, HLC, Defog, EIS, Lens Distortion, 3D DNR
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, white balance adjustable by client software or web browser.
SNR
≥52dB
Interface
Alarm
2 inputs, 2 outputs (max. 24 VDC, 1 A)
Audio
1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm)
RS-485
1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
On-board Storage
Built-in microSD/SDHC/SDXC slot, up to 256 GB
Communication Interface
1 RJ45 10M/100M/1000M Ethernet port
Power Output
12 VDC, max. 200 mA
Video Out
1Vp-p composite output (75 Ω/CVBS), only for adjustment
Event
Smart Event
Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Scene change detection, audio exception detection, defocus detection
Deep Learning Function
Face Capture
Face detection performance: detects up to 30 faces at the same time. Face position: supports swing left and right from -60° to 60°, tilt up and down from -30°to 30°. Uploads face with background and closed-up face pictures.
Face Recognition
Detects, captures and selects best human face pictures; Recognizes face identity via face modeling, grading and comparing to those in face library; Up to 10 face libraries and each library is configurable, each library is up to 30000 faces, up to 90000 faces in total; Face library encryption: the camera chip has a hardware encryption module to protect data.
Intelligent (Traditional Algorithm)
Basic Event
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error, video quality diagnosis)
Face Detection
No
General
Linkage Method
Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email, HTTPS Trigger notification: HTTP, ISAPI, alarm output, Email, HTTPS
Online Upgrade
Yes
Dual Backup
No
Firmware Version
5.5.86
Web Client Language
32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function
Password protection, privacy mask, anti-flicker, heart, mirror, pixel counter
Software Reset
Yes
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Power Supply
12 VDC ±20%, reverse polarity protection; three-core terminal block; PoE (802.3at, type 2, class 4)
Power Consumption and Current
With extra load: 12 VDC, 1.42A, max. 17.0 W; PoE (802.3at, 42.5 V to 57 V), 0.45 A to 0.33 A, max. 19.2 W Without extra load: 12 VDC, 1.22 A, max. 14.6 W; PoE (802.3at, 42.5 V to 57 V), 0.40 A to 0.29 A, max. 16.8 W "with extra load" means that an extra device is connected to and powered by the camera.
Power Interface
Three-core terminal block
Material
Metal
Camera Dimension
Camera: Φ144 × 347 mm (Φ5.7″ × 13.7″)
Package Dimension
With package: 405×190×180 mm (15.9″ × 7.5″ × 7.1″)
Camera Weight
Camera: approx. 1940 g (4.3 lb.)
With Package Weight
With Package: approx. 3050 g (6.7 lb.)
Approval
Class
Class B
Protection
Ingress protection: IK10 (IEC 62262:2002), IP67(IEC 60529-2013)
EMC
FCC ID (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)2006
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Kamera
  • Image Sensor1/1.8ʺ Progressive Scan CMOS
  • Min. IlluminationColor: 0.0045 Lux @ (F1.8, AGC ON), 0 Lux with IR
  • Shutter Speed1 s to 1/100,000 s
  • Slow ShutterYes
  • Wide Dynamic Range140dB
  • Day & NightICR Cut
  • Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
  • FocusAuto, semi-auto, manual
  • Lens Type & FOVMotorized lens, 8 to 32 mm Horizontal FOV 38° to 15°, vertical FOV 21° to 9°, diagonal FOV 43° to 18°
  • ApertureF1.8 to F2.0
  • Lens MountIntegrated
  • Blue Glass ModuleYes
Illuminator
  • IR RangeUp to 100 m
  • Wavelength850 nm
Video
  • Max. Resolution2560 × 1440
  • Main Stream50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
  • Sub Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Fourth Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
  • Fifth Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream/Fourth Stream/Fifth Stream: H.265/H.264/MJPEG Third stream: H.265/H.264
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • H.264+Main stream supports
  • H.265+Main stream supports
  • Stream Type5 defined streams
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)4 fixed regions and dynamic face tracking for each stream
Audio
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)
Network
  • Simultaneous Live ViewUp to 20 channels
  • APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, TLS 1.2
  • Network StoragemicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR ; Together with ordinary memory card, memory card encryption is supported; Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web BrowserPlug-in required live view: IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11 Plug-in free live view: Chrome45.0+, Firefox52.0+
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format.
  • Image EnhancementBLC, HLC, Defog, EIS, Lens Distortion, 3D DNR
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, white balance adjustable by client software or web browser.
  • SNR≥52dB
Interface
  • Alarm 2 inputs, 2 outputs (max. 24 VDC, 1 A)
  • Audio1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm)
  • RS-4851 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • On-board StorageBuilt-in microSD/SDHC/SDXC slot, up to 256 GB
  • Communication Interface1 RJ45 10M/100M/1000M Ethernet port
  • Power Output12 VDC, max. 200 mA
  • Video Out1Vp-p composite output (75 Ω/CVBS), only for adjustment
Event
  • Smart EventIntrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Scene change detection, audio exception detection, defocus detection
Deep Learning Function
  • Face CaptureFace detection performance: detects up to 30 faces at the same time. Face position: supports swing left and right from -60° to 60°, tilt up and down from -30°to 30°. Uploads face with background and closed-up face pictures.
  • Face RecognitionDetects, captures and selects best human face pictures; Recognizes face identity via face modeling, grading and comparing to those in face library; Up to 10 face libraries and each library is configurable, each library is up to 30000 faces, up to 90000 faces in total; Face library encryption: the camera chip has a hardware encryption module to protect data.
Intelligent (Traditional Algorithm)
  • Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error, video quality diagnosis)
  • Face DetectionNo
General
  • Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email, HTTPS Trigger notification: HTTP, ISAPI, alarm output, Email, HTTPS
  • Online UpgradeYes
  • Dual BackupNo
  • Firmware Version5.5.86
  • Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • General FunctionPassword protection, privacy mask, anti-flicker, heart, mirror, pixel counter
  • Software ResetYes
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
  • Power Supply12 VDC ±20%, reverse polarity protection; three-core terminal block; PoE (802.3at, type 2, class 4)
  • Power Consumption and CurrentWith extra load: 12 VDC, 1.42A, max. 17.0 W; PoE (802.3at, 42.5 V to 57 V), 0.45 A to 0.33 A, max. 19.2 W Without extra load: 12 VDC, 1.22 A, max. 14.6 W; PoE (802.3at, 42.5 V to 57 V), 0.40 A to 0.29 A, max. 16.8 W "with extra load" means that an extra device is connected to and powered by the camera.
  • Power InterfaceThree-core terminal block
  • MaterialMetal
  • Camera DimensionCamera: Φ144 × 347 mm (Φ5.7″ × 13.7″)
  • Package DimensionWith package: 405×190×180 mm (15.9″ × 7.5″ × 7.1″)
  • Camera WeightCamera: approx. 1940 g (4.3 lb.)
  • With Package WeightWith Package: approx. 3050 g (6.7 lb.)
Approval
  • ClassClass B
  • ProtectionIngress protection: IK10 (IEC 62262:2002), IP67(IEC 60529-2013)
  • EMCFCC ID (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)2006
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

This website uses cookies to store info on your device. Cookies help our website work normally and show us how we can improve your user experience.
By continuing to browse the site you are agreeing to our cookie policy and privacy policy.

Manage Accept
Accept Manage
Bize Ulaşın
Satış Talepleri
Teknik Destek Talepleri
Diğer Talepler
Çevrimiçi Hizmet
E-postalara Abone Olun
Bize Ulaşın

Get a better browsing experience

You are using a web browser we don’t support. Please try one of the following options to have a better experience of our web content.
