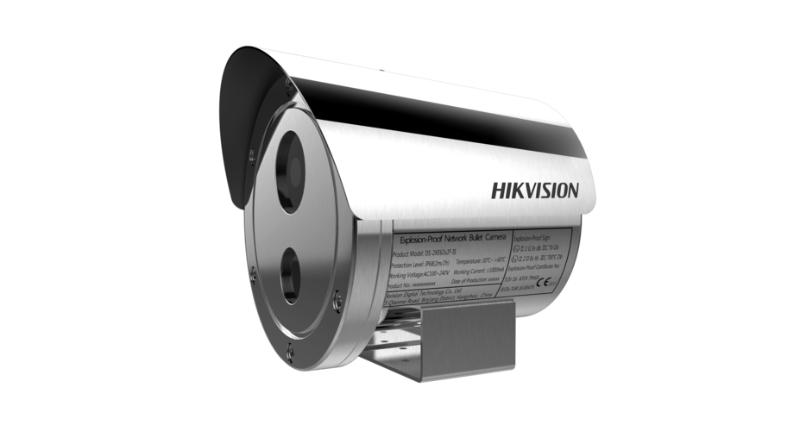

EXIR Fixed Bullet Explosion-Proof Network Camera

Explosion-proof design: the camera has passed international ATEX & IECEx certifications, and can be used in gas and dust hazardous scenarios
316L stainless steel enclosure, protecting the camera from damage caused by sparks or corrosive materials
IP68/IK10 water resistant and vandal proof, preventing water ingress for outdoor use
H.265+/H.265/H.264+/H.264 encoding: efficient compression technology saves storage space and reduces bandwidth requirements
AC 100 V to 240 V wide range power supply: easy to deploy cables and safer compared to a power adapter solution

View Less

Available models:

DS-2XE6242F-IS(4mm)

DS-2XE6242F-IS(8mm)

DS-2XE6242F-IS

EOL

Specification
Resources
Accessories

Kamera
Image Sensor1/3" Progressive Scan CMOS
Max. Resolution2560 × 1440
Min. Illumination0.01 Lux @ (F1.2, AGC ON) , 0 Lux with IR on
Shutter Time1 s to 1/100,000 s
Day & NightIR cut filter

Lens
Focal Length & FOV4 mm, horizontal field of view: 83° 6 mm, horizontal field of view: 55.4° 8 mm, horizontal field of view: 38.5° 12 mm, horizontal field of view: 24.7°
Lens MountM12

Illuminator
Supplement Light Range30 m

Video
Main Stream50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 24 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) 60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
Third Stream50 Hz: 1 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240) 60 Hz: 1 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 ×240)
Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline profile/main profile/high profile
H.265 TypeMain profile
Region of Interest (ROI)Support 4 customized region for each stream, and face dynamic tracking
Target CroppingYes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP
APIONVIF (PROFILE S, PROFILE G), ISAPI
Network StorageSupport microSD/SDHC/SDXC card (up to 128 GB) local storage and NAS (NFS,SMB/CIFS), ANR

Image SettingsSupport rotate mode. Saturation, brightness, contrast, etc., adjustable by client software or web browser
Day/Night SwitchAuto/Schedule/Triggered by Alarm In
Wide Dynamic Range (WDR)120 dB
Image EnhancementBLC/3D DNR
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 GB *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.
Alarm 2 alarm inputs, 2 alarm outputs

Event
Basic Event Motion detection, tampering alarm, exception (HDD full, HDD error, network disconnected, IP address conflicted, illegal login)
Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection Face detection, scene change detection, defocus detection

General
PowerAC 100 V to 240 V, 0.1A, Max. 7W, terminal block PoE (802.3af, class 3), 0.2A
MaterialDS-2XE6242-IS: Stainless steel 304 DS-2XE6242-IS/316L: Stainless steel 316L
Dimension221.3 × 174 × 172 mm (8.71"× 6.85" × 6.77")
Package Dimension435 × 255 × 285 mm (17.1" × 10" × 11.2")
Weight7.4 kg (3.4 lb.)
Startup and Operating Conditions-30°C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
General FunctionMirror, anti-flicker, heartbeat, watermark, password protection, privacy mask

Approval
EMCFCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B) CE: CE-EMC(EN 50130-4:2011+A1:2014,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013) RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015 IC: IC-VoC(ICES-003 Issue 7:2020) KC: KN 301489-1,KN 301489-17,RRA NOTICE 2017-14(2017.12.05),RRA NOTICE 2017-19(2017.12.28)
SafetyUL: UL 60950-1:2014,CAN/CSA C22.2 No. 60950-1-07:2014 CB: IEC 60950-1
EnvironmentCE: CE-RoHS(RoHS Directive 2011/65/EU+2015/863) Reach SVHC: Regulation (EC) No 1907/2006
ProtectionIP68/IK10 water resistant and vandal proof
Explosion-Proof ProtectionATEX: II 2 G D Ex db IIC T6 Gb/Ex tb IIIC T80°C Db IP68 IECEx: Ex db IIC T6 Gb/Ex tb IIIC T80°C Db IP68 For explosive gas atmospheres, the maximum surface temperature is 85°C; For flammable dust atmospheres, the maximum surface temperature is 80°C; IIC: for explosive gas atmospheres other than mines susceptible to firedamp; For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
