EOL

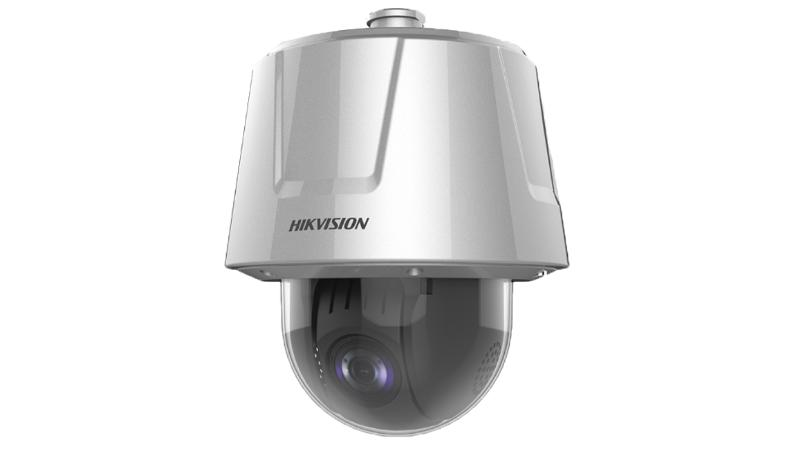

6-inch 36x Anti-corrosion Network Speed Dome

  • 316L stainless steel enclosure, protecting cameras to be used in corrosive environments, providing reliability and longevity compared to standard cameras
  • A built-in heater allows for start-up in ultra-low temperatures to -40℃
  • IP67/IK10: water resistant and vandal proof, preventing water ingress for outdoor use
  • DarkFighter technology enables the capture of high quality color images in even the dimmest lighting environments
  • PTZ: pan-tilt-zoom ability allows the camera to move to view zones of interest
  • Up to 36X zoom: zoom to examine subjects of interest within expansive scenes
View Less
View more

Available models:

DS-2DT6236-AELY(B)

Specification

  • Lens
  • FOV58.7° to 2.0° (Wide-Tele)
  • Zoom SpeedApprox. 3.3 s (Optical Wide-Tele)
  • Working Distance10 mm to 1500 mm (wide-tele)
  • Aperture RangeF1.5 to F3.4
  • Focal Length5.7 to 205.2 mm, 36× optical zoom
  • Image
  • Sub-Stream50Hz: 25fps (704×576, 352×288, 176×144); 60Hz: 30fps(704×480, 352×240, 176×120)
  • Max. Resolution1920 × 1080
  • Main Stream50Hz: 25fps (1920×1080, 1280×960, 1280×720); 60Hz: 30fps(1920×1080, 1280×960, 1280×720)
  • Third Stream50Hz: 25fps (1920×1080, 1280×960, 1280×720, 704×576, 352×288, 176×144) 60Hz: 30fps (1920×1080, 1280×960, 1280×720, 704×480, 352×240, 176×120)
  • Compression Standard
  • SVCYes
  • Camera Module
  • Image Sensor1/1.8" progressive scan CMOS
  • Min. IlluminationColor: 0.002 Lux @(F1.5, AGC ON),B/W: 0.0002 Lux @(F1.5, AGC ON)
  • White BalanceAuto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
  • Shutter Time1/1 s to 1/30,000 s
  • Day & NightIR Cut Filter
  • Digital Zoom16×
  • Privacy Mask24 programmable privacy masks; optional multiple colors and mosaics
  • Focus ModeAuto/Semi-automatic/Manual
  • WDR120 dB
  • Rapid FocusNo
  • PTZ
  • Movement Range (Pan)360° endless
  • Pan SpeedConfigurable, from 0.1°/s to 300°/s, preset speed: 540°/s
  • Movement Range (Tilt)From -10° to 90°
  • Tilt SpeedConfigurable, from 0.1°/s to 240°/s, Preset Speed: 400°/s
  • Proportional ZoomYes
  • Presets300
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 patterns, with the recording time not less than 10 minutes per pattern
  • Power-off MemoryYes
  • Park ActionPreset/Patrol/Pattern/Auto scan/Tilt scan/Random scan/Frame scan/Panorama scan
  • Scheduled TaskPreset/Patrol/Pattern/Auto scan/Tilt scan/Random scan/Frame scan/Panorama scan/Dome reboot/Dome adjust/Aux output

Specification

Specification
Lens
  • FOV58.7° to 2.0° (Wide-Tele)
  • Zoom SpeedApprox. 3.3 s (Optical Wide-Tele)
  • Working Distance10 mm to 1500 mm (wide-tele)
  • Aperture RangeF1.5 to F3.4
  • Focal Length5.7 to 205.2 mm, 36× optical zoom
  • Sub-Stream50Hz: 25fps (704×576, 352×288, 176×144); 60Hz: 30fps(704×480, 352×240, 176×120)
  • Max. Resolution1920 × 1080
  • Main Stream50Hz: 25fps (1920×1080, 1280×960, 1280×720); 60Hz: 30fps(1920×1080, 1280×960, 1280×720)
  • Third Stream50Hz: 25fps (1920×1080, 1280×960, 1280×720, 704×576, 352×288, 176×144) 60Hz: 30fps (1920×1080, 1280×960, 1280×720, 704×480, 352×240, 176×120)
Compression Standard
  • SVCYes
Camera Module
  • Image Sensor1/1.8" progressive scan CMOS
  • Min. IlluminationColor: 0.002 Lux @(F1.5, AGC ON),B/W: 0.0002 Lux @(F1.5, AGC ON)
  • White BalanceAuto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
  • Shutter Time1/1 s to 1/30,000 s
  • Day & NightIR Cut Filter
  • Digital Zoom16×
  • Privacy Mask24 programmable privacy masks; optional multiple colors and mosaics
  • Focus ModeAuto/Semi-automatic/Manual
  • WDR120 dB
  • Rapid FocusNo
PTZ
  • Movement Range (Pan)360° endless
  • Pan SpeedConfigurable, from 0.1°/s to 300°/s, preset speed: 540°/s
  • Movement Range (Tilt)From -10° to 90°
  • Tilt SpeedConfigurable, from 0.1°/s to 240°/s, Preset Speed: 400°/s
  • Proportional ZoomYes
  • Presets300
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 patterns, with the recording time not less than 10 minutes per pattern
  • Power-off MemoryYes
  • Park ActionPreset/Patrol/Pattern/Auto scan/Tilt scan/Random scan/Frame scan/Panorama scan
  • Scheduled TaskPreset/Patrol/Pattern/Auto scan/Tilt scan/Random scan/Frame scan/Panorama scan/Dome reboot/Dome adjust/Aux output
For better user experience, we highly recommend you to update your device to the latest firmware asap.

Available models:

DS-2DT6236-AELY(B)

Specification

  • Lens
  • FOV58.7° to 2.0° (Wide-Tele)
  • Zoom SpeedApprox. 3.3 s (Optical Wide-Tele)
  • Working Distance10 mm to 1500 mm (wide-tele)
  • Aperture RangeF1.5 to F3.4
  • Focal Length5.7 to 205.2 mm, 36× optical zoom
  • Image
  • Sub-Stream50Hz: 25fps (704×576, 352×288, 176×144); 60Hz: 30fps(704×480, 352×240, 176×120)
  • Max. Resolution1920 × 1080
  • Main Stream50Hz: 25fps (1920×1080, 1280×960, 1280×720); 60Hz: 30fps(1920×1080, 1280×960, 1280×720)
  • Third Stream50Hz: 25fps (1920×1080, 1280×960, 1280×720, 704×576, 352×288, 176×144) 60Hz: 30fps (1920×1080, 1280×960, 1280×720, 704×480, 352×240, 176×120)
  • Compression Standard
  • SVCYes
  • Camera Module
  • Image Sensor1/1.8" progressive scan CMOS
  • Min. IlluminationColor: 0.002 Lux @(F1.5, AGC ON),B/W: 0.0002 Lux @(F1.5, AGC ON)
  • White BalanceAuto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
  • Shutter Time1/1 s to 1/30,000 s
  • Day & NightIR Cut Filter
  • Digital Zoom16×
  • Privacy Mask24 programmable privacy masks; optional multiple colors and mosaics
  • Focus ModeAuto/Semi-automatic/Manual
  • WDR120 dB
  • Rapid FocusNo
  • PTZ
  • Movement Range (Pan)360° endless
  • Pan SpeedConfigurable, from 0.1°/s to 300°/s, preset speed: 540°/s
  • Movement Range (Tilt)From -10° to 90°
  • Tilt SpeedConfigurable, from 0.1°/s to 240°/s, Preset Speed: 400°/s
  • Proportional ZoomYes
  • Presets300
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 patterns, with the recording time not less than 10 minutes per pattern
  • Power-off MemoryYes
  • Park ActionPreset/Patrol/Pattern/Auto scan/Tilt scan/Random scan/Frame scan/Panorama scan
  • Scheduled TaskPreset/Patrol/Pattern/Auto scan/Tilt scan/Random scan/Frame scan/Panorama scan/Dome reboot/Dome adjust/Aux output

Specification

Specification
Lens
  • FOV58.7° to 2.0° (Wide-Tele)
  • Zoom SpeedApprox. 3.3 s (Optical Wide-Tele)
  • Working Distance10 mm to 1500 mm (wide-tele)
  • Aperture RangeF1.5 to F3.4
  • Focal Length5.7 to 205.2 mm, 36× optical zoom
  • Sub-Stream50Hz: 25fps (704×576, 352×288, 176×144); 60Hz: 30fps(704×480, 352×240, 176×120)
  • Max. Resolution1920 × 1080
  • Main Stream50Hz: 25fps (1920×1080, 1280×960, 1280×720); 60Hz: 30fps(1920×1080, 1280×960, 1280×720)
  • Third Stream50Hz: 25fps (1920×1080, 1280×960, 1280×720, 704×576, 352×288, 176×144) 60Hz: 30fps (1920×1080, 1280×960, 1280×720, 704×480, 352×240, 176×120)
Compression Standard
  • SVCYes
Camera Module
  • Image Sensor1/1.8" progressive scan CMOS
  • Min. IlluminationColor: 0.002 Lux @(F1.5, AGC ON),B/W: 0.0002 Lux @(F1.5, AGC ON)
  • White BalanceAuto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
  • Shutter Time1/1 s to 1/30,000 s
  • Day & NightIR Cut Filter
  • Digital Zoom16×
  • Privacy Mask24 programmable privacy masks; optional multiple colors and mosaics
  • Focus ModeAuto/Semi-automatic/Manual
  • WDR120 dB
  • Rapid FocusNo
PTZ
  • Movement Range (Pan)360° endless
  • Pan SpeedConfigurable, from 0.1°/s to 300°/s, preset speed: 540°/s
  • Movement Range (Tilt)From -10° to 90°
  • Tilt SpeedConfigurable, from 0.1°/s to 240°/s, Preset Speed: 400°/s
  • Proportional ZoomYes
  • Presets300
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 patterns, with the recording time not less than 10 minutes per pattern
  • Power-off MemoryYes
  • Park ActionPreset/Patrol/Pattern/Auto scan/Tilt scan/Random scan/Frame scan/Panorama scan
  • Scheduled TaskPreset/Patrol/Pattern/Auto scan/Tilt scan/Random scan/Frame scan/Panorama scan/Dome reboot/Dome adjust/Aux output
For better user experience, we highly recommend you to update your device to the latest firmware asap.
